About this item

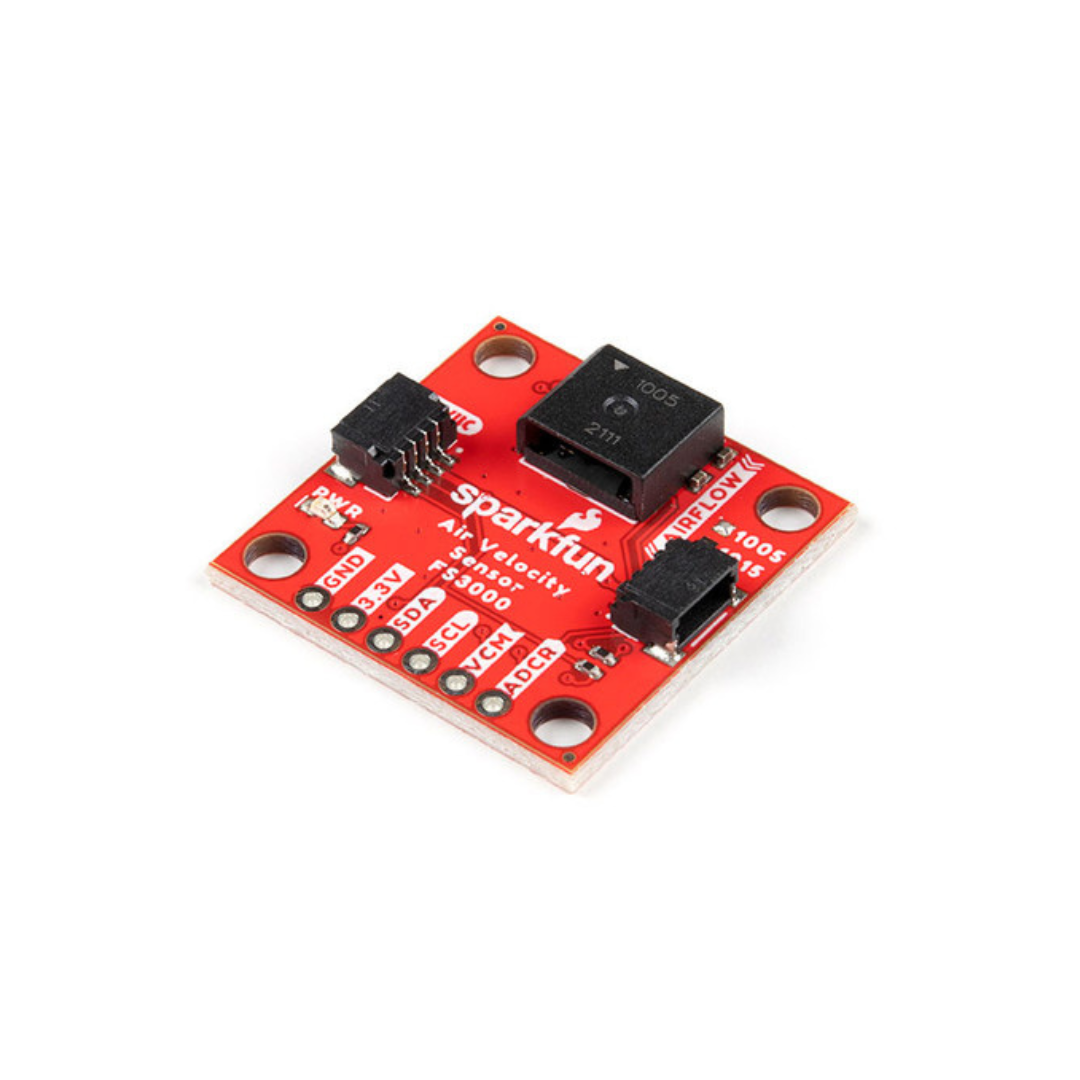

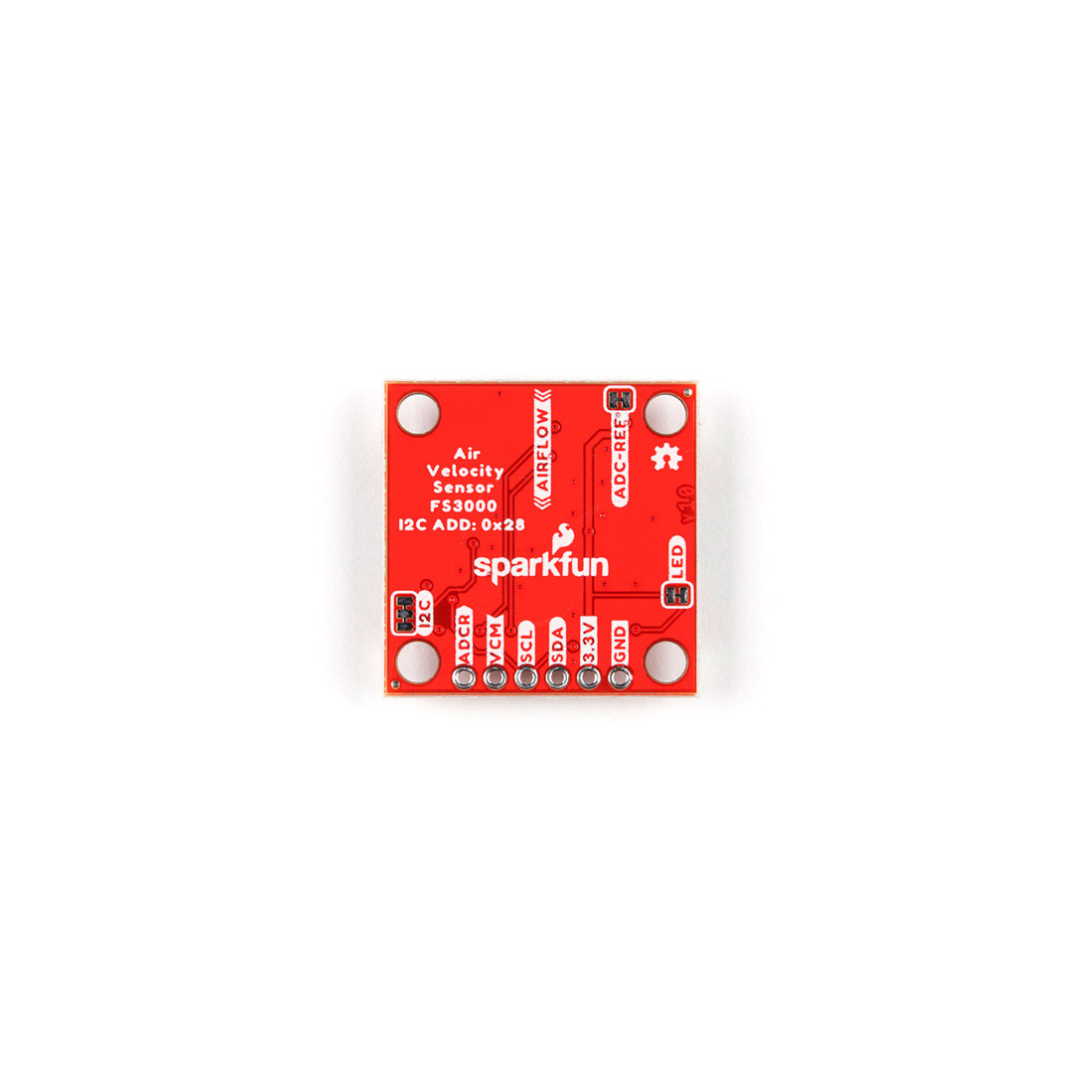

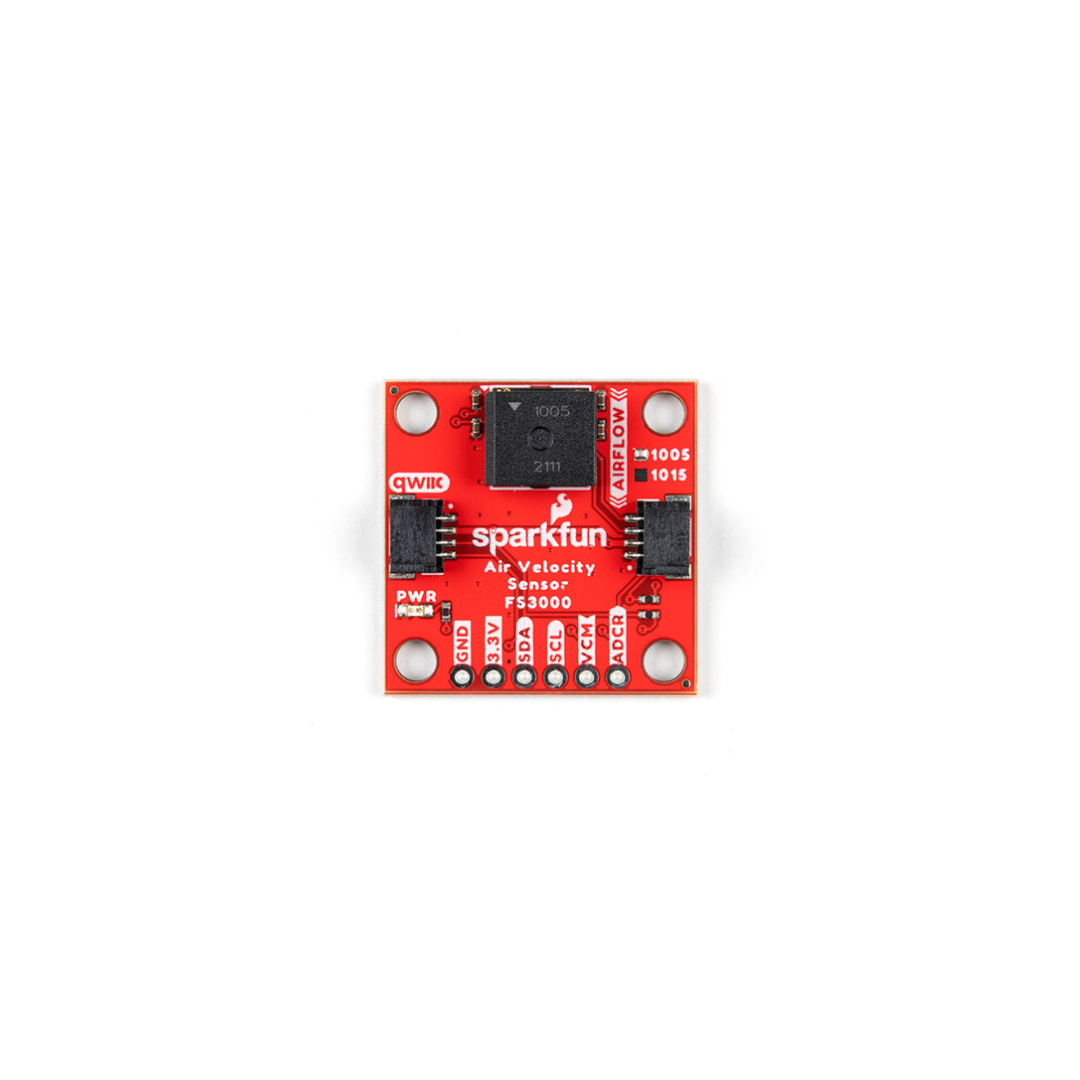

The SparkFun FS3000-1005 Air Velocity Sensor Breakout is a compact and precise device designed to measure airspeed in various applications. Utilizing Renesas' FS3000-1005 MEMS thermopile-based sensor, it offers a measurement range of 0 to 7.23 m/s (0 to 16.17 mph) with a 12-bit digital output and 5% accuracy. The sensor operates at an input voltage of 2.7–3.3V and draws an average current of 10mA. It features two Qwiic connectors for easy I²C integration and includes jumpers for LED, I²C, and ADC-REF control. Ideal for applications such as HVAC systems, weather stations, and robotics, this breakout board simplifies airflow measurement tasks.
