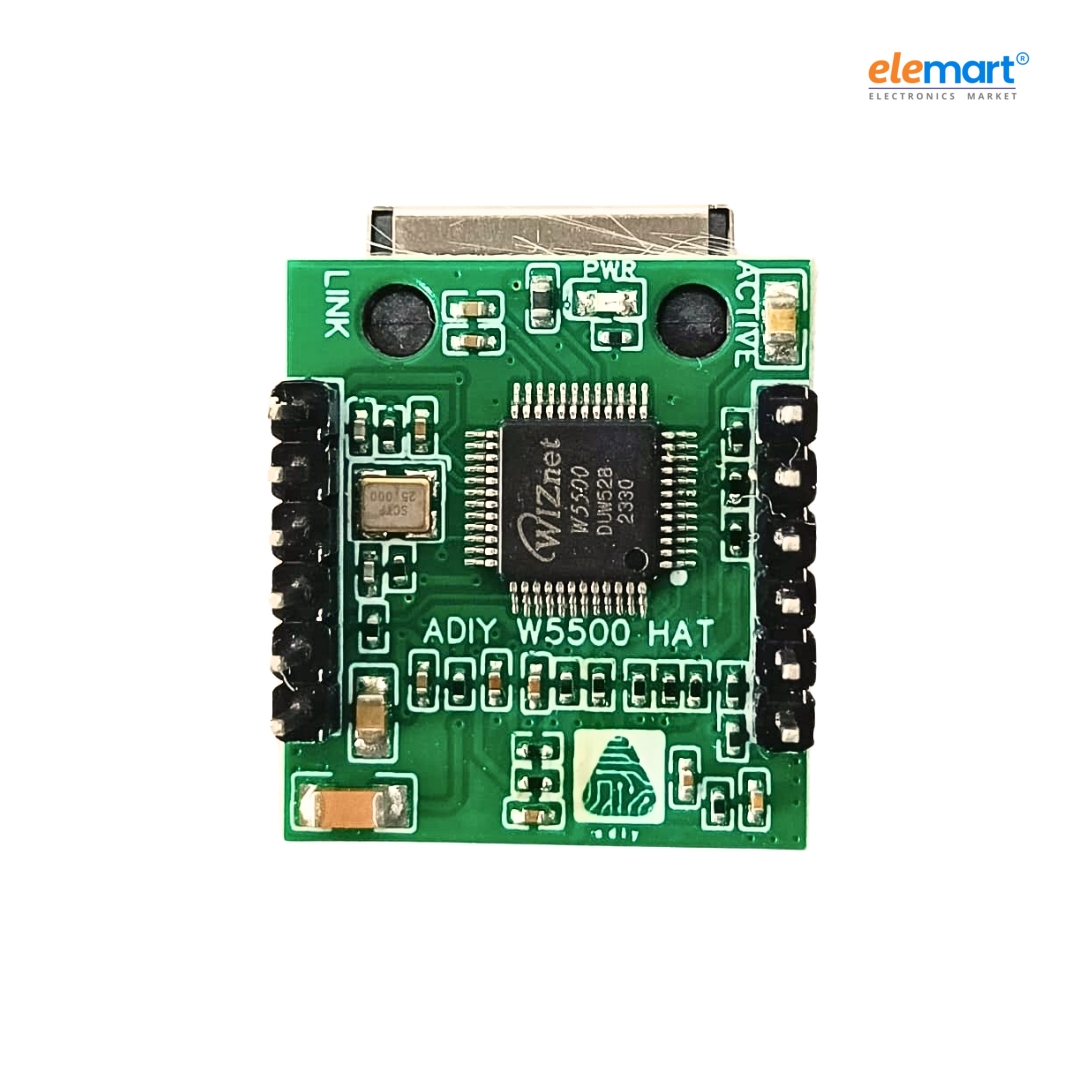

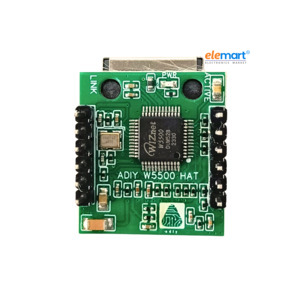

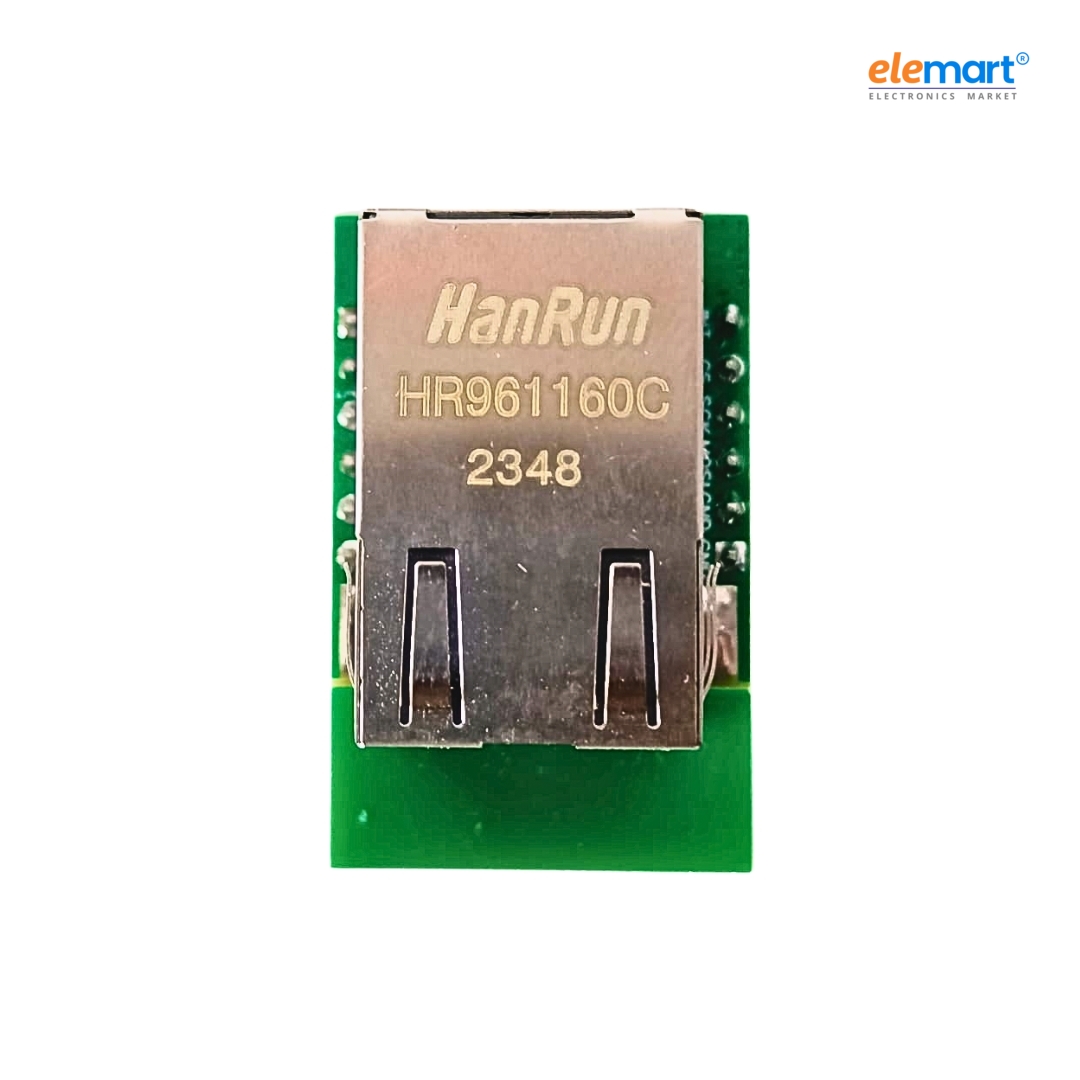

ADIY W5500 TCP / IP SPI to LAN Ethernet Interface Converter
Brand: Generic
Features
Built in hardware TCP IP stack processing
Supports high speed SPI communication up to 80MHz
Provides stable wired Ethernet network connectivity solution
Supports multiple protocols including TCP UDP ICMP
Integrated PHY enables direct Ethernet cable connection
Internal memory buffers improve data transmission efficiency
Supports up to eight simultaneous socket connections
Low power consumption suitable for embedded applications
₹449 (Incl. of all taxes)
₹368.18
+ ₹80.82 GSTStock: Available
Quantity based pricing table
| Select | Min Qty | Max Qty | Unit Price |
|---|---|---|---|
| 1 | 10 | ₹449 | |
| 11 | 20 | ₹429 | |
| 21 | 30 | ₹419 | |
| 31 | 50 | ₹399 |
About this item
The W5500 TCP/IP SPI to LAN Ethernet Interface Converter is a compact networking module that enables microcontrollers to connect directly to wired Ethernet networks. It is based on the W5500 chip, which has a built-in hardware TCP/IP stack, allowing it to handle network communication internally without heavy processing from the main controller.
Specifications
| Brand | Generic |
|---|---|
| Model | W5500 Ethernet Module |
| Controller IC | W5500 TCP/IP Embedded Controller |
| Operating Voltage | 3.3V DC (<200mA) |
| SPI Speed | Up to 80 MHz |
| Ethernet Speed | 10/100 Mbps |
| PCB Size | Approx. 23 × 25 mm |
