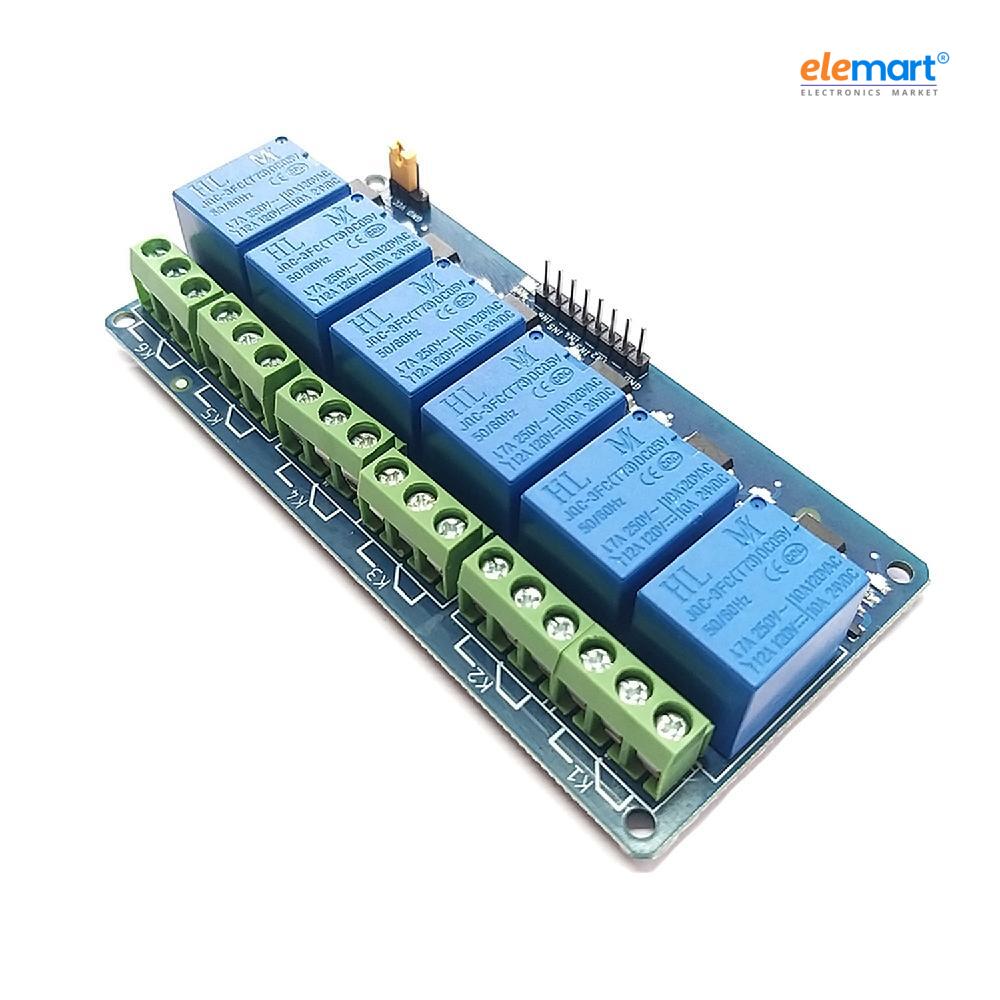

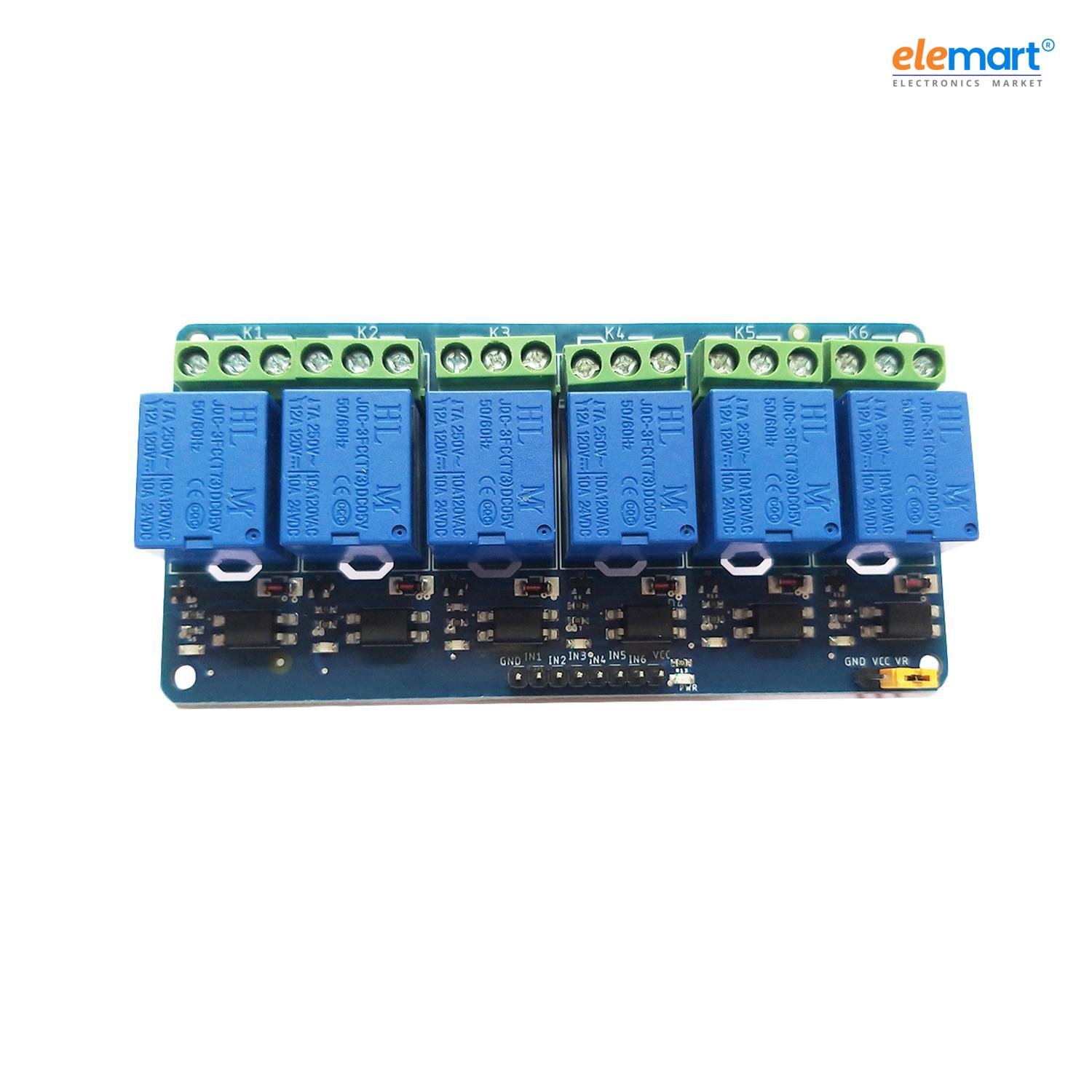

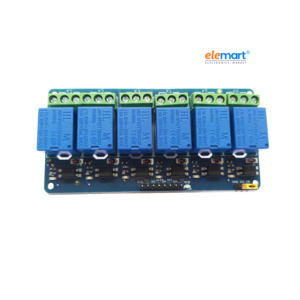

6 Channel Relay Board 5V
Brand: Generic
Features
6-way relay output module contact capacity is 10A 250V
Input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective
Using single-chip design, reliable performance, strong anti-interference, not false triggering and superior performance
The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated
Each relay has an action indicator light. With 4 fixed bolt holes, easy installation
₹349 (Incl. of all taxes)
₹286.18
+ ₹62.82 GSTStock: Available
Quantity based pricing table
| Select | Min Qty | Max Qty | Unit Price |
|---|---|---|---|
| 1 | 10 | ₹349 | |
| 11 | 20 | ₹339 | |
| 21 | 30 | ₹329 | |
| 31 | 50 | ₹309 |
About this item
6 Channel Relay Board 5V - It is a 5V 6 Channel Low-Level Relay Module with Light Coupling. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move.
Specifications
| Operating Voltage | 3V ~ 5V |
|---|---|
| Supply Current | 20mA |
| Trigger Voltage | 5V |
| Size | 104mm*53mm*17mm (L*W*H) |
| Operating Temperature | -40°C to 85°C |
