LPS35HW Adapter Board DIL24 Socket Pressure Sensor Evaluation Board
Brand: STMicroelectronics
Features
₹951.64 (Incl. of all taxes)
₹951.64
+ ₹951.64 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

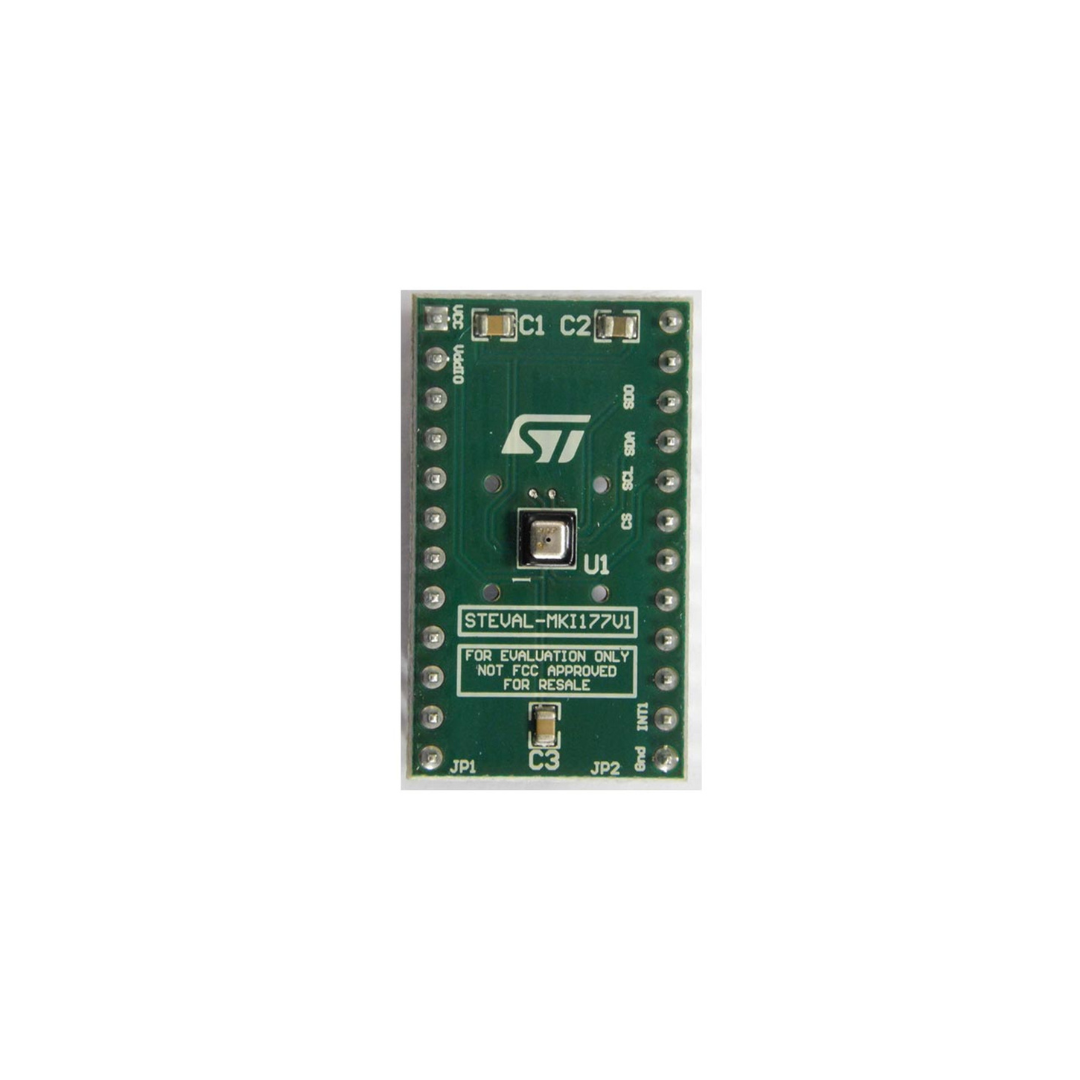

The LPS35HW Adapter Board (STEVAL-MKI177V1) from STMicroelectronics is designed to facilitate the evaluation of MEMS pressure sensors in the LPS35HW product family. This board provides a complete LPS35HW pinout for a standard DIL24 socket and is compatible with the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards. It comes equipped with the necessary decoupling capacitors on the VDD power supply line, ensuring stable operation. The adapter supports both I2C and SPI communication interfaces and operates within a voltage range of 1.7V to 3.6V. It's an effective solution for fast system prototyping and device evaluation directly within the user's application.
Specifications
| Interface: | I2C, SPI |
|---|---|
| Voltage Supply: | 1.7V ~ 3.6V |
| Sensing Range: | 260 ~ 1260 hPa |
| Pressure Range: | 260–1260 hPa |
| Temperature Accuracy: | ±0.5°C |
