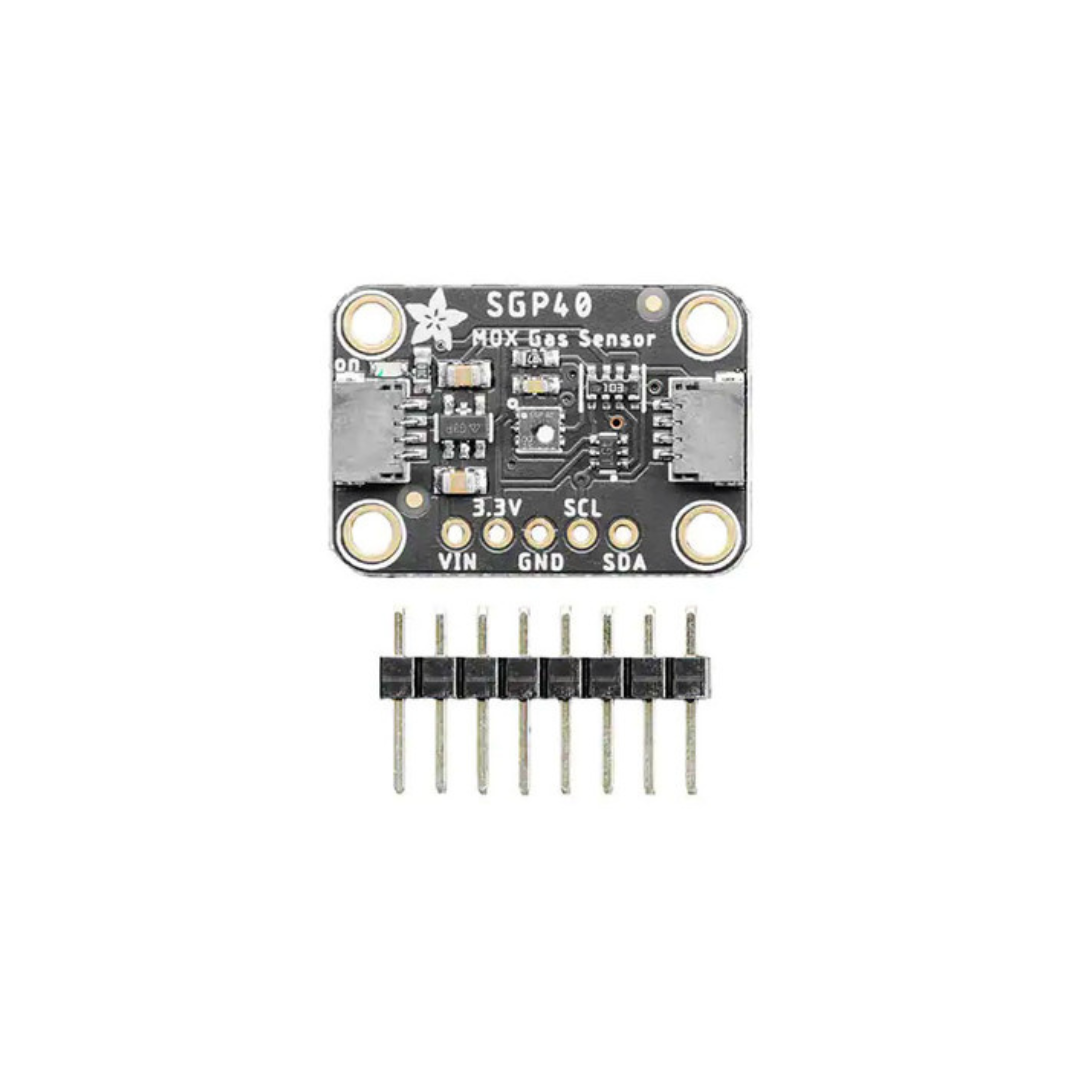

Adafruit SGP40 VOC Air Quality Sensor Breakout
Brand: Adafruit Industries
Features
₹1,839 (Incl. of all taxes)
₹1,839
+ ₹1,839 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The Adafruit SGP40 VOC Air Quality Sensor Breakout is a compact and efficient sensor designed for indoor air quality monitoring. Utilizing a metal-oxide (MOX) sensor, it detects a wide range of volatile organic compounds (VOCs) and hydrogen (H₂), providing a comprehensive air quality index ranging from 0 to 500. The sensor communicates via I²C at a fixed address of 0x59, operating within a voltage range of 3.3V to 5V. Its STEMMA QT/Qwiic connector ensures easy integration with various development boards. Additionally, the sensor supports humidity compensation for enhanced accuracy.
Specifications
| Sensor: | SGP40 by Sensirion |
|---|---|
| Interface: | I²C (address 0x59) |
| Voltage: | 3.3V to 5V |
| Form Factor: | STEMMA QT / Qwiic (1mm pitch) |
| VOC Concentration: | 0–1000 ppm |
