7Semi INA169 60V 5A Analog DC Current Sensor Breakout
Brand: 7semi
Features
₹1,362.82 (Incl. of all taxes)
₹2,778
51% Off
₹1,362.82
+ ₹1,362.82 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

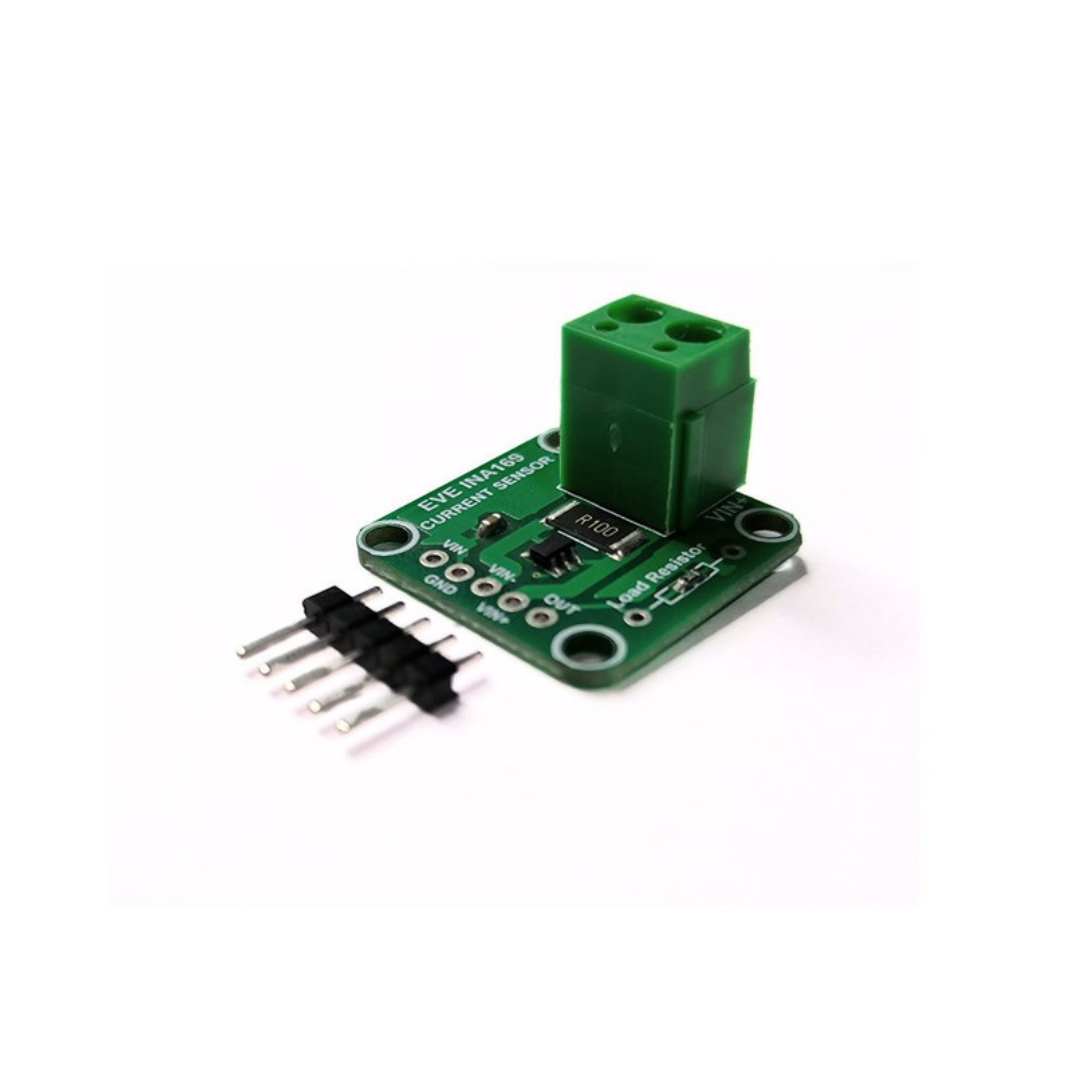

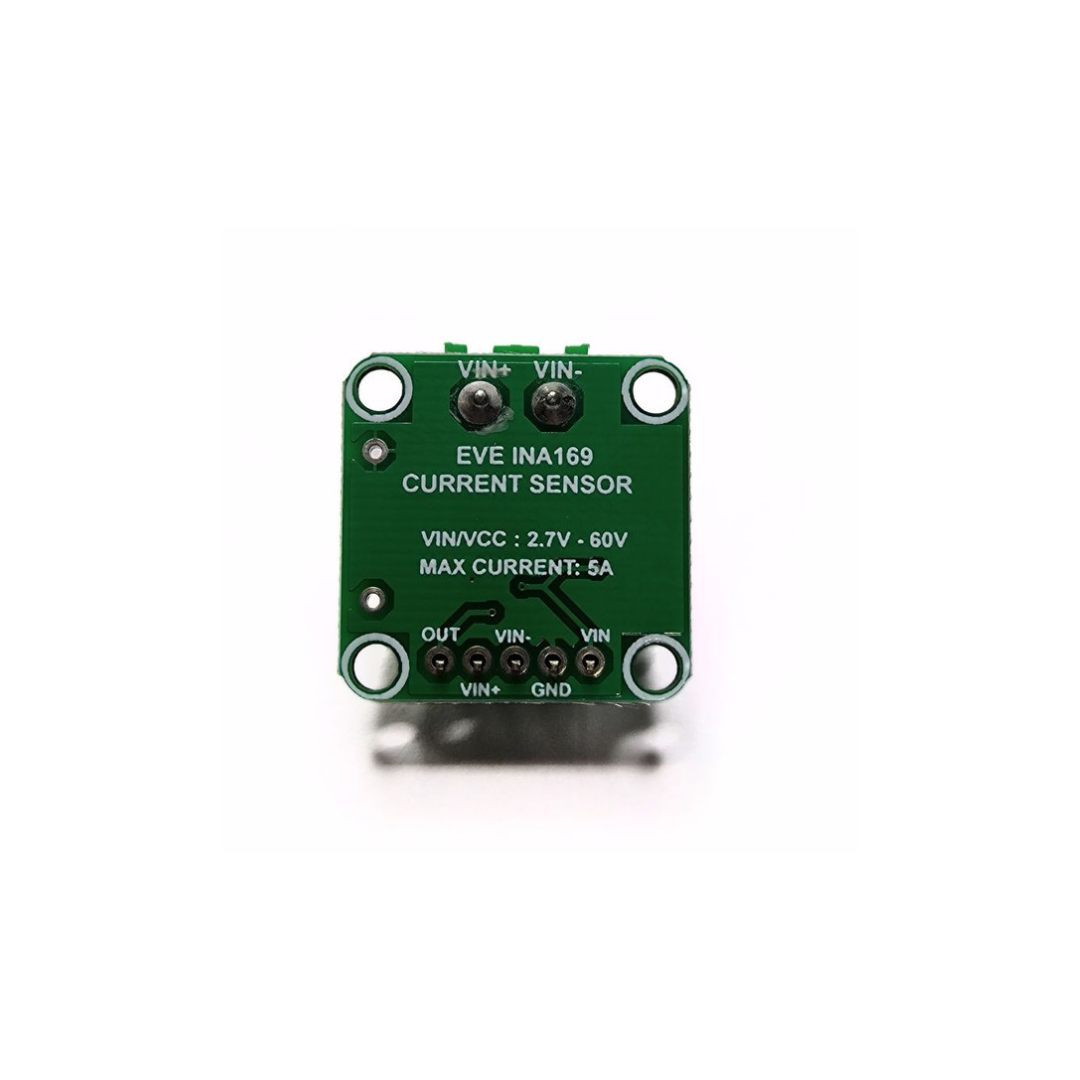

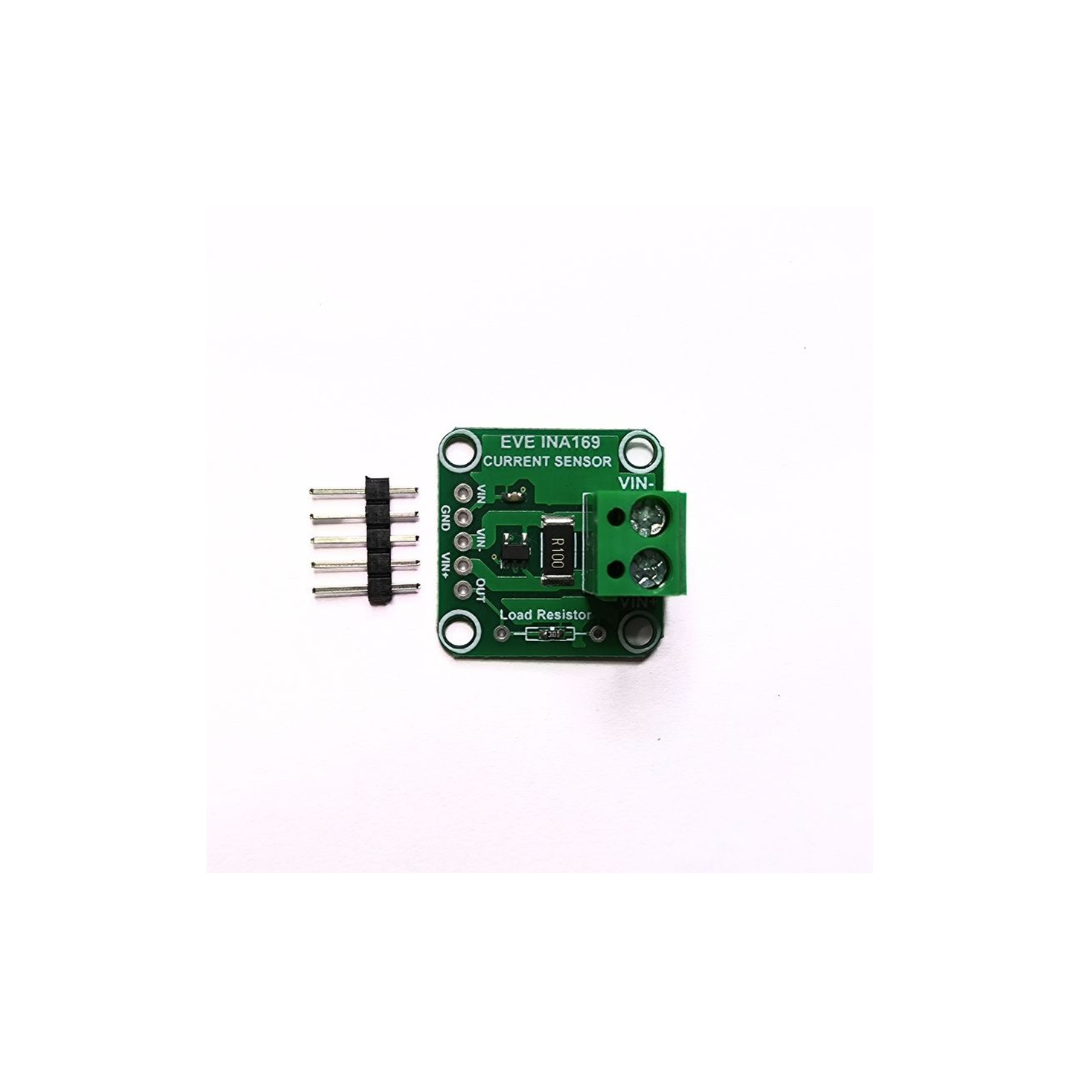

The 7Semi INA169 Analog DC Current Sensor Breakout is a precision module designed for high-side current measurement in DC circuits. Utilizing the INA169 chip, it supports input voltages from 2.7V to 60V and can measure currents up to 5A. The module features a 0.1Ω, 1% tolerance, 2W sense resistor, providing a voltage output of 1V per ampere, which can be adjusted by changing the onboard resistor. It offers a low quiescent current of 60µA, making it suitable for battery-powered applications. The breakout board includes a 5-pin header and a 3.5mm terminal block for easy integration into various projects.
Specifications
| Input Voltage Range: | 2.7V to 60V |
|---|---|
| Maximum Measurable Current: | 5A |
| Output Voltage Scaling: | 1V per Ampere (default) |
| Quiescent Current: | Approximately 60µA |
| Interface: | Analog output |
