HID Global

hid® pivclass® authentication module

0 Ratings

Special Price

USD 0

INR5500.00

71% off

Inclusive of all taxes

Stock: Available
Quantity:
Ships from elemart
Sold by davesh

About this item

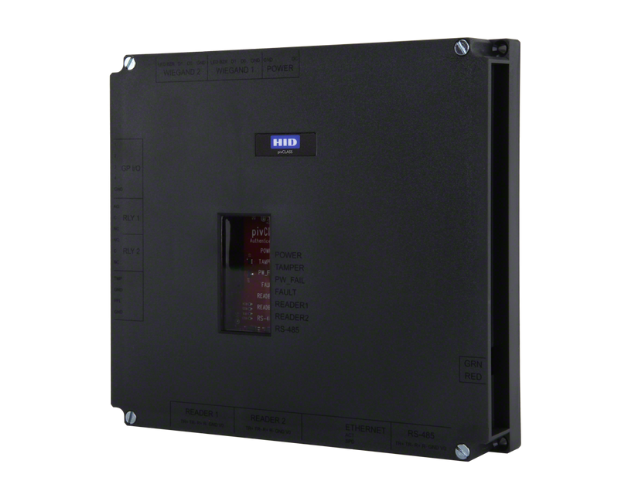

The HID PIVClass Authentication Module is a highly secure, customizable solution designed to enable Personal Identity Verification (PIV) compliance for government and enterprise environments. This module provides seamless integration with existing access control systems and supports advanced multi-factor authentication (MFA) using PIV credentials. It enhances security by enabling stronger, more reliable identity verification and access management, ensuring that only authorized personnel can access sensitive information or restricted areas. Ideal for agencies, organizations, and businesses needing to meet rigorous security standards, the HID PIVClass Authentication Module is easy to deploy, scalable, and built to support a wide range of applications.

Specifications

Dimensions Board - 6.7" x 6.05" (17 cm x 15.4 cm)Enclosure - 16" x 16" x 3.5" (18.6 cm x 16.8 cm)
Interface to Readers Number Channels - Supports 1 or 2 readers at 1 or 2 doorsCommunication - 2 RS-485 serial portsProtocols - CoreStreet Reader Protocol (CSRP), HID pivCLASS
Interface to PACS Controller Number Channels - Output for 1 or 2 readersCommunication - 2 Wiegand ports
Interface to PVS Management System Protocol - Ethernet TCP/IPSecurity - Optional 256-bit AES encrypted Ethernet TCP/IPInitial Configuration Security - Web interface enabled/disabled with DIP switch
Compliance & Certification PVS Management Station Interface - 256-bit AES encryptionCrypto Firmware - FIPS 140-2 Level 1 certifiedSafety - FCC, UL 294Module Warranty - 18 monthsOperationalMemory - 2GB SD flash memory card (standard)Number Cardholders - Up to 100,000Firmware - Centralized, automated management of PAM firmware updates is provided by pivCLASS Validation Server (PVS)Offline Operation - Functions normally if communication to the PVS Management Station is interruptedOperation Interface - Embedded browser-based interface for initial configuration, network settings and hardware options. Full PAM configuration and management via pivCLASS Validation Server's Management Station.
