About this item

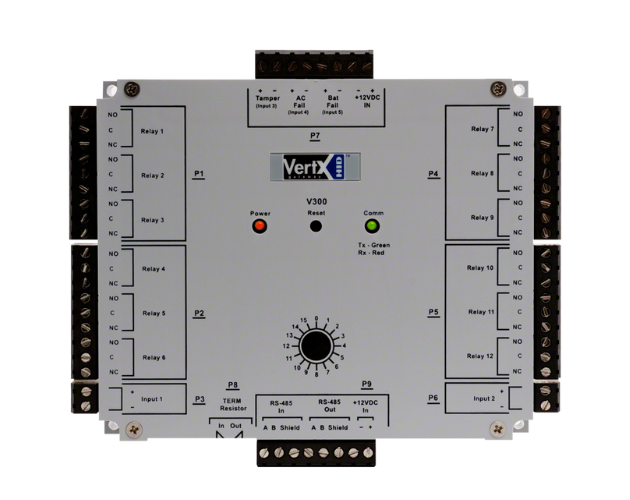

The HID V300 is a high-performance output control interface designed to work seamlessly with HID’s VertX® access control platform. Engineered to manage and control up to 12 general-purpose outputs, the V300 is ideal for activating alarms, triggering relays, managing lighting systems, and integrating with other building management functions. It provides precise control over auxiliary devices, enabling organizations to automate responses and enhance overall site security. With secure, encrypted communication and a compact, mountable design, the V300 simplifies installation and system expansion. Whether deployed in enterprise environments or high-security facilities, the V300 enhances flexibility and control across a wide range of access control applications.
Specifications
Dimensions | 5.8" W x 4.825" H x 1.275" D (147.32 mm x 122.55 mm x 32.38 mm) |
---|---|
Weight | 13.6 oz (.38 kg) |
Power Supply Requirements | 60 mA @ 9-18 VDC Recommended: supervised linear power supply with battery backup, input surge protection, and AC Fail and battery low contact outputs. Separate supervised, DC supply with battery back-up recommended for relay activated devices. |
Cable Distance | RS-485 - 4000 feet (1220 m) to host using Belden 3105A, 22 AWG twisted pair, shielded 100? cable.Output Circuits - 500 feet (150 m), 2-conductor, using ALPHA 1172C (22AWG) or Alpha 1897C (18AWG). Minimum wire gauge depends on cable length and current requirements. |
Certifications | UL 294 and UL 1076 Recognized Component for the USCSA 205 for CanadaFCC Class A VerificationEMC for Canada, EU (CE Mark), Australia (C-Tick Mark), New Zealand, JapanEN 50130-4 Access Control Systems Immunity for the EU (CE Mark) |
