About this item

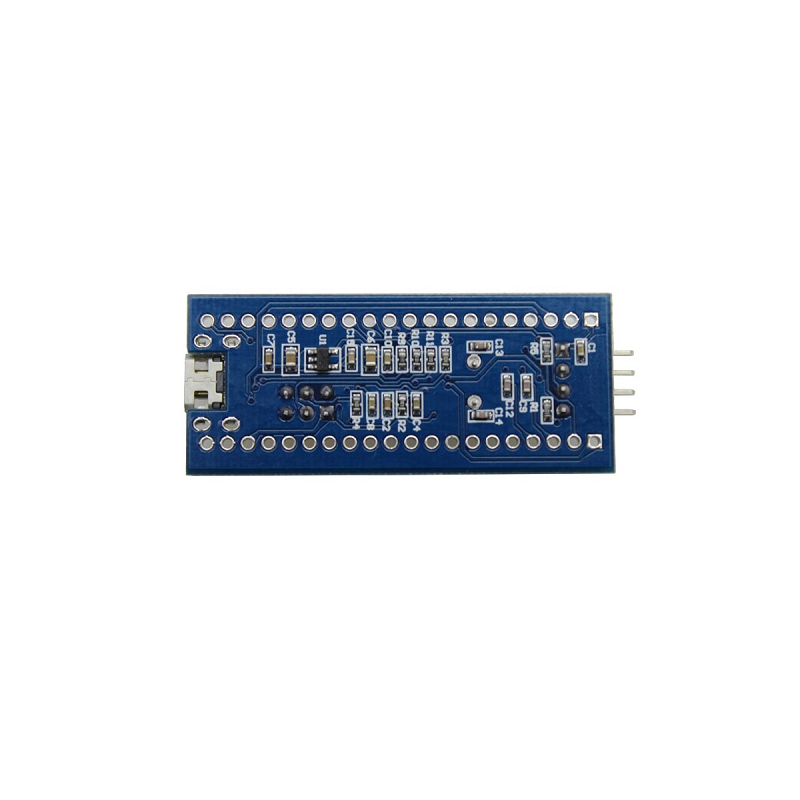

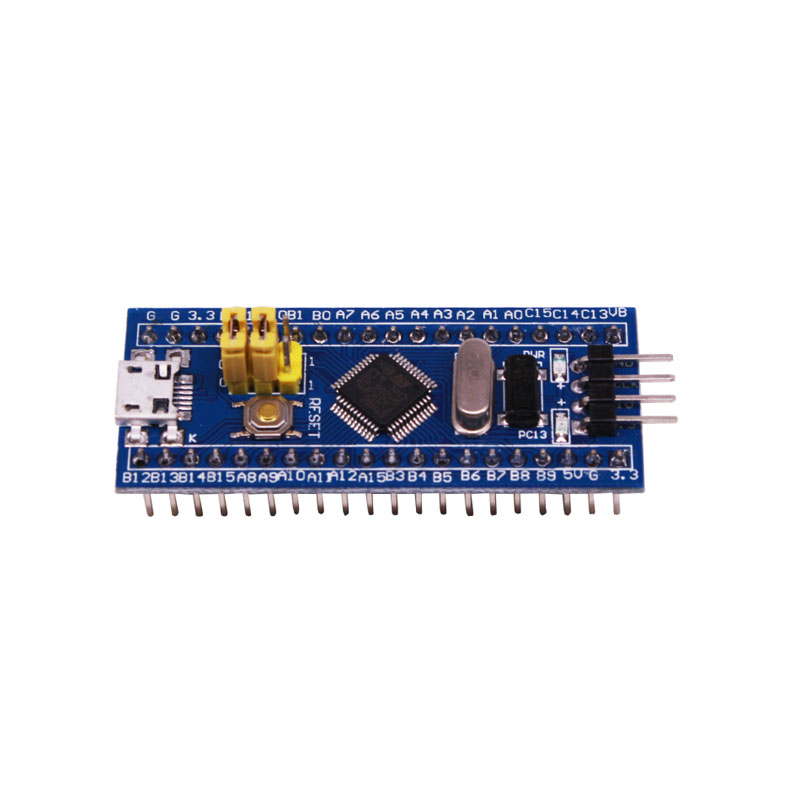

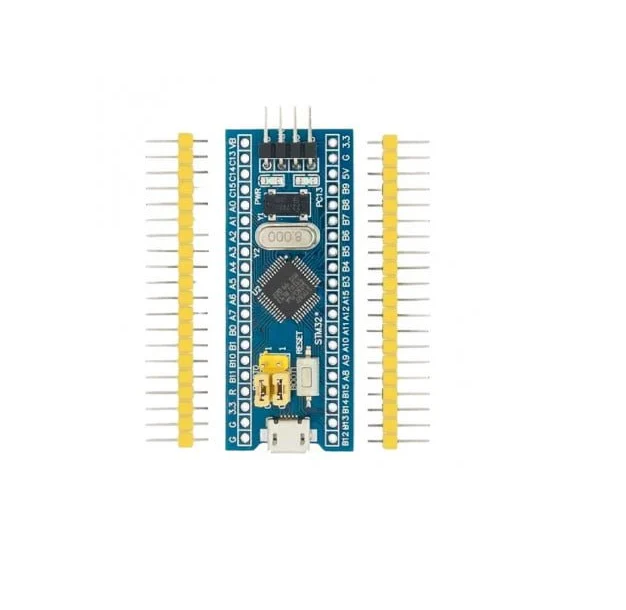

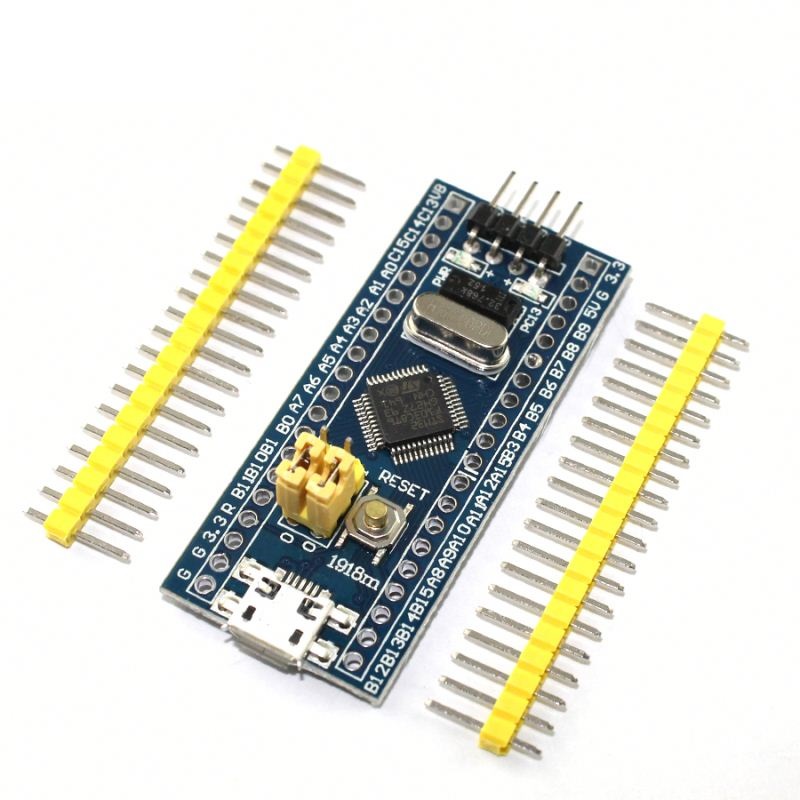

The HK32F103C8T6 Minimum System Board is an affordable and compact development platform based on the ARM Cortex-M3 architecture, designed for embedded systems enthusiasts and learners. It features the STM32F103C8T6 microcontroller, operating at a frequency of 72MHz, and is equipped with 64KB of flash memory and 20KB of SRAM, providing ample resources for various applications. The board operates within a voltage range of 2.0V to 3.6V, making it versatile for different power requirements. It includes an onboard mini USB interface, facilitating both power supply and USB communication, which simplifies the development process. The debug mode is supported via Serial Wire Debug (SWD), allowing for efficient debugging and programming. Additionally, the board features a reset circuit (POR/PDR) and supports crystal oscillators ranging from 4MHz to 16MHz, ensuring stable clock generation. With its compact dimensions of 54mm x 22mm and a weight of 9g, the HK32F103C8T6 board is ideal for projects requiring a small form factor. Whether you're a hobbyist or a professional, this board offers a cost-effective solution for developing and prototyping embedded systems.
