About this item

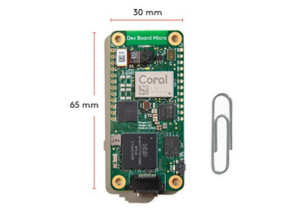

The Coral Dev Board Micro is a compact microcontroller development board designed for efficient on-device machine learning applications. It integrates a dual-core NXP i.MX RT1176 processor, featuring an ARM Cortex-M7 core running at 800 MHz and an ARM Cortex-M4 core at 400 MHz, providing a balanced combination of performance and energy efficiency. Coupled with Google's Edge TPU, the board delivers up to 4 TOPS (trillion operations per second) of ML inference, enabling rapid processing of TensorFlow Lite models. Equipped with 64 MB of SDRAM and 128 MB of NAND flash storage, the Coral Dev Board Micro supports various I/O interfaces, including two 12-pin GPIO headers, a USB Type-C port for power and data transfer, and high-density connectors for add-on boards. It also features an onboard Himax HM01B0 color camera with a 324 x 324 resolution and a PDM mono microphone, facilitating vision and audio ML applications. The board operates on Mendel Linux, a Debian-based OS, and is compatible with TensorFlow Lite for Microcontrollers, making it suitable for a wide range of edge AI projects. Ideal for developers seeking a low-power, compact solution for embedded ML tasks, the Coral Dev Board Micro offers a versatile platform for prototyping and deploying intelligent edge devices.
