About this item

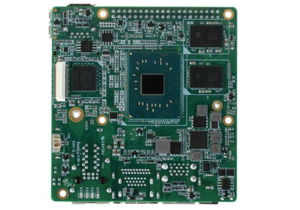

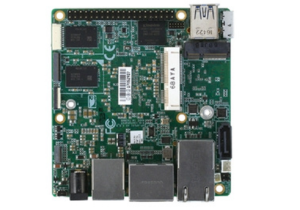

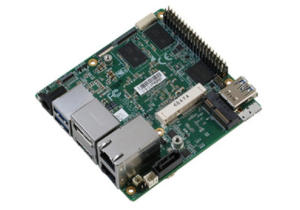

The AAEON UP Squared UPS-APL01 is a compact, fanless single-board computer designed for embedded applications requiring efficient performance and versatile connectivity. Powered by the dual-core Intel® Celeron® N3350 processor, it offers a balance between power efficiency and processing capability. The board is equipped with 4 GB of DDR4 RAM and 32 GB of eMMC storage, providing sufficient resources for lightweight computing tasks. Its small form factor, measuring approximately 3.37" x 3.54" (85.6 mm × 90 mm), allows for integration into space-constrained environments. The UP Squared board supports various I/O options, including HDMI 1.4b, DisplayPort 1.2, USB 3.2 Gen 1, USB 2.0, and Gigabit Ethernet, ensuring versatile connectivity for different peripherals and networks. Additionally, it features a 40-pin GPIO header and supports expansion through M.2 and mini-PCIe slots, enabling customization for specific use cases. The board operates within a temperature range of 0°C to 60°C and consumes approximately 18W of power under typical load, making it suitable for continuous operation in industrial settings. With support for multiple operating systems, including Windows® 10 IoT Enterprise, Ubuntu, and Yocto, the UP Squared board offers flexibility for developers and integrators.
