About this item

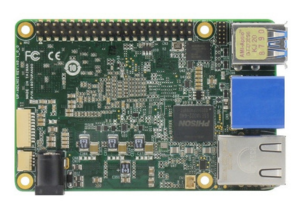

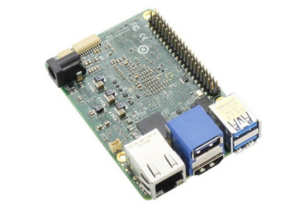

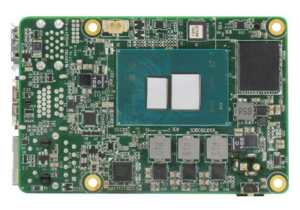

The AAEON UP 7000 is a fanless, credit-card-sized embedded computing platform powered by Intel’s Alder Lake-N family (in this SKU, the quad-core N100 with 6 W TDP), featuring 8 GB LPDDR5 memory and 64 GB onboard eMMC storage, tailored for industrial use, edge computing, robotics, AI-augmented IoT, and digital signage. Inheriting the 85.6 × 56 mm footprint of the original UP Board, it packs robust I/O: three USB 3.2 Gen 2 Type-A ports, two USB 2.0 and one UART via header, HDMI 1.4b output, Gigabit Ethernet via Realtek RTL8111H, and a Raspberry-Pi-compatible 40-pin GPIO header. The integrated Intel UHD Gen 12 graphics deliver smooth 4K output and enhanced execution units over prior generations for better rendering and AI workloads. Security features include onboard TPM 2.0, RTC with battery support, and firmware capabilities like PXE, WoL, and watchdog timer. It supports Windows 10/11 IoT Enterprise LTSC 2021, Ubuntu 22.04 LTS, and Yocto 4.0. The board operates from 12 V DC (up to 5 A), consuming around 30–36 W under typical load, while running reliably within 0–60 °C, CE/FCC/RoHS compliant, and offering an MTBF of ~685,000 hours. Overall, the UP 7000 (N100, 8 GB, 64 GB eMMC) strikes an excellent balance between low-power efficiency and high embedded performance in a compact industrial form factor.
