About this item

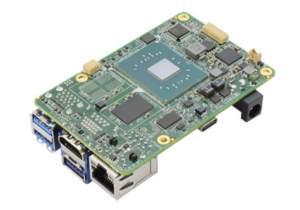

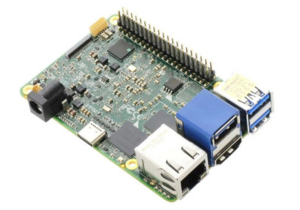

The AAEON UP 4000 is a credit‑card‑sized embedded computing platform powered by the Intel Celeron N3350 dual‑core Apollo Lake processor, equipped with 4 GB onboard LPDDR4 memory and 32 GB eMMC storage, making it well suited for robotics, industrial automation, digital signage, IoT and edge computing. Despite its compact footprint (≈85.6 × 56.5 mm), the board delivers robust I/O support: a full‑spec HDMI 1.4b port and DisplayPort 1.4 via USB‑C for dual displays up to 4K at 60 Hz, three USB 3.2 Gen 1 Type‑A ports, one USB‑C OTG port, two USB 2.0 headers, a 40‑pin GPIO header, a 6‑pin audio wafer (mic‑in + line‑out), and a Gigabit Ethernet interface driven by a Realtek RTL8111H chipset. The system also includes TPM 2.0 for hardware security, and expansion via M.2 slots (E‑Key, M‑Key, B‑Key) on compatible carrier boards. It draws a modest 12 V DC at up to 5 A (typical power 15–25 W), operates reliably in industrial environmental conditions (0–60 °C, 10–80 % humidity), and carries CE/FCC/RoHS certification with an MTBF exceeding 538,000 hours. The UP 4000 offers ~30 % higher CPU speed and double the 3D graphics performance over its predecessor, while maintaining pin‑level compatibility to simplify retrofitting and streamline migration paths. Supported OS platforms include Windows 10, Windows IoT Core, Ubuntu, and Yocto.
