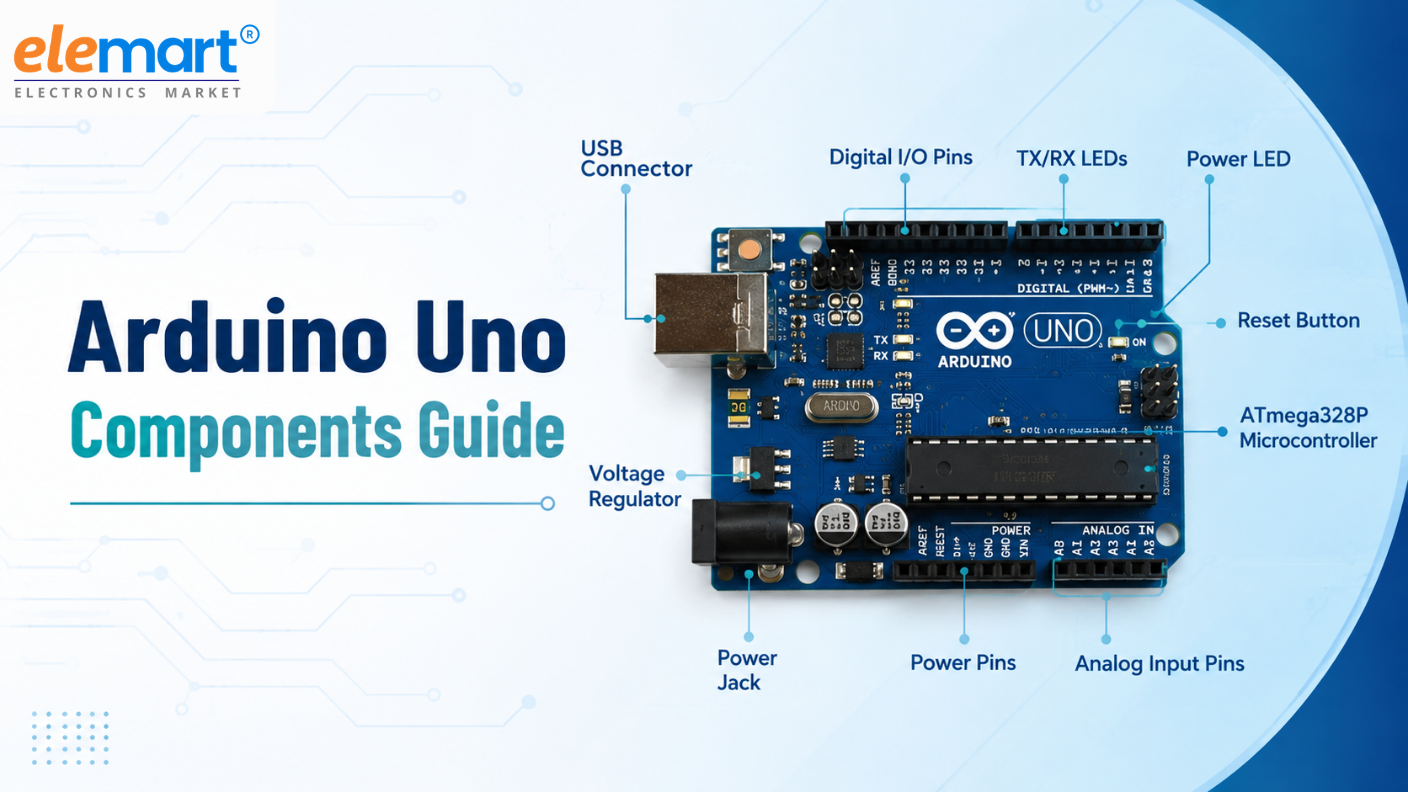

Arduino Uno Components Guide: Everything You Need to Understand the Board

The Arduino Uno has become one of the most popular microcontroller boards in the world, serving as the foundation for countless electronics, robotics, automation, and Internet of Things (IoT) projects. Whether you are a student learning the basics of embedded systems, an engineer prototyping a product, or a hobbyist exploring DIY electronics, understanding the components of the Arduino Uno board is essential for building successful projects.

One of the biggest reasons behind the popularity of Arduino Uno is its simplicity. The board combines a powerful microcontroller with user-friendly hardware, making it easy for beginners to start programming while also providing enough flexibility for advanced applications. Today, Arduino boards are widely used in smart home automation, industrial monitoring, robotics, environmental sensing, and educational projects.

With the increasing demand for Electronic components in India, developers and makers are looking for reliable sources to purchase genuine Arduino Uno parts and accessories. A trusted Online Electronic store like Elemart provides high-quality boards, sensors, modules, and Electronic Parts required to build innovative projects.

In this comprehensive guide, we will explore every major component of the Arduino Uno board, understand its functions, and learn how each part contributes to the overall operation of the system.

Key Takeaways

• Arduino Uno is one of the most beginner-friendly and versatile microcontroller boards, making it an ideal platform for learning electronics, embedded systems, robotics, and IoT application development.
• The ATmega328P microcontroller serves as the brain of the board, processing data from sensors and controlling various output devices such as LEDs, motors, relays, and displays.
• Understanding the function of components like the DC Power Jack, Voltage Regulator, Digital Pins, PWM Pins, and Analog Pins helps users design more stable, efficient, and reliable electronic circuits.
• Communication interfaces such as UART, I2C, and SPI enable Arduino Uno to connect seamlessly with external modules including Bluetooth, Wi-Fi, GPS, LCD displays, and sensors.
• Arduino Uno supports a wide variety of applications, including smart home automation systems, IoT projects, industrial automation, educational experiments, and DIY robotics kits.
• Using genuine Arduino Uno parts and purchasing from a trusted Electronic components Supplier ensures better compatibility, long-term durability, stable performance, and reduced troubleshooting.
• Platforms like Elemart provide a comprehensive range of Electronic Products Online, including Arduino boards, sensors, communication modules, Raspberry Pi accessories, and Electronic Kits, making project development easier for students, makers, and professionals.

What is Arduino Uno?

Arduino Uno is an open-source microcontroller development board based on the ATmega328P microcontroller. It is designed to simplify electronics programming and hardware interfacing for beginners and professionals alike.

The board can receive inputs from sensors, buttons, or modules, process the information using its microcontroller, and produce outputs by controlling LEDs, motors, displays, relays, and many other devices.

Because of its versatility and ease of use, Arduino Uno is widely used in:

• IoT applications
• Robotics projects
• Smart home automation systems
• Industrial control systems
• Educational laboratories
• DIY electronics projects

Many educational institutions and makerspaces prefer Arduino because it provides an excellent platform for practical learning.

Why Understanding Arduino Uno Components is Important

Many beginners start programming an Arduino board without fully understanding the hardware components present on it. However, knowing the function of each section helps in troubleshooting problems, selecting compatible modules, and designing better projects.

Understanding the board components allows users to:

• Build circuits more confidently.
• Avoid wiring mistakes.
• Improve project reliability.
• Select suitable Arduino Uno parts.
• Interface sensors and modules correctly.
• Develop scalable IoT and automation systems.

A solid understanding of the hardware also makes it easier to work with advanced Electronic Kits and DIY robotics kits.

Overview of Arduino Uno Specifications

Before discussing individual components, it is useful to understand the board's basic specifications.

Main Technical Specifications

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage: 7V–12V recommended
• Digital I/O Pins: 14
• PWM Pins: 6
• Analog Input Pins: 6
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz

These specifications make Arduino Uno suitable for a wide variety of automation and IoT projects.

The ATmega328P Microcontroller

The ATmega328P is the heart and brain of the Arduino Uno board. Every operation performed by the board is controlled by this microcontroller.

It receives signals from connected sensors and input devices, processes the information according to the uploaded program, and generates outputs to control other electronic devices.

Major Functions of the Microcontroller

• Executes program instructions
• Processes sensor data
• Controls digital outputs
• Generates PWM signals
• Communicates with external modules

Without the ATmega328P, the Arduino Uno board would simply be a collection of connectors and electronic circuits.

USB Interface

The USB connector is one of the most recognizable components on the Arduino Uno.

It serves two important purposes:

1. Program Uploading

The USB cable allows users to upload code from the Arduino IDE to the microcontroller.

2. Power Supply

The board can also receive power directly through the USB connection during development and testing.

This simple plug-and-play functionality is one of the reasons Arduino Uno is so beginner-friendly.

DC Power Jack

The DC Power Jack is one of the primary power input options available on the Arduino Uno board. While the USB port is commonly used during programming and testing, the DC barrel jack allows the board to operate independently without being connected to a computer. This makes the Arduino Uno highly suitable for portable and standalone applications.

The board typically accepts an external input voltage between 7V and 12V, although it can technically handle a wider range. Common power sources include:

• 7V rechargeable battery packs
• 9V DC adapters
• 12V regulated power supplies

When external power is supplied through the DC jack, the onboard voltage regulator automatically converts it into a stable operating voltage required by the microcontroller and other components. This feature is particularly beneficial for robotics, IoT systems, automation projects, and smart home applications where continuous operation is required without relying on a computer connection.

Voltage Regulator

The voltage regulator is one of the most important protection components on the Arduino Uno board. Electronic circuits require a stable and consistent operating voltage, but external power sources often produce slight fluctuations. The voltage regulator ensures that the ATmega328P microcontroller and connected modules receive a constant 5V supply, preventing unexpected behavior and hardware damage.

Without proper voltage regulation, sensitive components could experience overheating, unstable operation, or even permanent failure. The regulator acts as a safeguard, making the board more reliable and durable for long-term use.

Major Benefits of the Voltage Regulator

• Prevents overheating caused by excessive voltage.
• Protects the ATmega328P microcontroller from electrical damage.
• Maintains stable operation for connected sensors and modules.
• Improves overall circuit reliability and performance.
• Extends the lifespan of the Arduino board.

Whether you are building a simple educational project or a complex IoT application, stable voltage regulation is essential for maintaining consistent performance.

Digital Input and Output Pins

Arduino Uno provides 14 Digital Input/Output (I/O) pins, labeled from D0 to D13. These pins are one of the board's most versatile features because they can either receive digital signals from external devices or send digital commands to output devices.

A digital pin operates using two logic states:

• HIGH (5V)
• LOW (0V)

This simple ON/OFF functionality allows Arduino to interact with countless electronic components and modules.

Common Applications of Digital Pins

• Reading push button inputs
• Controlling LEDs
• Operating relay modules
• Driving DC motors through motor drivers
• Interfacing with ultrasonic sensors
• Communicating with Bluetooth and Wi-Fi modules

It is important to note that Pins D0 (RX) and D1 (TX) are primarily reserved for serial communication. Developers often avoid using these pins for general-purpose applications unless necessary.

The flexibility of digital I/O pins makes Arduino Uno an excellent platform for automation, robotics, and embedded system development.

PWM Pins

Pulse Width Modulation (PWM) is a technique that enables Arduino Uno to simulate analog output using digital signals. The board includes six dedicated PWM pins, marked with a "~" symbol.

Available PWM Pins

• Pin 3
• Pin 5
• Pin 6
• Pin 9
• Pin 10
• Pin 11

Instead of producing a true analog voltage, PWM rapidly switches the output between HIGH and LOW states at varying intervals. By changing the duty cycle, Arduino can effectively control the amount of power delivered to a device.

Common Applications of PWM

• Adjusting LED brightness
• Controlling DC motor speed
• Operating servo motors
• Managing fan speed
• Power regulation for electronic devices

PWM functionality significantly enhances the board's capabilities and allows developers to build advanced automation and control systems with minimal additional hardware.

Analog Input Pins

Unlike digital pins that only detect ON or OFF signals, analog input pins can measure continuously changing voltage levels. Arduino Uno provides six analog input pins, labeled A0 to A5, which are connected to the onboard Analog-to-Digital Converter (ADC).

These pins convert analog signals into digital values that the microcontroller can process, making them ideal for sensor-based applications.

Common Sensors Connected to Analog Pins

• Temperature sensors
• Light-dependent resistors (LDRs)
• Gas detection sensors
• Potentiometers
• Soil moisture sensors
• Pressure sensors

Analog inputs play a critical role in IoT devices, environmental monitoring systems, and smart automation projects because they allow Arduino to interact with real-world physical conditions.

Power Pins

The power section of the Arduino Uno contains dedicated pins used for distributing voltage to external sensors, modules, and other electronic components. These pins eliminate the need for separate power supplies in many small-scale projects.

Main Power Pins

5V Pin: Supplies regulated 5V output for compatible modules.

3.3V Pin: Provides 3.3V power for low-voltage devices.

VIN Pin: Allows external voltage input before regulation.

GND Pins: Provide the common electrical ground reference.

These power connections simplify wiring and make it easier to integrate multiple components into a single project.

Ground (GND) Pins

Ground pins serve as the common electrical reference point for the entire circuit. Every sensor, module, or peripheral connected to the Arduino Uno must share a common ground to ensure accurate signal transmission and stable operation.

Without proper grounding, circuits may experience:

• Unstable sensor readings
• Communication failures
• Random system resets
• Electrical noise interference

Although they appear simple, GND pins are among the most critical components of the board and are essential for creating reliable electronic circuits.

Reset Button

The Reset Button allows users to restart the ATmega328P microcontroller instantly. Pressing this button clears the current execution cycle and starts running the uploaded program from the beginning.

This feature is particularly useful during:

• Program testing
• Hardware debugging
• Circuit troubleshooting
• Firmware updates

Developers often use the reset function when making rapid modifications to code, allowing quick verification without disconnecting power.

Crystal Oscillator

Located near the microcontroller, the crystal oscillator generates a highly accurate 16 MHz clock signal that synchronizes all operations performed by the Arduino Uno.

The microcontroller relies on this clock to execute instructions at precise intervals. Stable timing is essential for communication protocols, sensor measurements, PWM generation, and data processing.

Applications such as serial communication, motor control, and IoT data transmission depend heavily on the accuracy provided by the crystal oscillator.

TX and RX LEDs

Arduino Uno includes dedicated communication indicator LEDs labeled TX and RX.

TX LED

The TX (Transmit) LED blinks whenever the board sends data to another device.

RX LED

The RX (Receive) LED illuminates whenever the board receives incoming data.

These indicators provide developers with a simple visual way to monitor serial communication between the Arduino and external devices such as computers, Bluetooth modules, Wi-Fi modules, or GSM modules.

Power LED

The Power LED is a small but important status indicator located on the Arduino Uno board. It lights up whenever the board receives power through the USB connection or DC power jack.

If the LED does not turn on, it usually indicates a problem with the power supply, USB cable, or external adapter. During troubleshooting, this LED is often the first component developers check.

Built-in LED

Arduino Uno includes a built-in LED permanently connected to Digital Pin 13. This onboard LED allows users to test programs without connecting external components.

The famous "Blink" example program included with the Arduino IDE uses this LED to help beginners verify that their board and software installation are functioning correctly.

Although simple, the built-in LED serves as an excellent learning tool for understanding digital outputs and basic programming concepts.

ICSP Header

The In-Circuit Serial Programming (ICSP) Header provides direct access to the ATmega328P microcontroller for low-level programming.

It is commonly used for:

• Installing or restoring bootloaders
• Advanced firmware programming
• Programming standalone microcontrollers
• Professional embedded development

While beginners rarely use the ICSP interface, it is an essential feature for advanced developers and product designers.

Serial Communication Pins

Arduino Uno supports UART (Universal Asynchronous Receiver-Transmitter) communication using Pin 0 (RX) and Pin 1 (TX).

This communication interface enables data exchange between Arduino and various external devices.

Devices Commonly Connected Through UART

• Computers
• Bluetooth modules
• GSM modules
• GPS receivers
• Wi-Fi modules

Serial communication forms the backbone of many IoT applications because it provides a simple and reliable method for transmitting data.

I2C Communication Interface

Arduino Uno supports the I2C communication protocol using analog pins A4 (SDA) and A5 (SCL).

I2C allows multiple devices to communicate using only two wires, reducing wiring complexity and saving valuable I/O pins.

Common I2C Devices

• LCD displays
• OLED screens
• Real-time clock modules
• Environmental sensors
• EEPROM memory modules

Because of its simplicity and efficiency, I2C is widely used in modern embedded systems and smart devices.

SPI Communication Interface

SPI (Serial Peripheral Interface) is a high-speed communication protocol supported by Arduino Uno. It enables rapid data transfer between the board and peripheral devices.

Common SPI Devices

• SD card modules
• TFT and OLED displays
• Ethernet shields
• Flash memory modules

Compared to I2C, SPI offers faster communication speeds, making it ideal for applications involving large amounts of data.

Common Arduino Uno Accessories

A complete Arduino development setup often includes additional hardware modules that expand the board's functionality and make project development easier.

Popular Arduino Accessories

• Breadboards
• Jumper wires
• LCD and OLED displays
• Relay modules
• Servo motors
• Ultrasonic sensors
• Bluetooth modules
• Wi-Fi modules

These accessories enable users to build everything from simple educational projects to advanced automation and IoT systems.

Applications of Arduino Uno

Arduino Uno has become one of the most widely used development boards because of its versatility and ease of use.

Smart Home Automation

Arduino controls lighting systems, smart switches, security devices, and automated appliances, making it an important component in modern smart homes.

Robotics

The board serves as the central controller for Arduino Robotic Kits and DIY robotics kits, helping users build obstacle-avoiding robots, robotic arms, and autonomous vehicles.

IoT Projects

Arduino Uno can connect sensors, communication modules, and cloud platforms to create intelligent connected systems. Users can easily Buy IoT components online to build monitoring and automation solutions.

Industrial Automation

Industries use Arduino for machine monitoring, environmental sensing, process control, and data acquisition systems.

Educational Projects

Schools, colleges, and training institutes widely use Arduino boards to teach electronics, embedded programming, and robotics through practical learning.

Why Buy Genuine Arduino Uno Parts?

Using genuine and high-quality Arduino Uno parts is essential for ensuring stable performance and long-term reliability. Low-quality alternatives often lead to inaccurate readings, communication errors, and hardware failures.

Benefits of Genuine Components

• Better durability and build quality
• Higher compatibility with modules
• Stable and reliable operation
• Accurate sensor data collection
• Longer product lifespan
• Reduced maintenance and troubleshooting

Purchasing from a trusted Electronic components Supplier ensures authenticity and helps developers build dependable projects.

Choosing the Right Online Electronic Store

Selecting the right supplier is just as important as selecting the right hardware. A reliable Online Electronic store should provide high-quality products backed by excellent customer service.

Features of a Good Electronic Store

• Genuine and certified products
• Affordable pricing
• Fast nationwide delivery
• Technical support and guidance
• Large product inventory

Elemart offers a comprehensive range of Electronic Products Online, including Arduino boards, sensors, communication modules, Raspberry Pi accessories, and Electronic Kits for students, engineers, and professionals.

Future of Arduino in IoT and Automation

As technology continues to evolve, Arduino remains one of the most important development platforms for innovation. The increasing adoption of IoT and automation is creating new opportunities for Arduino-based solutions across various industries.

Emerging Applications

• AI-powered smart homes
• Industrial IoT systems
• Smart agriculture solutions
• Healthcare monitoring devices
• Environmental data collection
• Educational robotics platforms

With its simplicity, affordability, and extensive ecosystem, Arduino Uno will continue to play a major role in shaping the future of electronics, automation, and connected technologies.

Conclusion

Arduino Uno has revolutionized the world of electronics by providing an affordable, flexible, and easy-to-use development platform. Understanding every component of the board—from the ATmega328P microcontroller and power management system to communication interfaces and input/output pins—helps developers build more reliable and efficient projects.

Whether you are working on robotics, IoT applications, or Smart home automation systems India, having a clear understanding of the board's architecture is essential for success. Combining Arduino with high-quality Electronic Parts, sensors, and modules allows users to create innovative solutions across various industries.

Elemart, as a trusted Online Electronic store and reliable Electronic components Supplier, offers a wide selection of Arduino Uno parts, Electronic components, Electronic Kits, Raspberry Pi accessories, and automation products. By choosing quality components from Elemart, students, hobbyists, and professionals can confidently build smarter, more efficient, and future-ready electronic systems.

Frequently Asked Questions (FAQs)

1. What is the Arduino Uno board mainly used for?

Arduino Uno is a programmable microcontroller board used for building electronics and automation projects. It is widely used in robotics, IoT systems, smart home automation, industrial monitoring, and educational applications. The board can read data from sensors, process the information using the ATmega328P microcontroller, and control devices such as LEDs, motors, relays, and displays. Its simplicity and flexibility make it suitable for both beginners and experienced developers.

2. Why is the ATmega328P microcontroller important in Arduino Uno?

The ATmega328P is the core processing unit of the Arduino Uno board. It executes the uploaded program, processes incoming signals from sensors, and controls all output operations. Every component connected to the board relies on this microcontroller for proper functioning. Its balance of processing power, memory capacity, and low power consumption makes it ideal for embedded systems, robotics projects, and Internet of Things (IoT) applications.

3. What is the difference between digital pins and analog pins on Arduino Uno?

Digital pins can only detect or output two states: HIGH (5V) or LOW (0V), making them suitable for controlling LEDs, switches, and relays. Analog pins, on the other hand, can read continuously changing voltage values from sensors such as temperature sensors, light sensors, and potentiometers. This ability allows Arduino Uno to interact with real-world environmental conditions and makes it highly effective for monitoring and automation projects.

4. Why are PWM pins important in Arduino projects?

PWM (Pulse Width Modulation) pins allow Arduino Uno to simulate analog outputs by rapidly switching digital signals on and off. This feature is extremely useful for controlling LED brightness, adjusting motor speed, operating servo motors, and regulating power delivery to various devices. The six PWM-enabled pins provide additional flexibility, enabling developers to create smoother and more advanced automation systems without requiring specialized analog hardware.

5. Which communication protocols does Arduino Uno support?

Arduino Uno supports multiple communication protocols, including UART, I2C, and SPI. UART is commonly used for serial communication with computers and Bluetooth modules. I2C enables multiple devices like LCD displays and sensors to communicate using only two wires, while SPI provides high-speed data transfer for modules such as SD cards and Ethernet shields. These protocols make Arduino highly compatible with a wide range of external devices.
