About this item

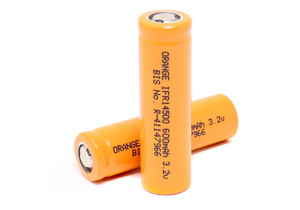

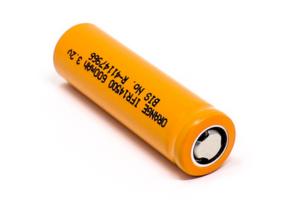

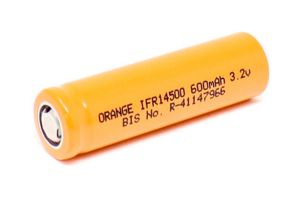

The Orange A‑Grade IFR14500 LiFePO₄ Battery (600mAh) is a compact and safe energy cell ideal for applications requiring moderate capacity and reliable performance. It has a nominal voltage of 3.2V and a rated capacity of 600mAh, offering a good balance between energy density and runtime. Charging is handled using a CC/CV protocol, with a maximum charge voltage of 3.65V. Standard charging current is 0.2C (approximately 120mA), while fast charging up to 1C (600mA) is supported. Continuous discharge capability reaches up to 3C, allowing peak currents of around 1.8A. Constructed into a flat-top cylindrical cell, it measures approximately 14mm in diameter and 50mm in height, weighing around 17–18g. It boasts low internal resistance, typically under 60mΩ, which helps minimize energy loss and heat generation. This LiFePO₄ chemistry offers a long cycle life—over 1500 cycles at full discharge and possibly up to 3000 cycles at 80% depth of discharge, with capacity retention exceeding 80%. Operating temperature ranges are from 0°C to 45°C during charging and –20°C to 60°C during discharge, making it suitable for varied environments. It can be stored safely at moderate temperatures with minimal self-discharge. The Orange IFR14500 is a durable and efficient battery for solar flashlights, IoT devices, and compact electronics.
