Arduino Portenta Vision Shield – Ethernet
Brand: Arduino
Features
₹7,099 (Incl. of all taxes)
₹7,099
+ ₹7,099 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

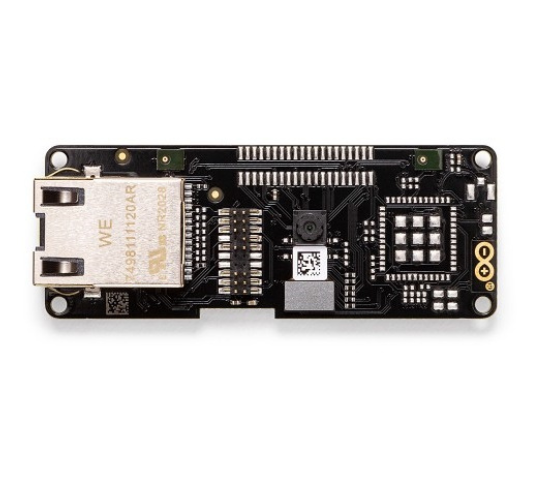

The Arduino Portenta Vision Shield – Ethernet is an advanced hardware add-on designed for Portenta H7 boards, enabling embedded computer vision and audio processing with industrial reliability. It features a 320x320 pixel (QVGA) camera sensor for real-time image recognition using OpenMV, and two MEMS microphones for directional sound detection. The shield offers 100 Mbps Ethernet connectivity via a dedicated RJ45 connector, allowing reliable wired networking, and includes a microSD card slot for local data storage or configuration. It also provides a JTAG connector for low-level debugging and firmware updates. Board size: 66.04 x 25.40 mm, weight: 8 g
Specifications
| Ethernet Connectivity | 100 Mbps Ethernet via RJ45 for reliable wired networking |
|---|---|
| Camera module | Himax HM-01B0 camera for embedded vision applications |
| Camera Resolution | 324 x 324 active pixels with QVGA support |
| Image sensor | High-sensitivity 3.6μ BrightSense pixel technology |
| Microphone | 2 × MP34DT06JTR MEMS digital microphones for directional audio capture |
