Adafruit Feather RP2040
Brand: Adafruit Industries
Features
₹1,799
+ ₹1,799 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

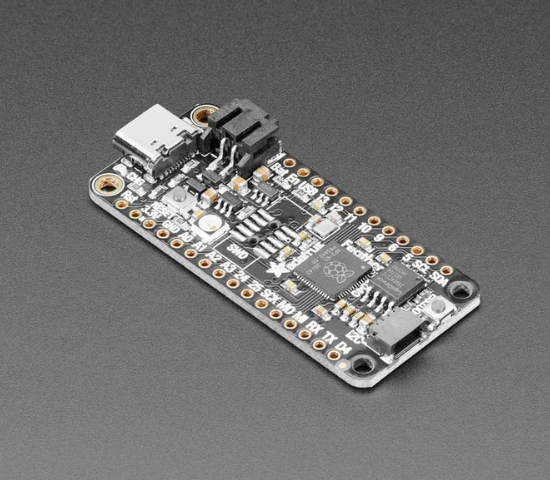

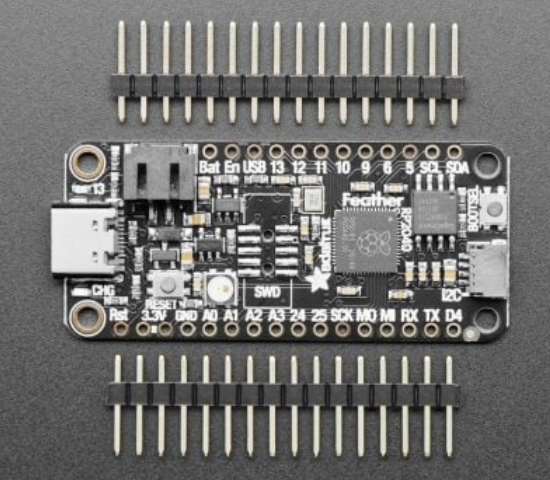

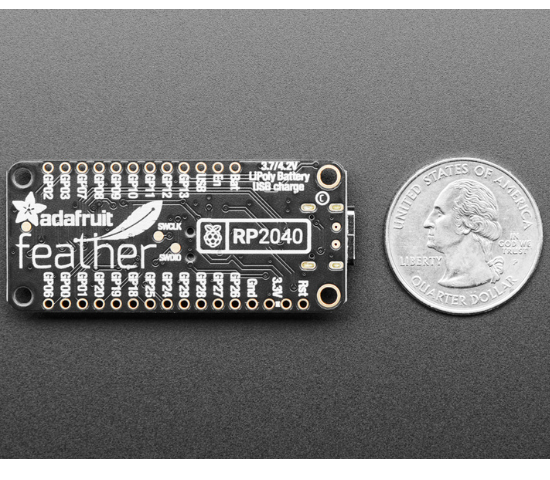

The Adafruit Feather RP2040 is a compact development board featuring the Raspberry Pi RP2040 microcontroller. It operates with a 32-bit dual-core Cortex M0+ processor running at approximately 125 MHz, complemented by 264 KB of SRAM and 8 MB of SPI flash storage. The board offers 21 multifunctional GPIO pins, including support for I2C, SPI, UART, PWM, and ADC functionalities. It also includes an onboard STEMMA QT connector for easy integration with various sensors and peripherals. Power is supplied via a USB Type-C connector, and it supports a 3.3V logic level with a built-in 200mA+ LiPoly charger. The Feather RP2040 is compatible with both CircuitPython and MicroPython, making it suitable for a wide range of embedded applications
Specifications
| Microcontroller | RP2040 32-bit Cortex M0+ dual-core |
|---|---|
| Clock Speed | ~125 MHz |
| Flash Memory | 8 MB SPI FLASH |
| Onboard Charger | Built-in 200mA+ LiPo charger |
| Connector | USB Type-C |
