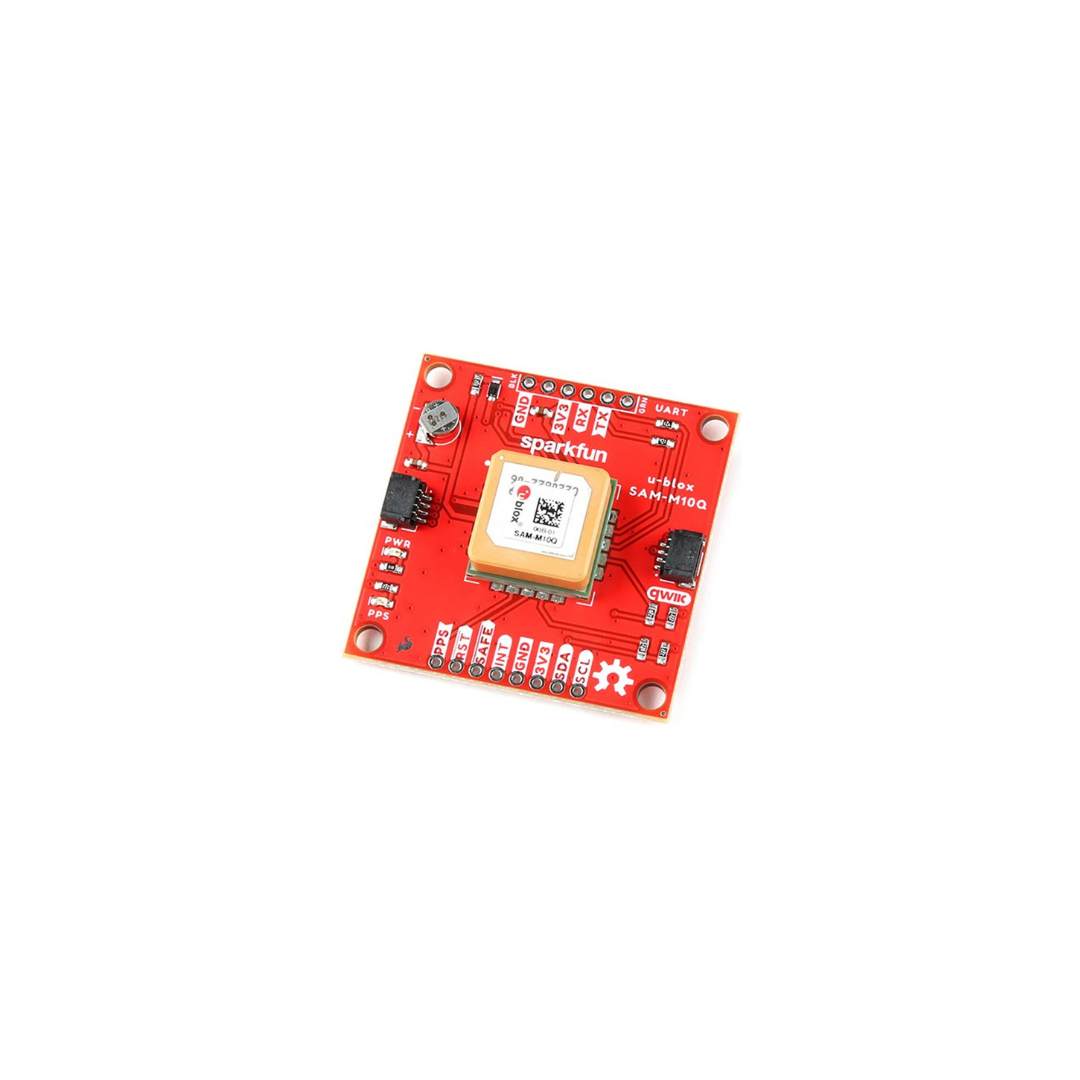

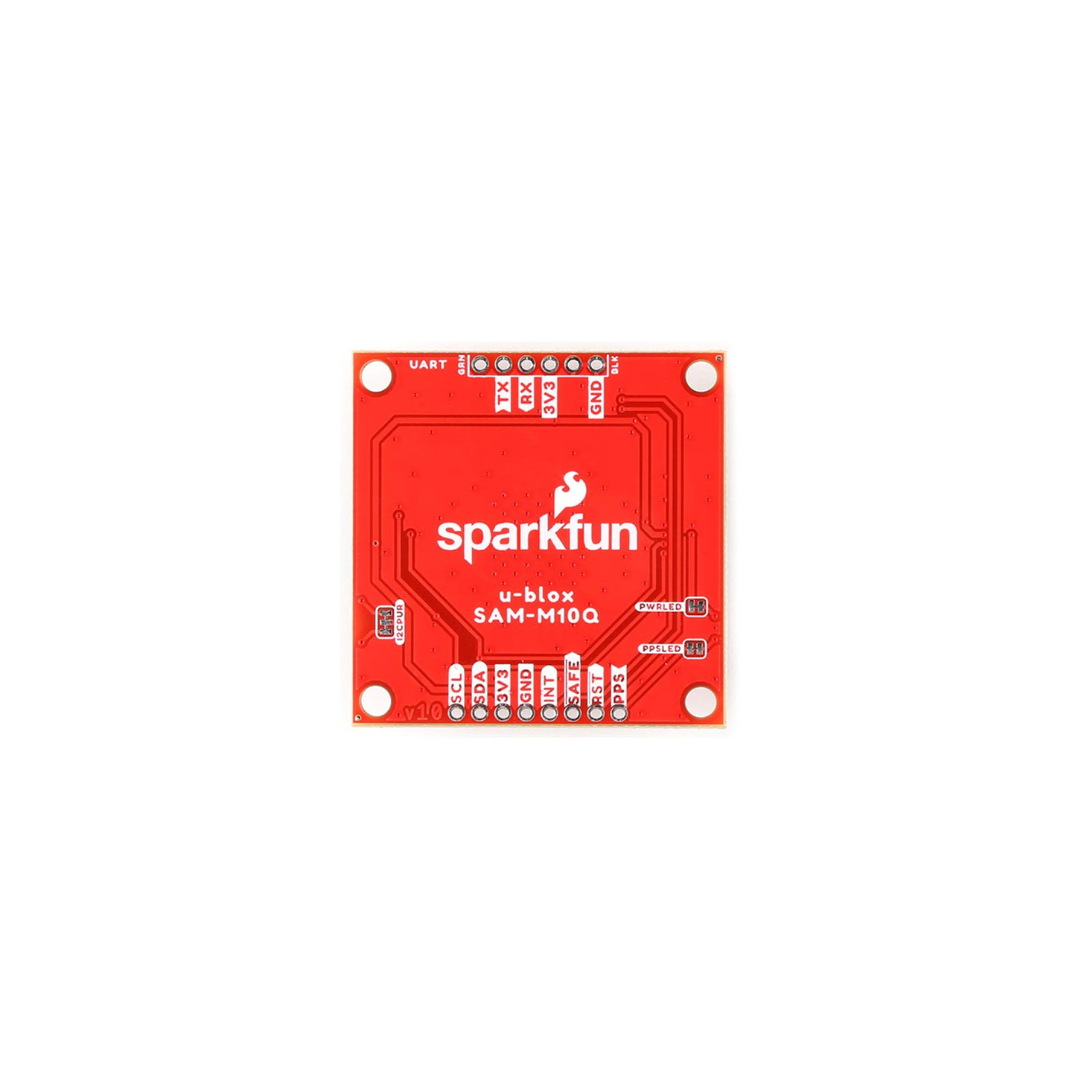

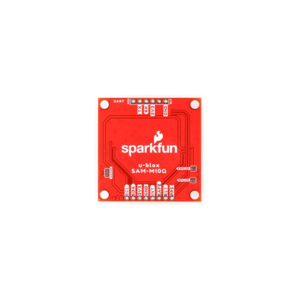

SparkFun GPS Breakout - Chip Antenna SAM-M10Q Qwiic
Brand: Sparkfun
Features
₹5,300.3 (Incl. of all taxes)
₹5,300.3
+ ₹5,300.3 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The SparkFun SAM-M10Q GPS Breakout features the advanced u-blox SAM-M10Q chip-antenna module, delivering improved accuracy and up to 50% lower power consumption than its predecessor, the M8Q. Capable of tracking up to four GNSS constellations simultaneously—GPS, GLONASS, Galileo, BeiDou, and QZSS—it offers enhanced time-to-fix and positioning even under limited sky visibility. The module supports L1 band signals, provides 1.5m horizontal accuracy, and achieves a hot start in just one second. With an update rate of up to 18Hz, Qwiic integration, and a 3V rechargeable backup battery, this compact board is ideal for precision tracking in embedded and portable applications.
Specifications
| GNSS Constellations Supported | GPS, GLONASS, Galileo, BeiDou, QZSS |
|---|---|
| Horizontal Position Accuracy | 1.5 meters |
| Update Rate | Up to 18Hz (1 GNSS), 5Hz (4 GNSS) |
| Power Consumption | 13mA (acquisition), 10mA (tracking), 5mA (power-save) |
| Backup Battery | 3V / 1mAh (up to 4 hours backup, 1-second hot start) |
