About this item

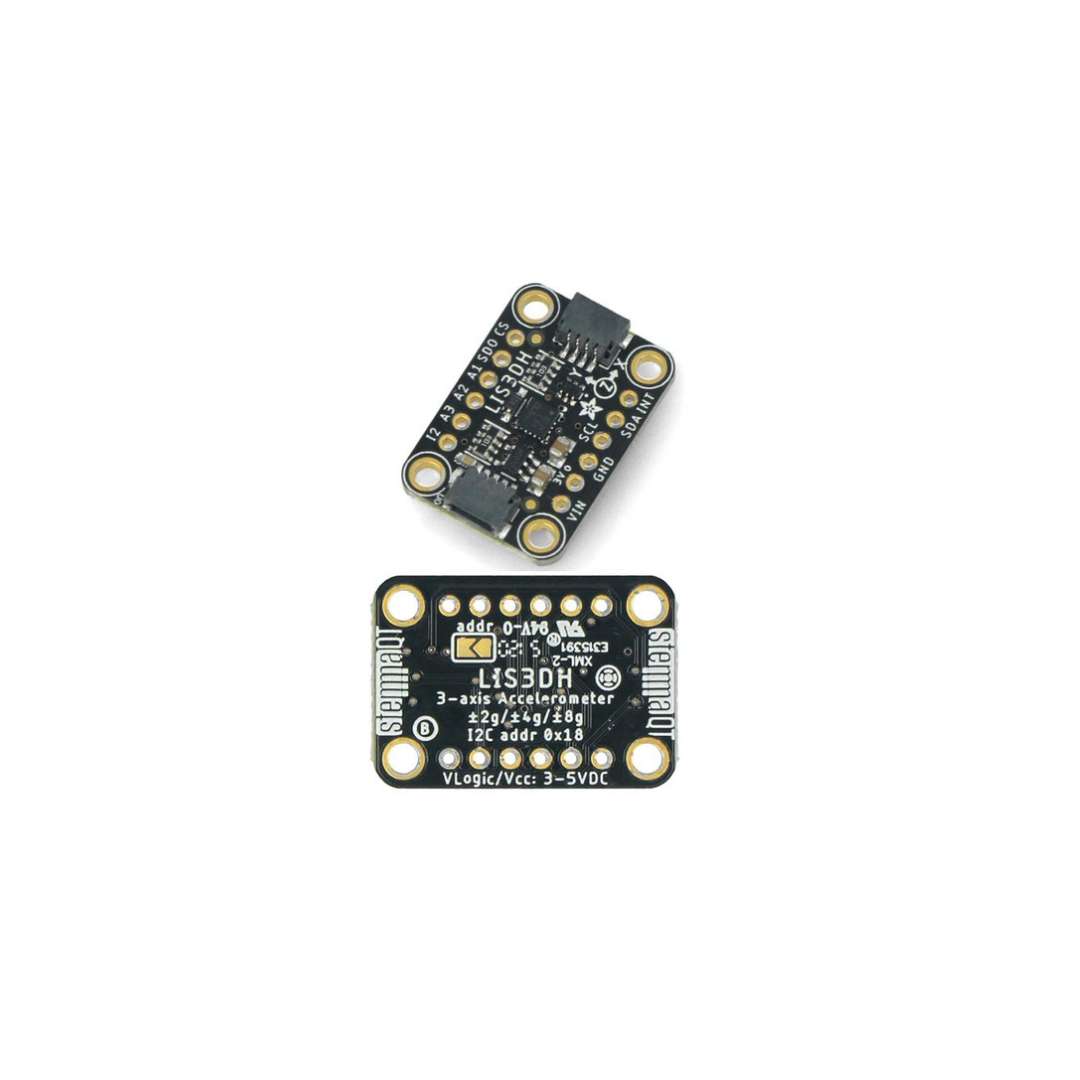

The LIS3DH is a compact, ultra-low-power 3-axis MEMS accelerometer offering selectable full-scale ranges of ±2g, ±4g, ±8g, or ±16g. It features 16-bit digital output via I²C or SPI, with data rates from 1 Hz up to 5.3 kHz—ideal for both slow and high-speed sensing. Key built-in features include a 32-level FIFO buffer, click/double-tap detection, orientation and free-fall interrupts, and a temperature sensor. Operating from 1.71 V to 3.6 V with only ~2 µA draw in low-power mode, it’s perfect for battery-powered or wearable applications. Compact and rugged, it suits motion detection, gesture sensing, and portable low-power IoT devices.
Specifications
| Interface: | I²C & SPI |
|---|---|
| Operating Voltage: | 1.71 V – 3.6 V |
| Operating Temp Range: | –40 °C to +85 °C |
| Package Size: | LGA‑16, 3×3×1 mm |
| Orientation Detection: | 6D/4D orientation support |
