STMicroelectronics

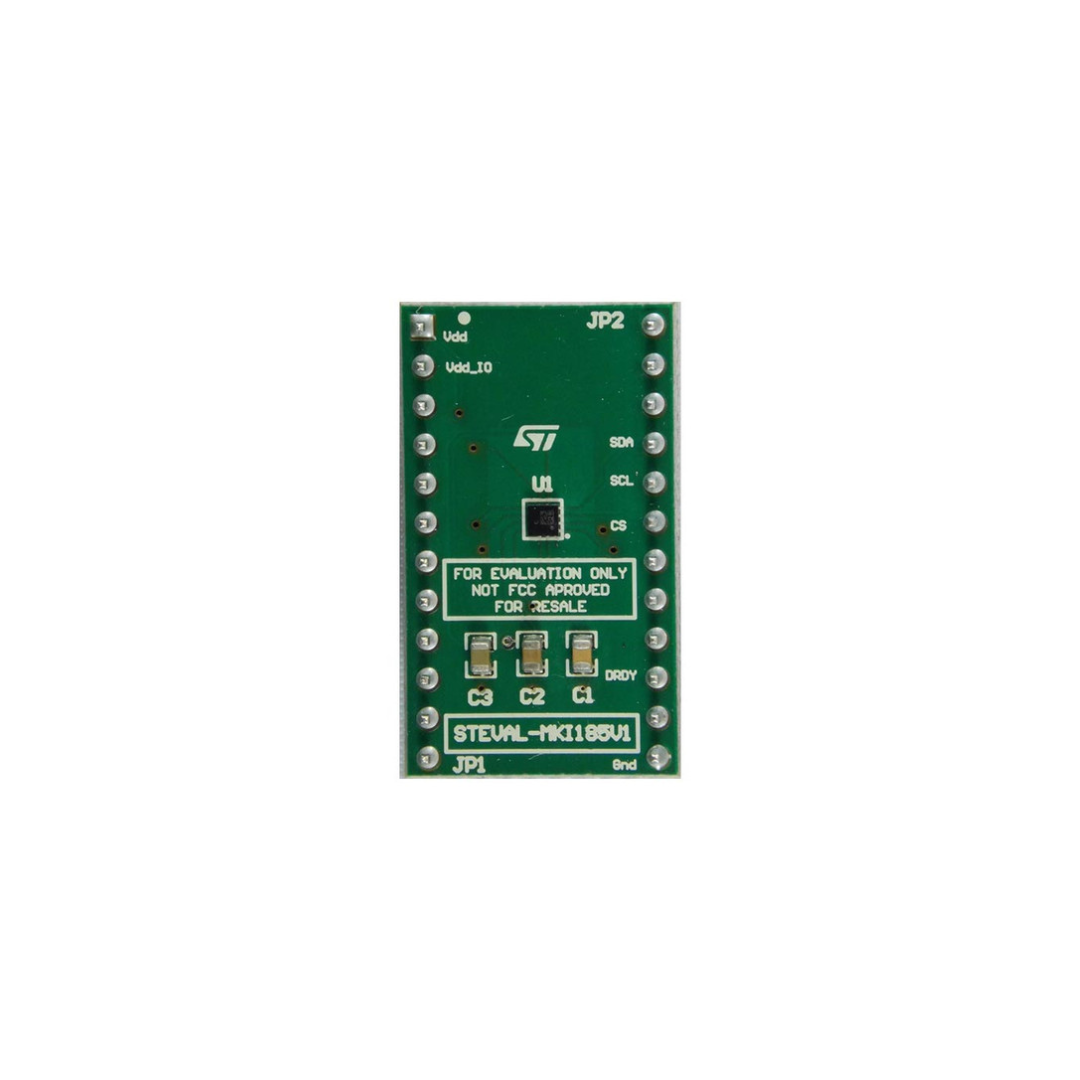

IIS2MDC Adapter Board DIL24 Socket Magnetometer Sensor Evaluation Board
Special Price
USD 1139.26
Inclusive of all taxes
Stock: Available

7 days service center Replacement

Delivery

1 Year Warranty

Pay on Delivery

10 days Return

Secure Transactions
Ships from | elemart |
---|---|
Sold by | davesh |
About this item
The STEVAL-MKI185V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the IIS2MDC product family. This board offers an effective solution for fast system prototyping and device evaluation directly within the user's application. It can be plugged into a standard DIL24 socket, providing the complete IIS2MDC pinout and coming ready-to-use with the required decoupling capacitors on the VDD power supply line. The adapter is fully compatible with the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC. Users can utilize the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications. The board is RoHS compliant, ensuring environmental safety.
Specifications
Supply Voltage: | 1.71V – 3.6V |
---|---|
Magnetic Range: | ±50 Gauss |
RoHS Compliant: | Yes |
Sensor: | IIS2MDC MEMS 3-Axis Magnetometer |
Interface: | I²C, SPI |
