7Semi SHT40 Temperature & Humidity Sensor Nano Breakout 2.54mm Pitch Connector
Special Price
USD 169.3
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item

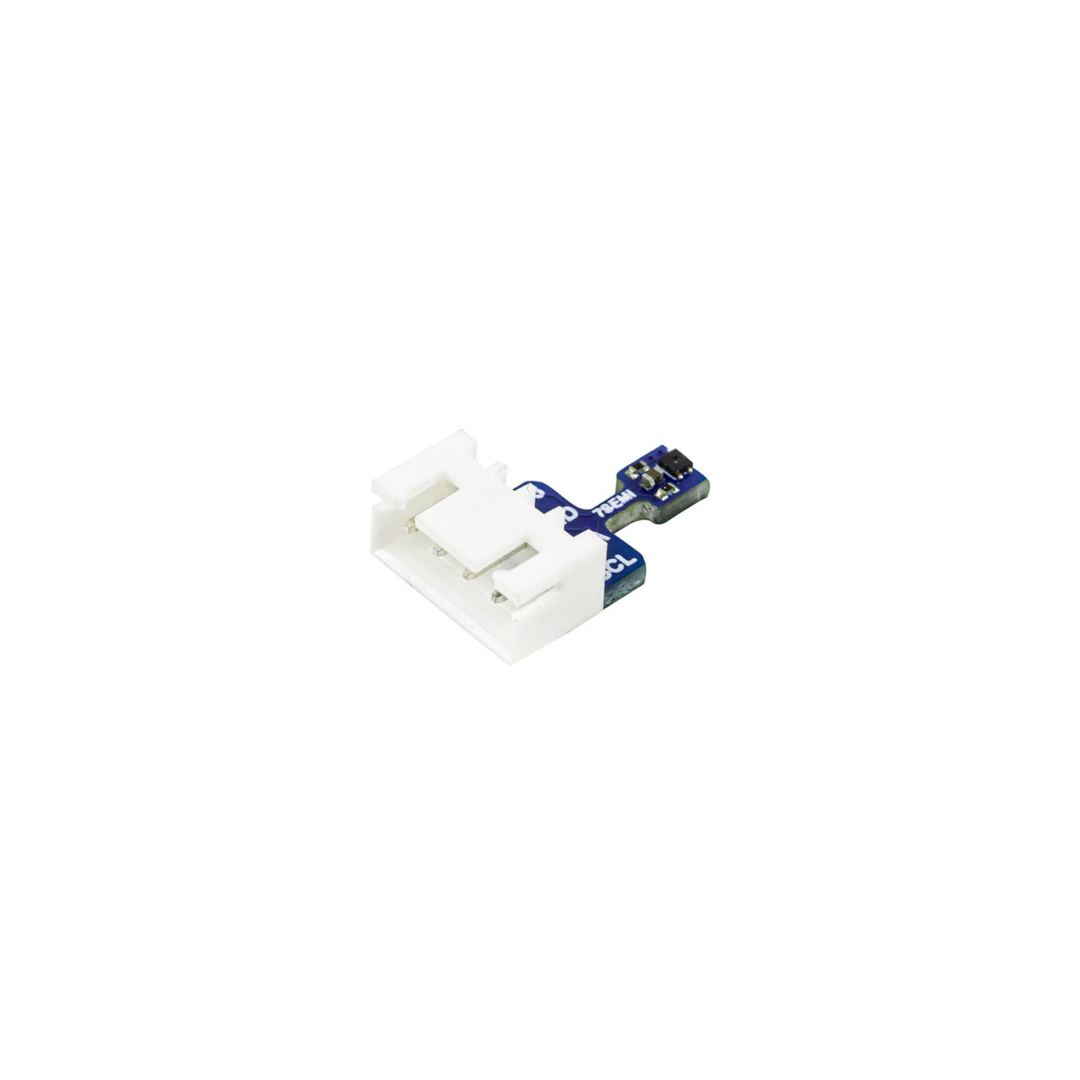

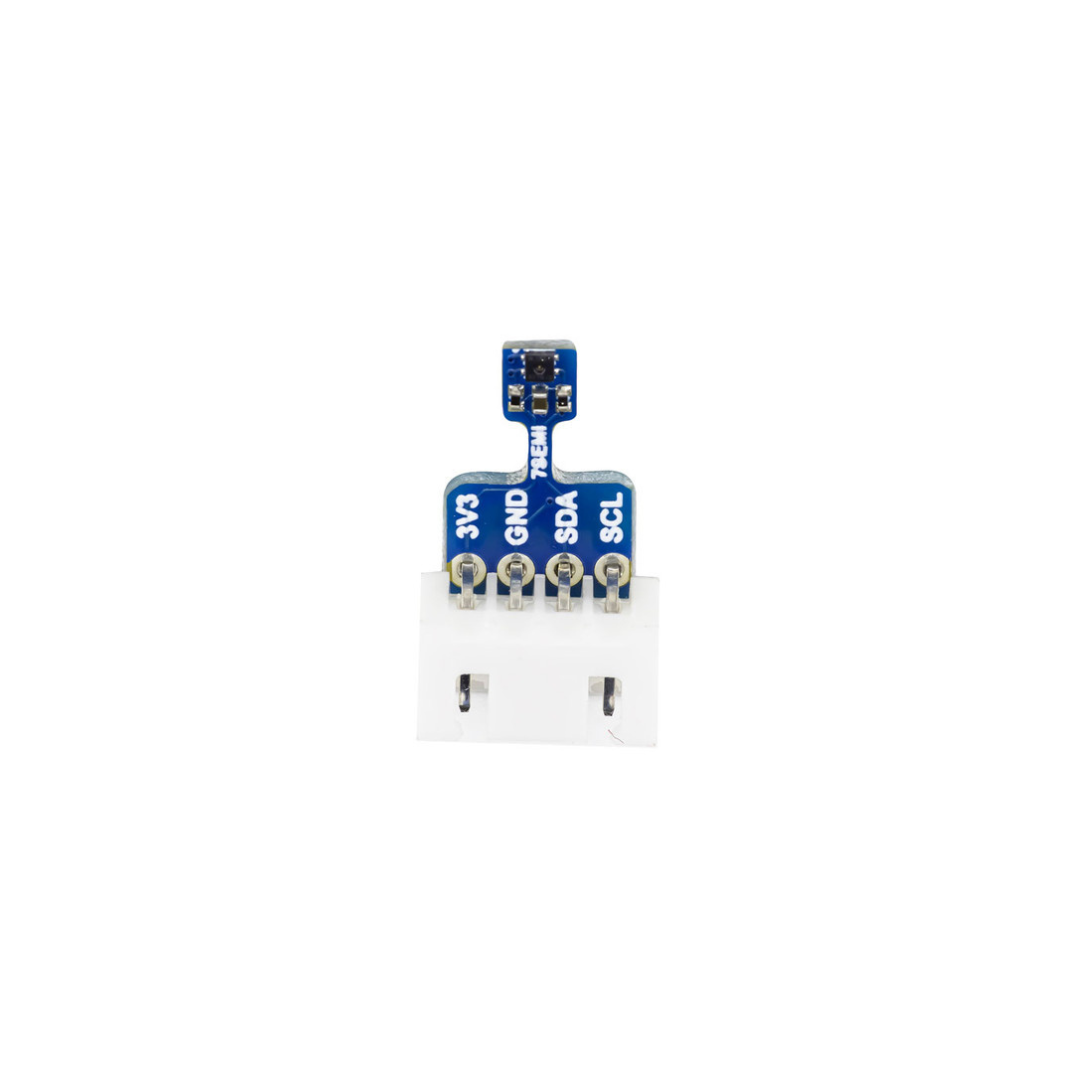

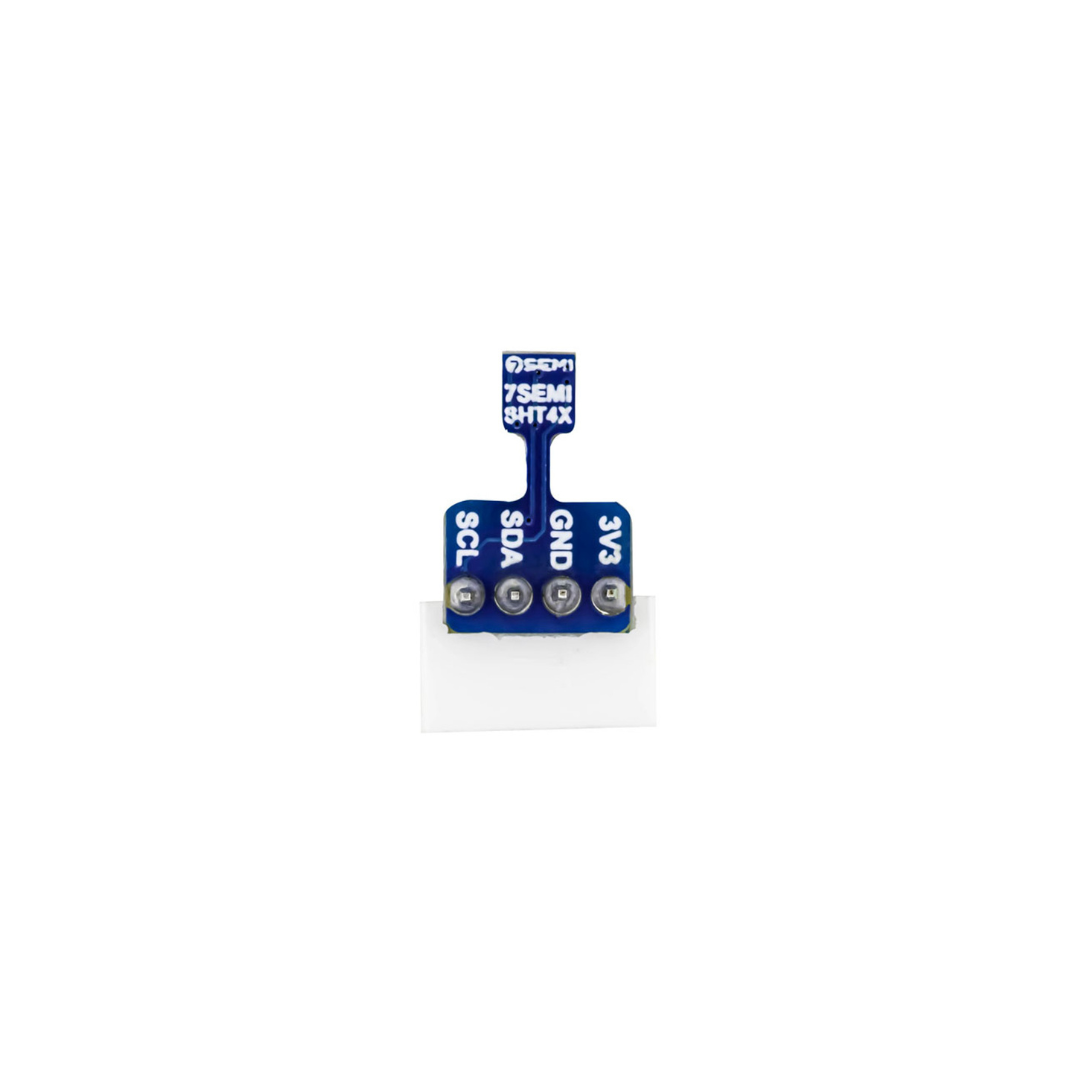

The 7Semi SHT40 breakout board offers precise environmental sensing, featuring ±0.2 °C temperature and ±1.8 %RH humidity accuracy. It employs a low‑power I²C interface (operating at 3.3 V, ~0.45 mA) and comes with a standard 2.54 mm connector, making it ideal for seamless connection to microcontrollers. Its operating range spans –40 °C to 125 °C and 0–100 %RH, suitable for diverse applications such as smart farming, HVAC control, weather stations, and lab equipment. The compact and energy‑efficient design ensures reliable data logging in portable or battery‑powered setups. Backed by genuine 7Semi quality and a 14‑day replacement guarantee via Evelta.
Specifications
| Temperature Range: | –40 °C to +125 °C |
|---|---|
| Temperature Accuracy: | ±0.2 °C typical (0–75 °C) |
| Supply Voltage: | 3.3 V |
| Power Consumption: | ~0.45 mA active, ultra-low power idle (~80 nA) |
| Response Time: | Temp τ63% ≈ 2 s, RH τ63% ≈ 8 s |
