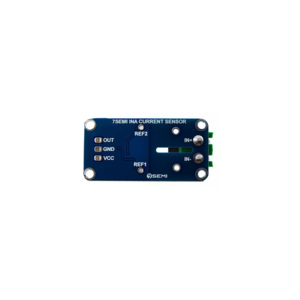

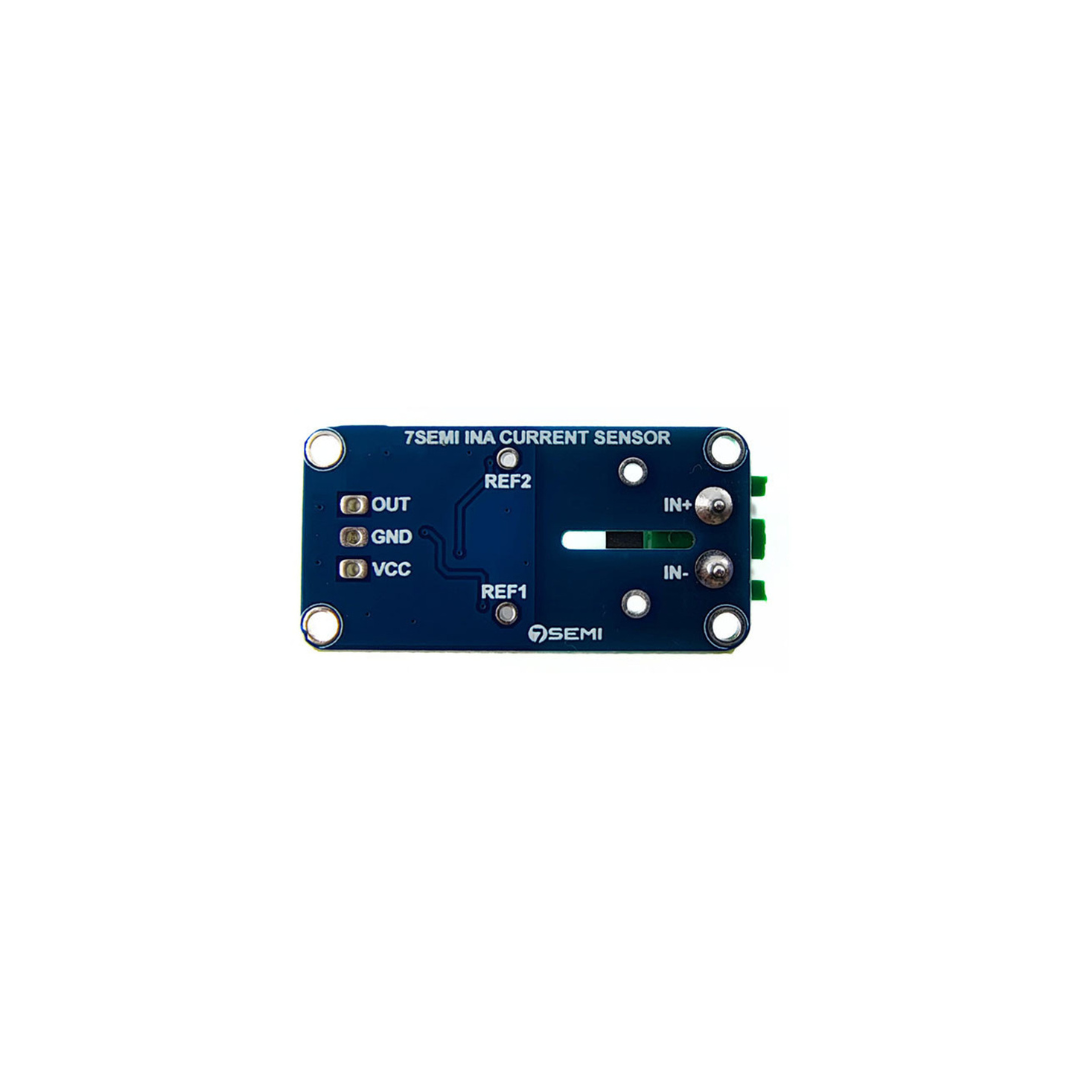

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain
Brand: 7semi
Features
₹1,529.5 (Incl. of all taxes)
₹2,788
45% Off
₹1,529.5
+ ₹1,529.5 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

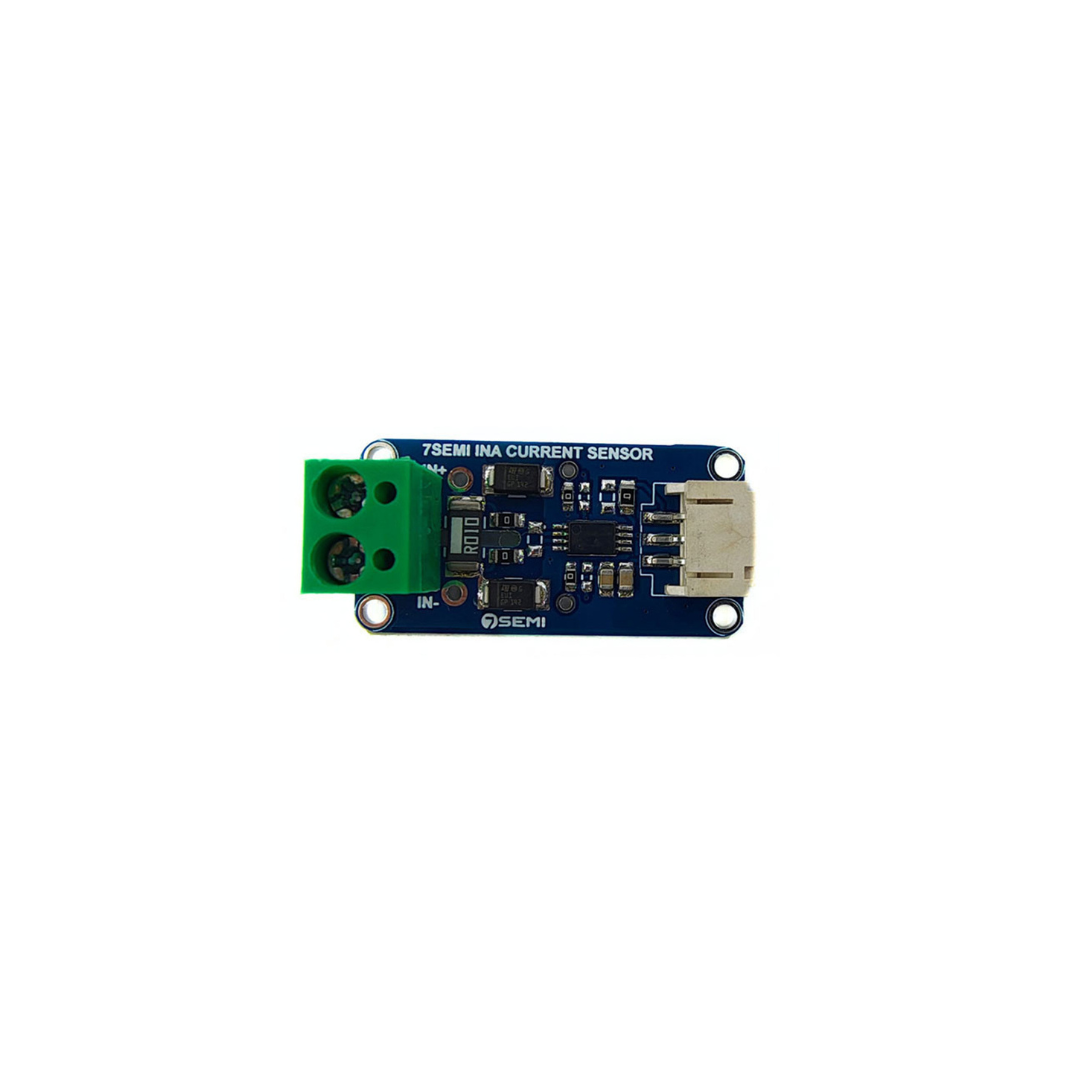

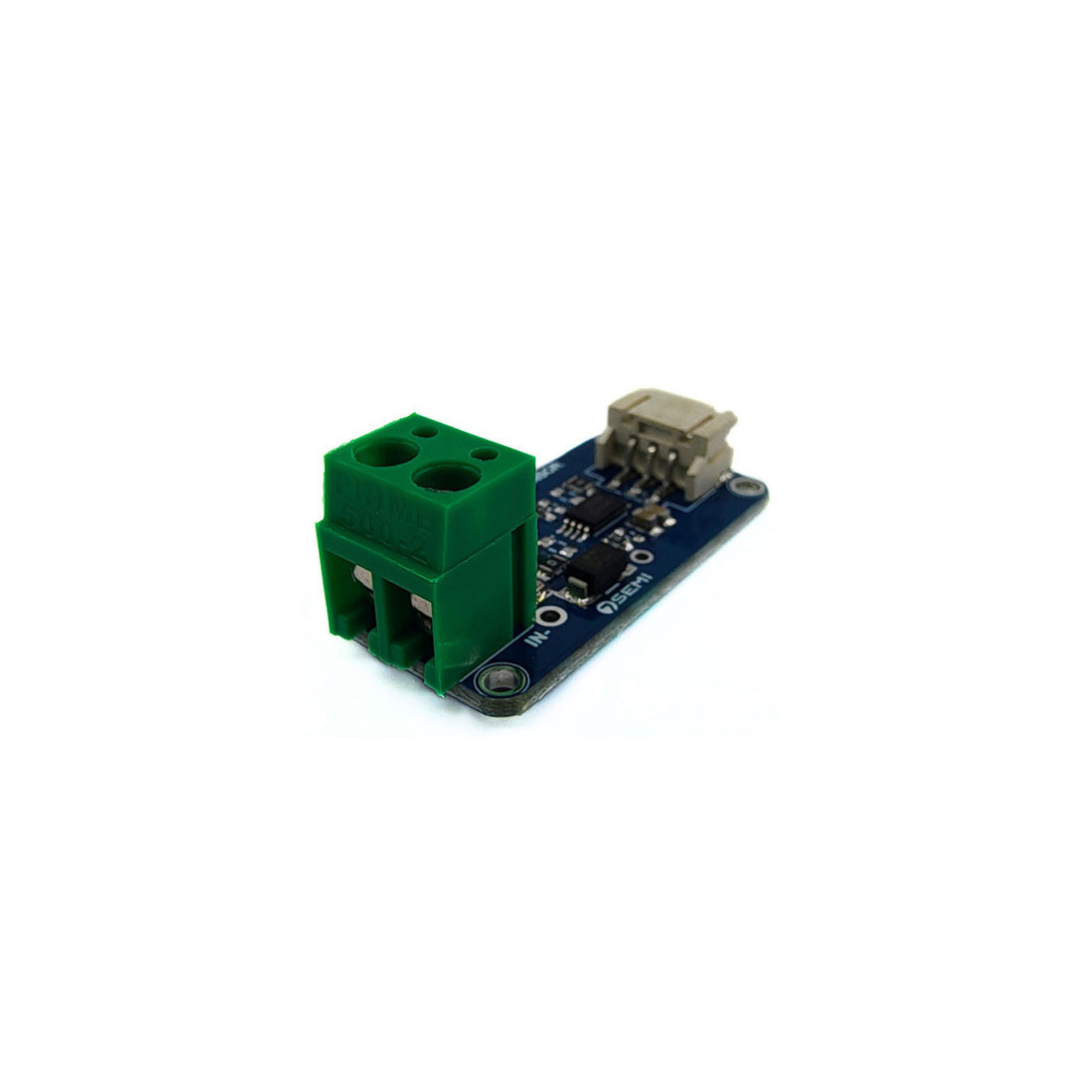

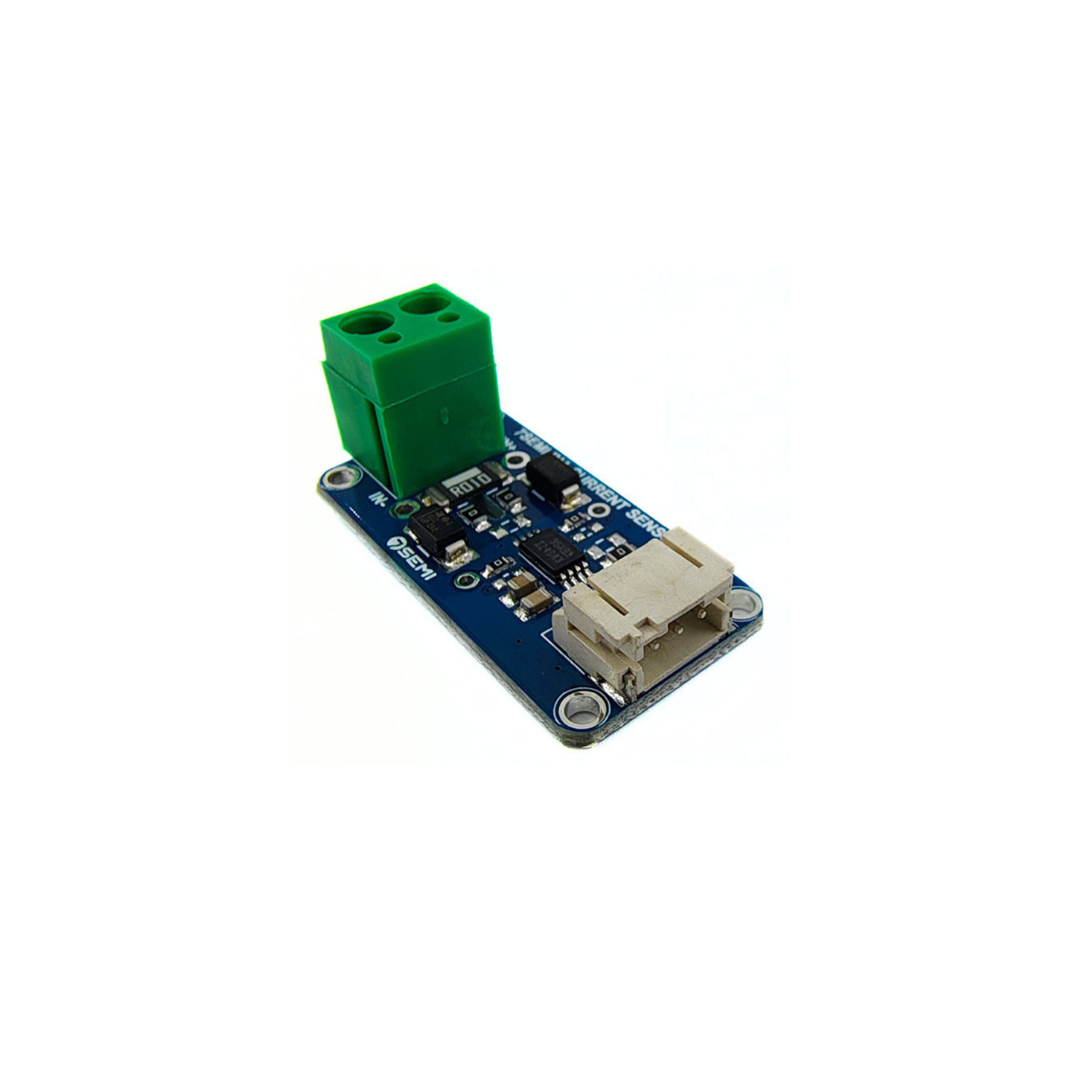

The 7Semi INA240 Breakout Board is a high-precision bidirectional current sensing module designed for applications requiring accurate current measurements in systems with a wide common-mode voltage range. Utilizing the INA240A3PW chip, it offers a common-mode voltage range of -4V to 80V, enabling precise current sensing even in systems operating below ground voltage. The board features enhanced PWM rejection, ensuring reliable measurements in environments with pulse-width modulation noise. With a gain of 100V/V, it amplifies small voltage drops across shunt resistors for accurate current calculations. Ideal for motor control, battery management, and power monitoring applications.
Specifications
| Voltage Range: | –4V to 80V |
|---|---|
| Gain: | 100 V/V |
| Output: | Voltage signal |
| Supply: | 2.7V–5.5V |
| Accuracy: | ±0.20% gain error |
