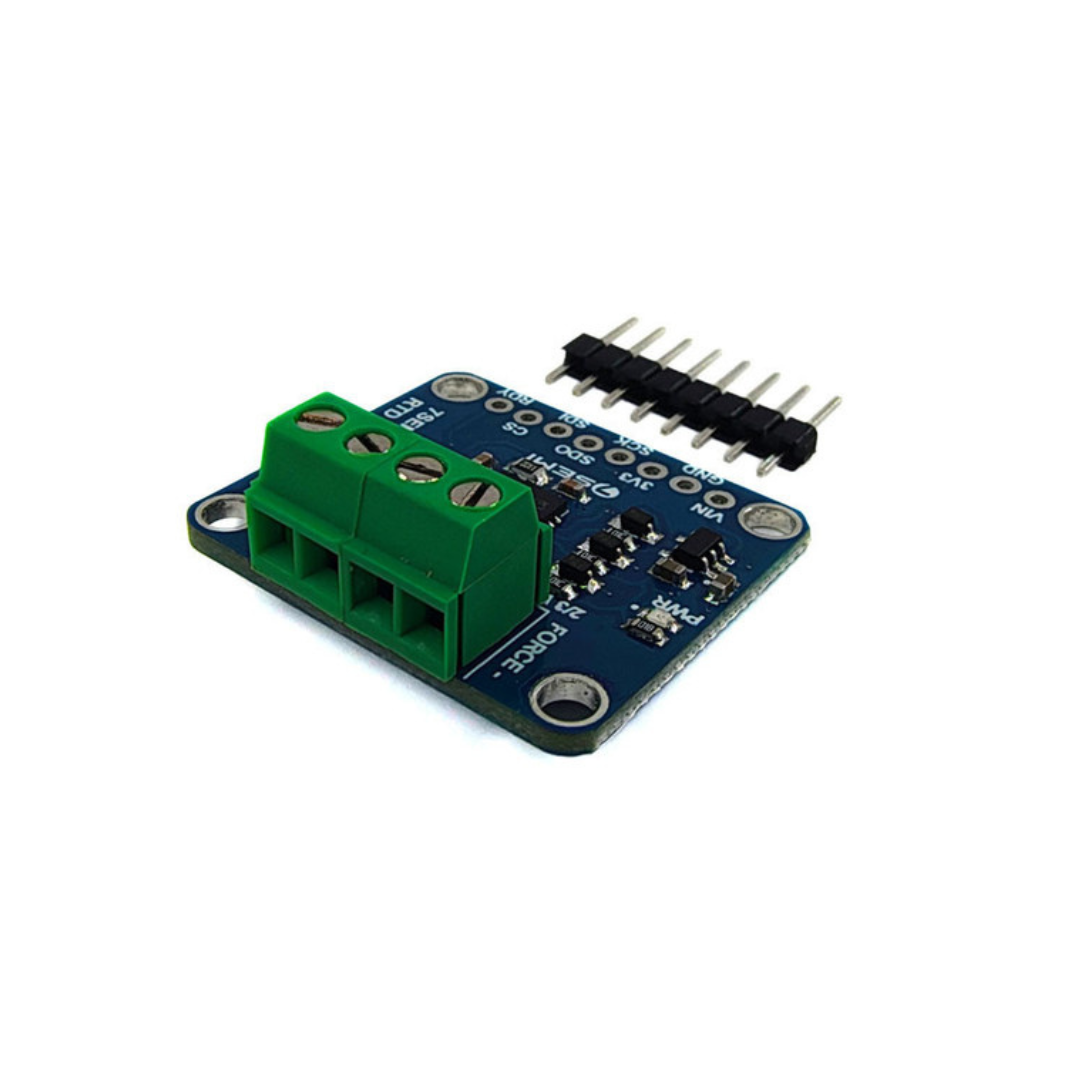

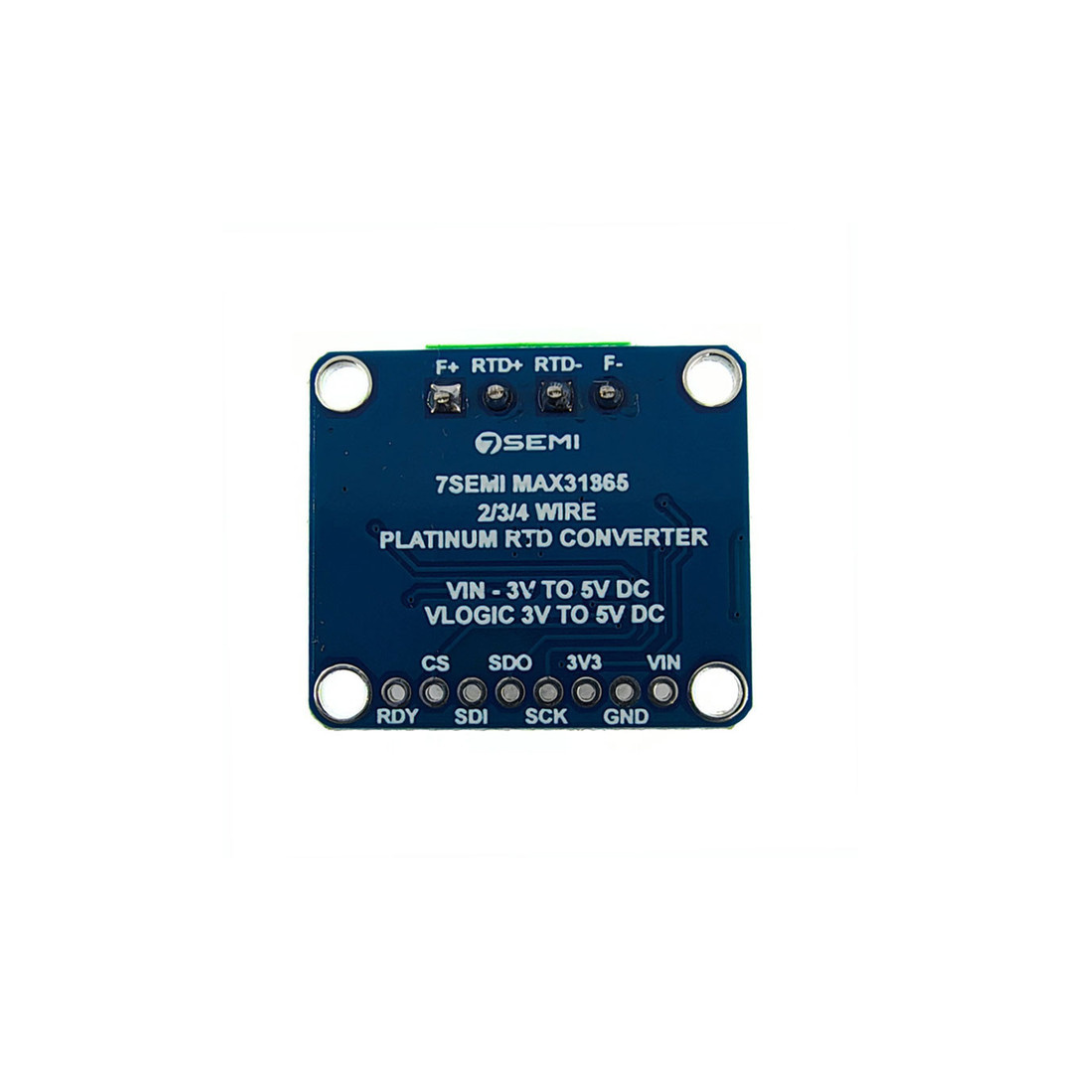

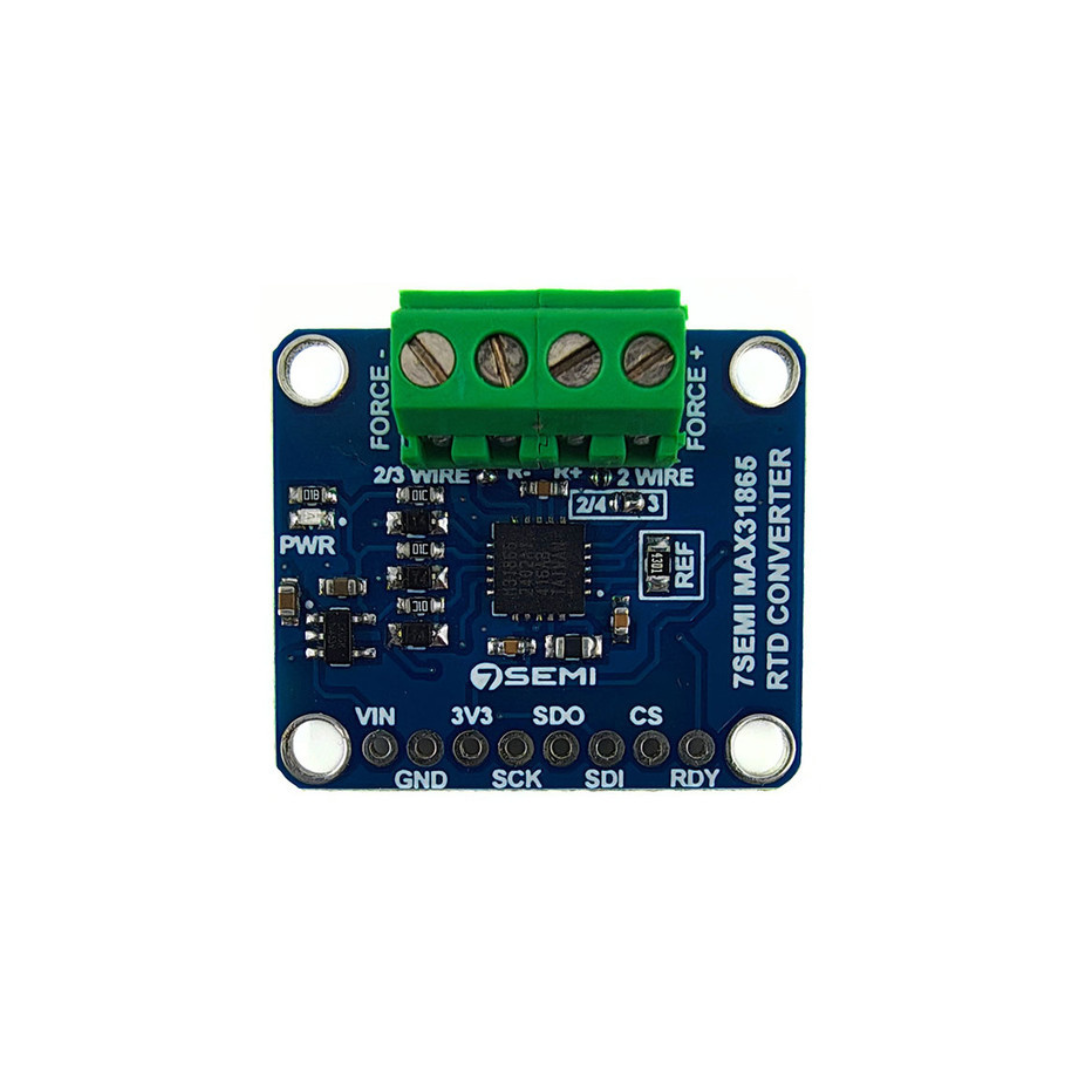

7Semi PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board - MAX31865
Special Price
USD 507.96
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item
the 7Semi PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board with MAX31865: The 7Semi PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board, featuring the MAX31865 RTD amplifier, offers high precision and stability for accurate temperature sensing in industrial and laboratory applications. This board is designed to interface with PT1000 RTDs, converting their resistance to a digital value via the MAX31865, which supports 3-wire configurations. It communicates through an SPI interface, making it compatible with microcontrollers like Arduino and Raspberry Pi. The board includes fault detection features and is ideal for applications requiring precise temperature measurements.
Specifications
| Power Supply: | 3.3V to 5V DC |
|---|---|
| Temperature Range: | -200°C to +850°C |
| Accuracy: | ±0.5°C (max) |
| Digital Output: | 15-bit ADC resolution |
| Fault Detection: | Open RTD, shorted RTD, and over-temperature protection |
