Name: 7Semi OPT3004 Digital Ambient Light Sensor (ALS) Breakout I2C STEMMA QT / Qwiic
Brand: 7Semi OPT3004 Digital Ambient Light Sensor (ALS) Breakout I2C STEMMA QT / Qwiic
Rating: 5 (1 reviews)

7Semi OPT3004 Digital Ambient Light Sensor (ALS) Breakout I2C STEMMA QT / Qwiic

7Semi OPT3004 Digital Ambient Light Sensor (ALS) Breakout I2C STEMMA QT / Qwiic

Brand: 7semi

Features

7 days service Replacement

1 Year Warranty

Pay on Delivery

Secure Transactions

₹988.2 (Incl. of all taxes)

₹810.32

+ ₹177.88 GST

~~₹1,778~~ 44% Off

Stock: Outofstock

This product is currently out of stock.

For B2B orders, contact us on

sales@elemart.com

+919569227788

About this item

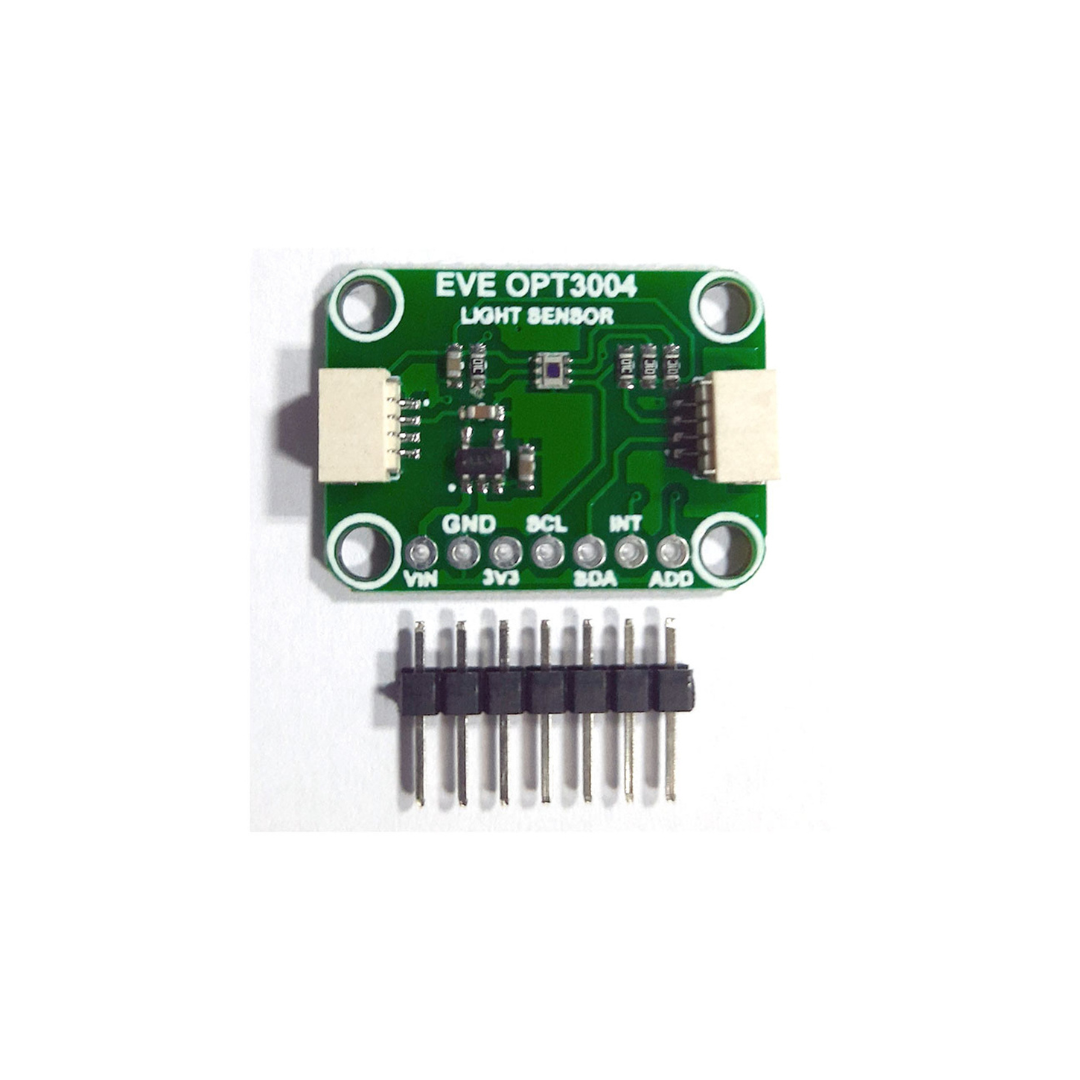

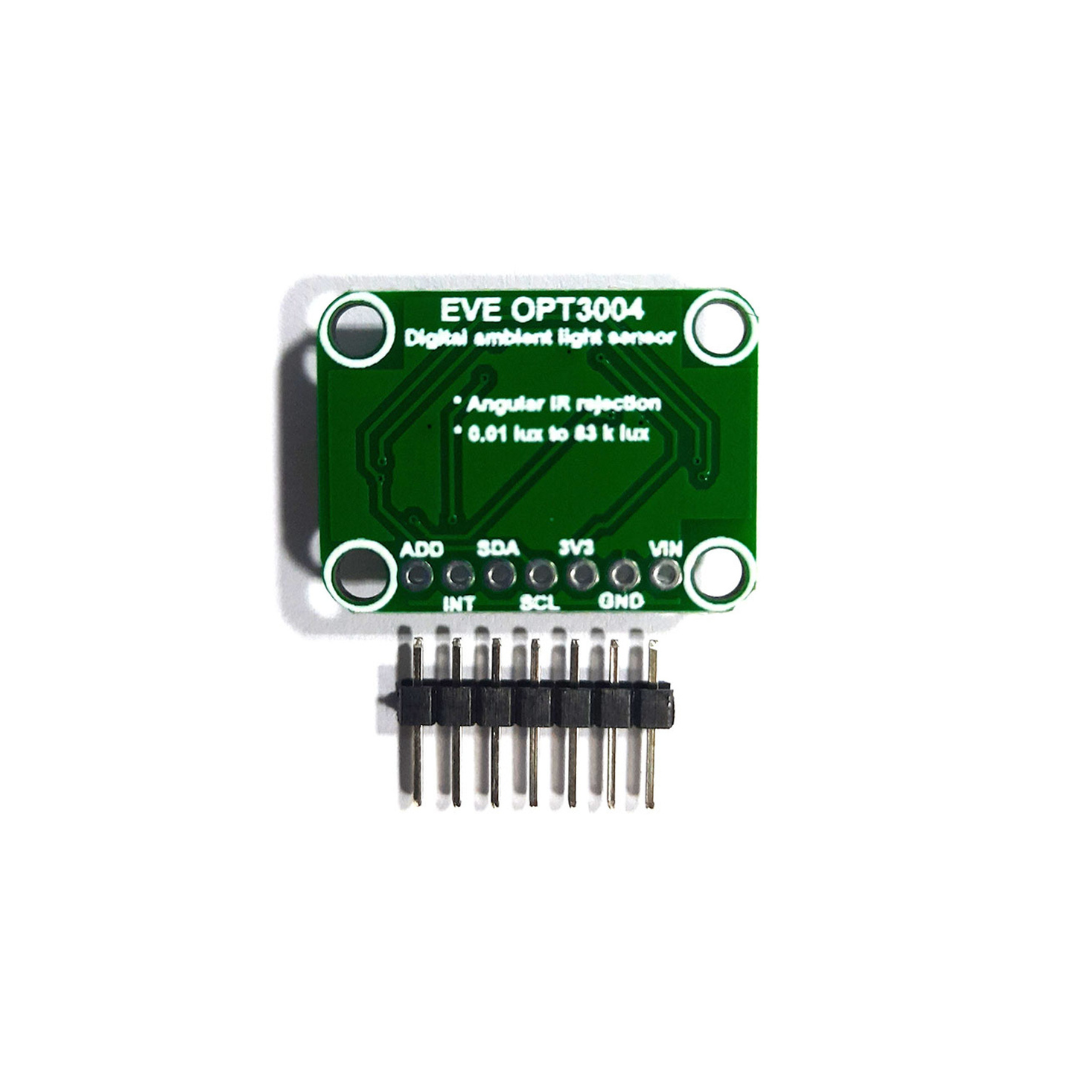

The 7Semi OPT3004 Ambient Light Sensor Breakout is a compact and precise module designed to measure visible light intensity with high accuracy. Utilizing the OPT3004 sensor, it offers a wide dynamic range from 0.01 lux to 83,000 lux, making it suitable for various applications such as smart lighting, energy management, and environmental monitoring. The breakout board features an I²C interface for easy integration with microcontrollers and supports both 3.3V and 5V systems. Its small form factor and low power consumption make it ideal for portable and battery-powered devices, providing reliable ambient light sensing capabilities.

Specifications

Light Measurement Range :	0.01 lux to 83,000 lux
Accuracy:	±1.5% (typical) at 100 lux
Interface:	I²C (up to 1 MHz)
Supply Voltage:	1.8 V to 3.6 V
Power Consumption:	10 µA (typical) in shutdown mode; 1.5 mA (typical) during measurement
