7Semi SHT41 Temperature & Humidity Sensor Tiny Breakout I2C Qwiic Compatible
Special Price
USD 228.3
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item

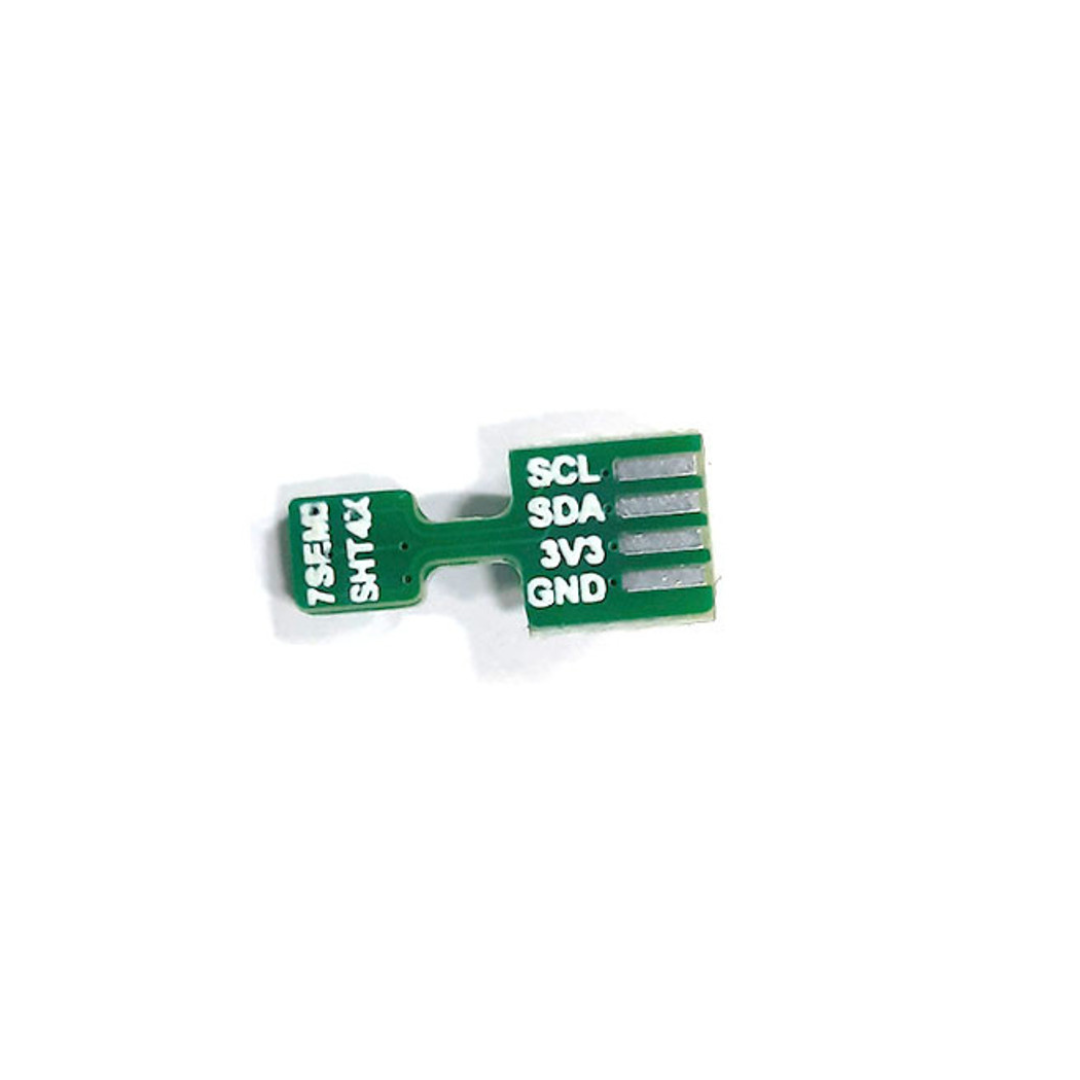

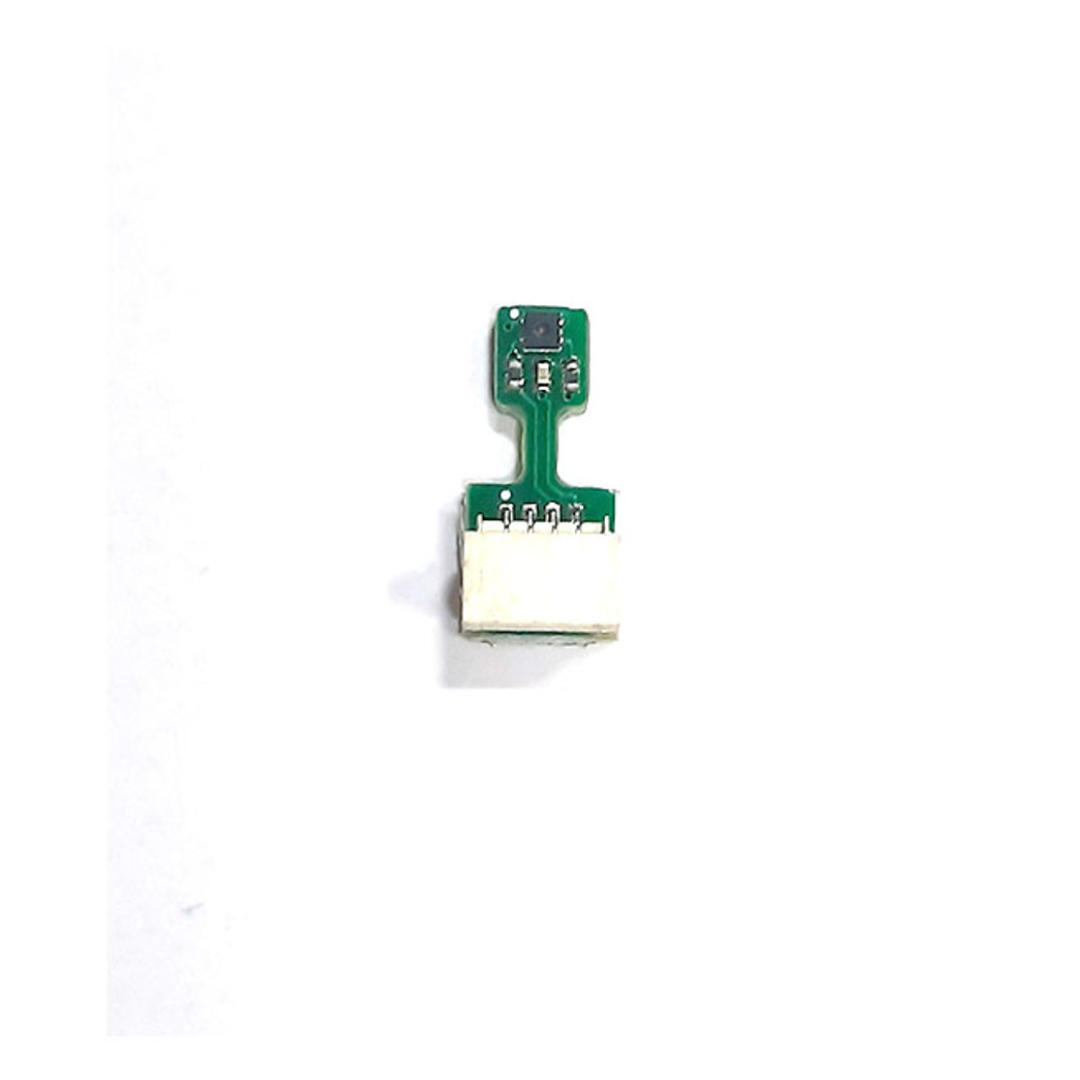

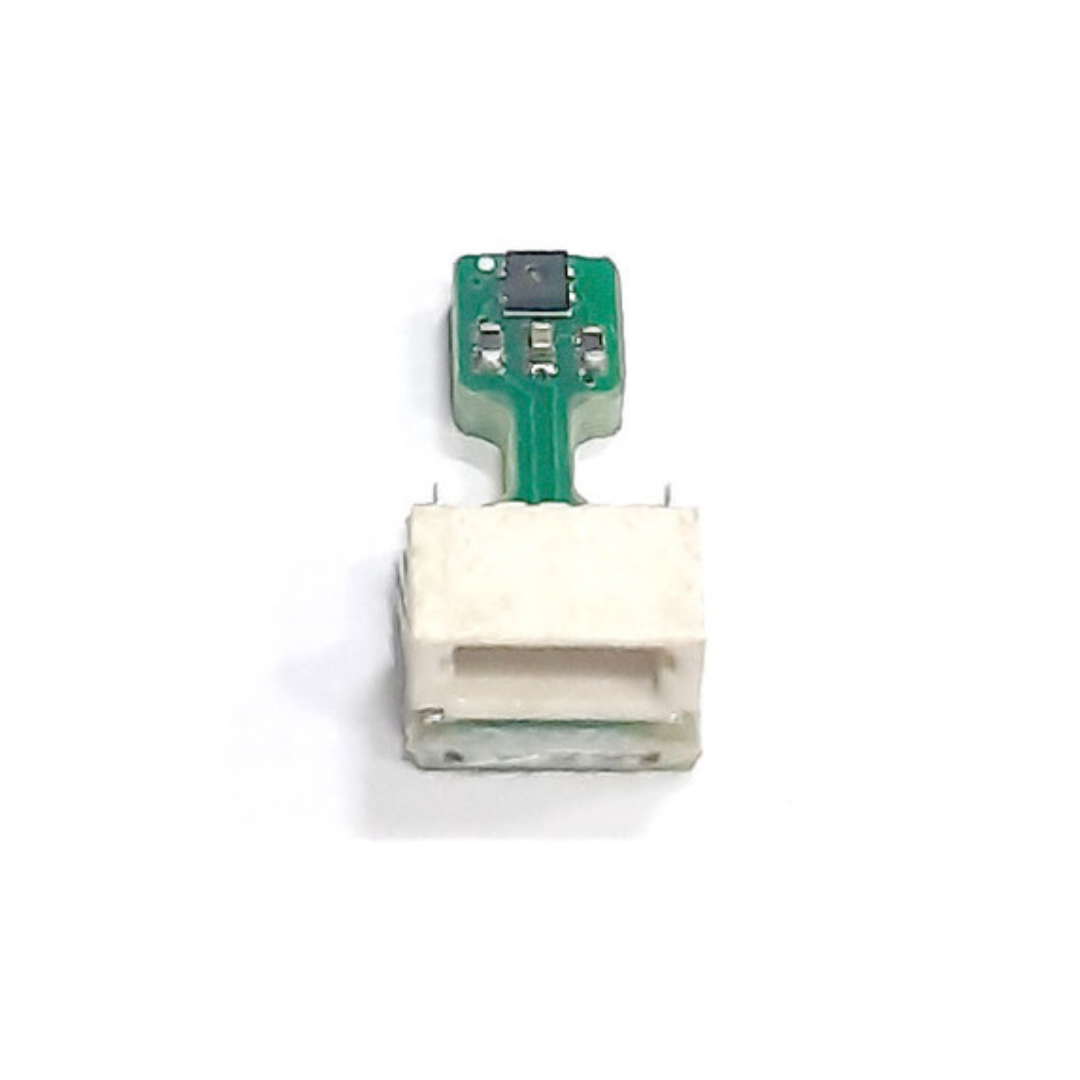

The 7Semi SHT41 Temperature & Humidity Sensor Breakout is a compact, high-precision module designed for accurate environmental monitoring in IoT applications. It features a 4-pin 1.27mm pitch header, facilitating easy integration into projects. Operating at 3.3V with ultra-low current consumption (below 0.15mA in low-power mode), it's ideal for battery-powered systems. The sensor offers a wide measurement range: temperature from –40°C to +125°C with ±0.2°C accuracy, and humidity from 0% to 100% RH with ±1.8% accuracy (25% to 75% RH). Its I²C interface supports multiple preconfigured addresses, ensuring versatile connectivity for various applications.
Specifications
| Temperature Range : | –40 °C to +125 °C |
|---|---|
| Humidity Range: | 0 % to 100 % RH |
| Temperature Accuracy: | ±0.2 °C (typical) |
| Humidity Accuracy: | ±1.5 % RH (typical) |
| Communication Interface: | I²C (up to 1 MHz) |
