7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 20V/V Gain
Special Price
USD 629.5
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item

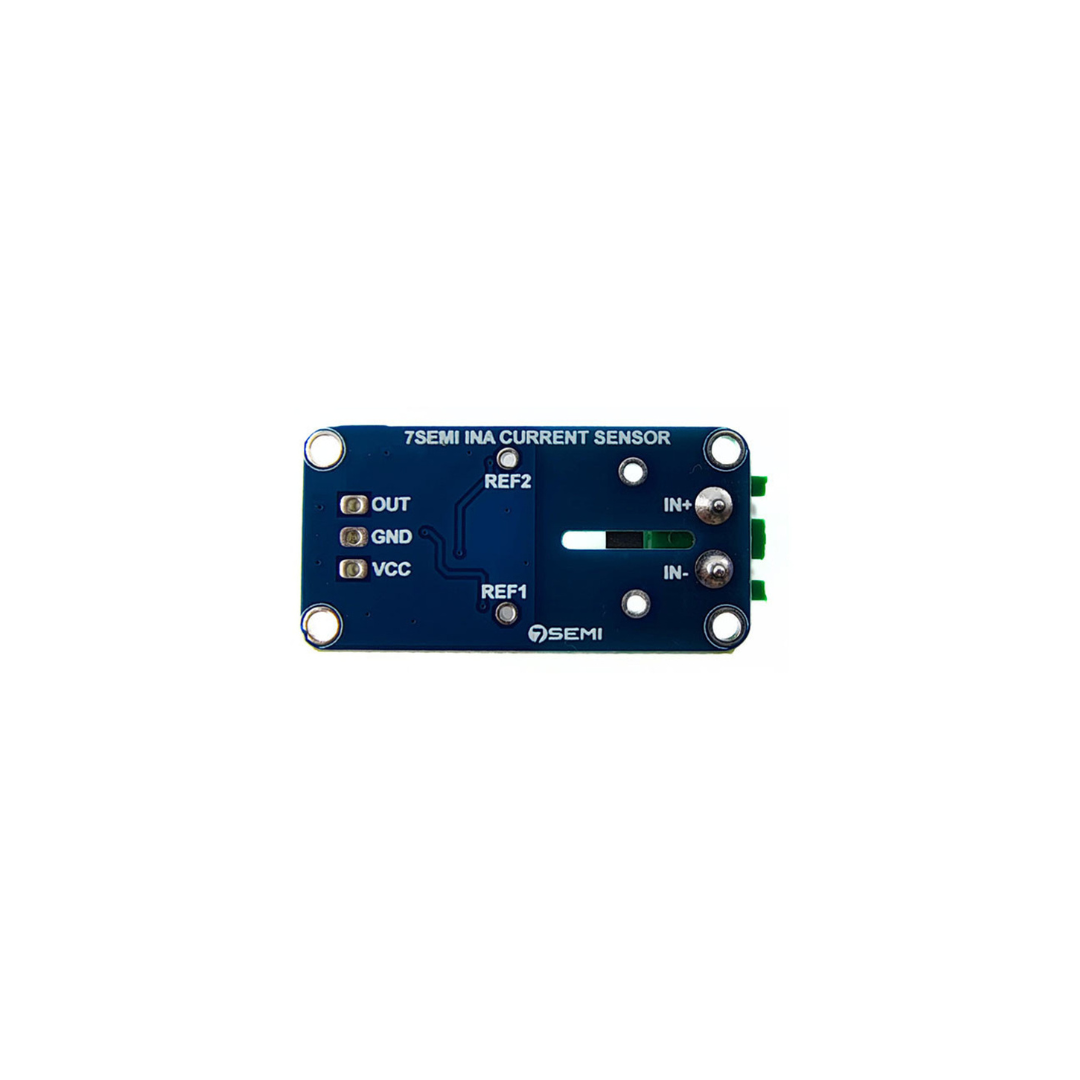

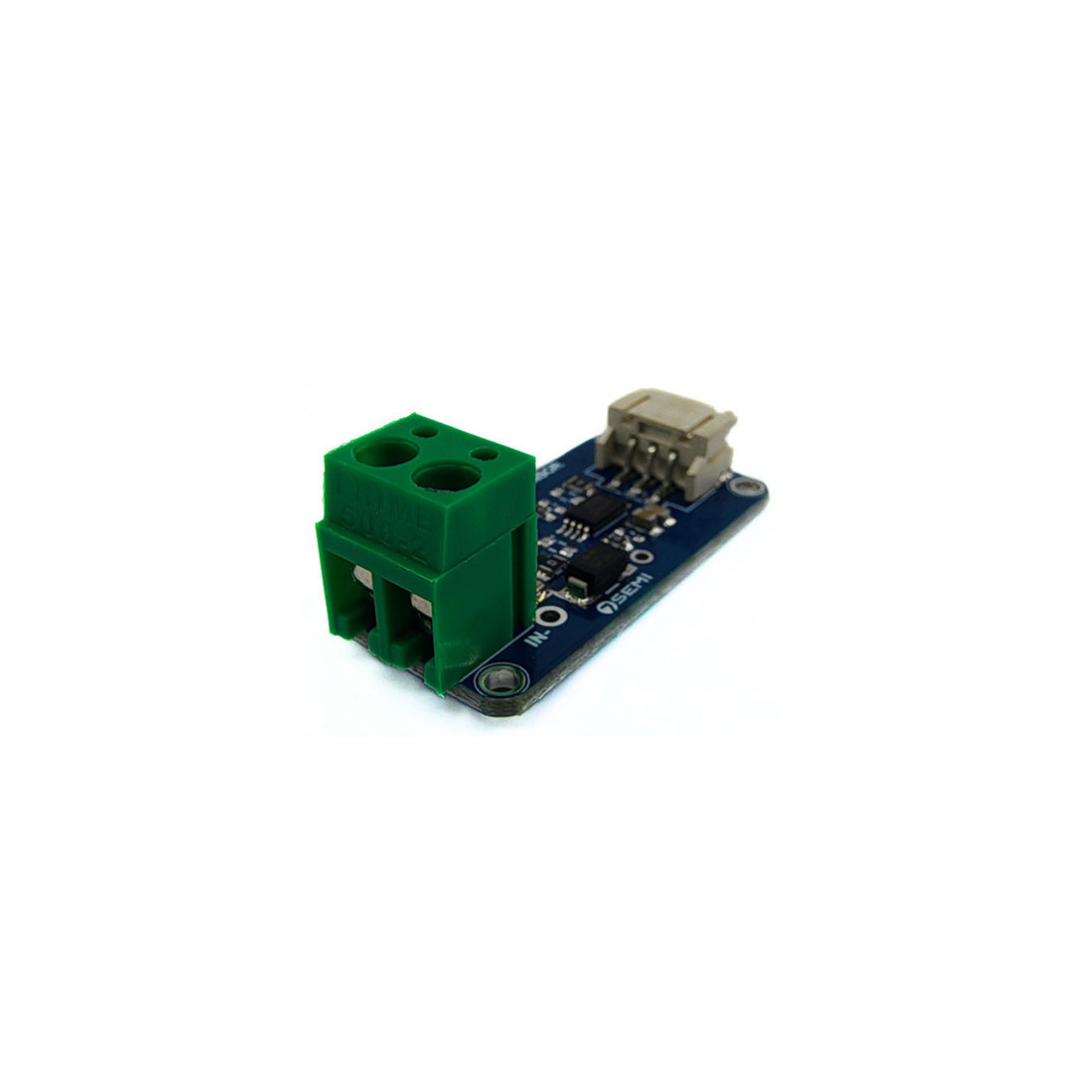

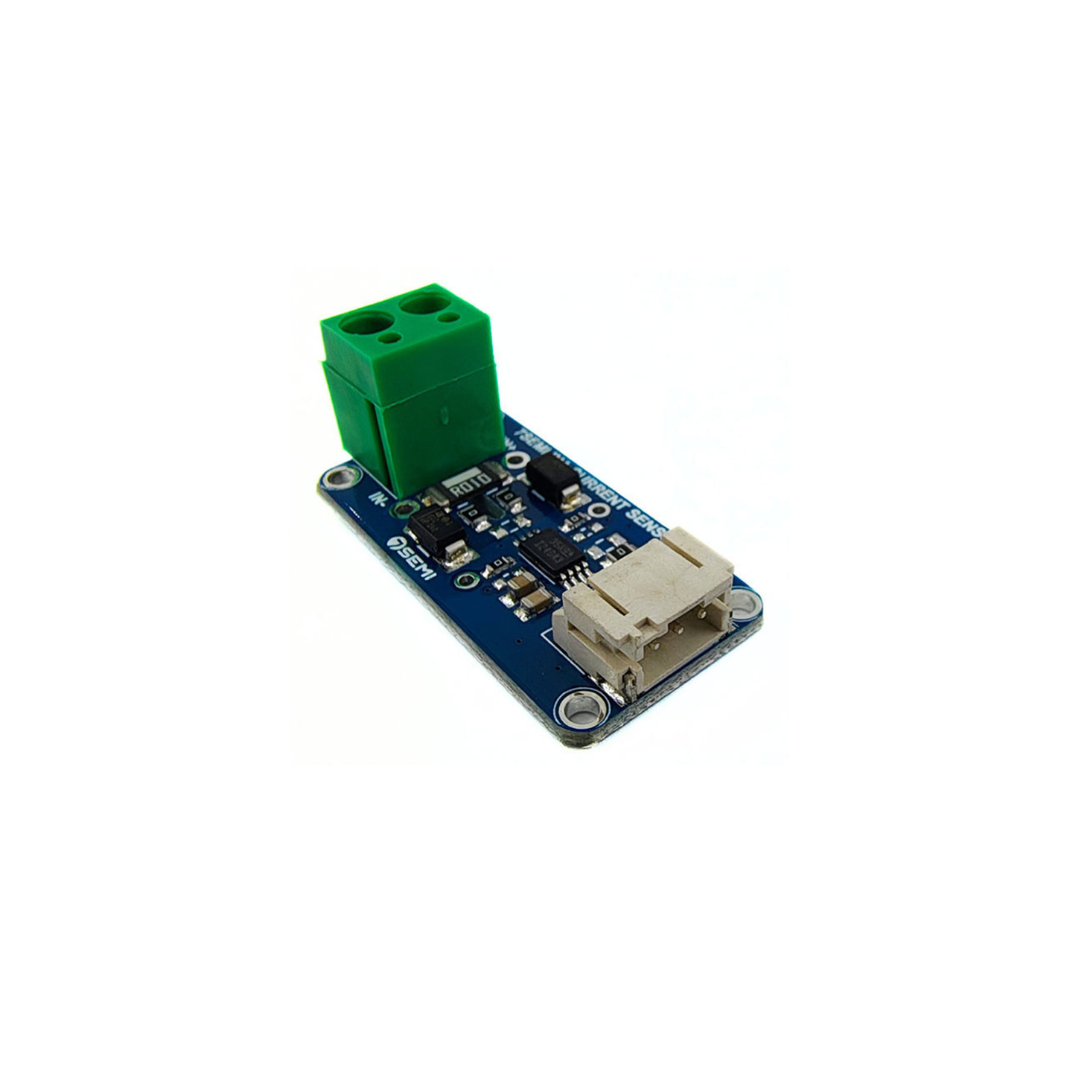

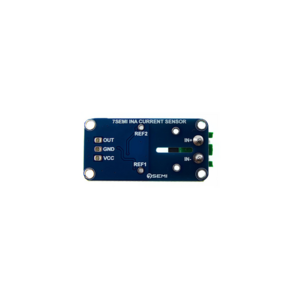

The 7Semi INA240 –4 V to 80 V Bidirectional Current Sense Amplifier Breakout (20 V/V gain) offers precise current measurements across a broad voltage range. It incorporates the TI INA240A1, delivering a fixed 20 V/V gain with ultra-low offset and drift. Its enhanced PWM rejection ensures clean readings in noisy environments, making it ideal for motor drives, battery management, solenoids, and power monitoring. The compact breakout board exposes voltage output proportional to sensed current and supports bidirectional current sensing down to low-side applications. Operating from a 2.7 V to 5.5 V supply and consuming only ~2.4 mA, it suits embedded and industrial systems.
Specifications
| Common-Mode Voltage Range : | –4 V to +80 V |
|---|---|
| Gain: | 20 V/V (INA240A1) |
| PWM Rejection: | Enhanced for noisy environments : |
| Supply Voltage & Current: | 2.7 V–5.5 V, draws ~2.4 mA |
| Common-Mode Rejection: | ~132 dB DC CMRR |
