About this item

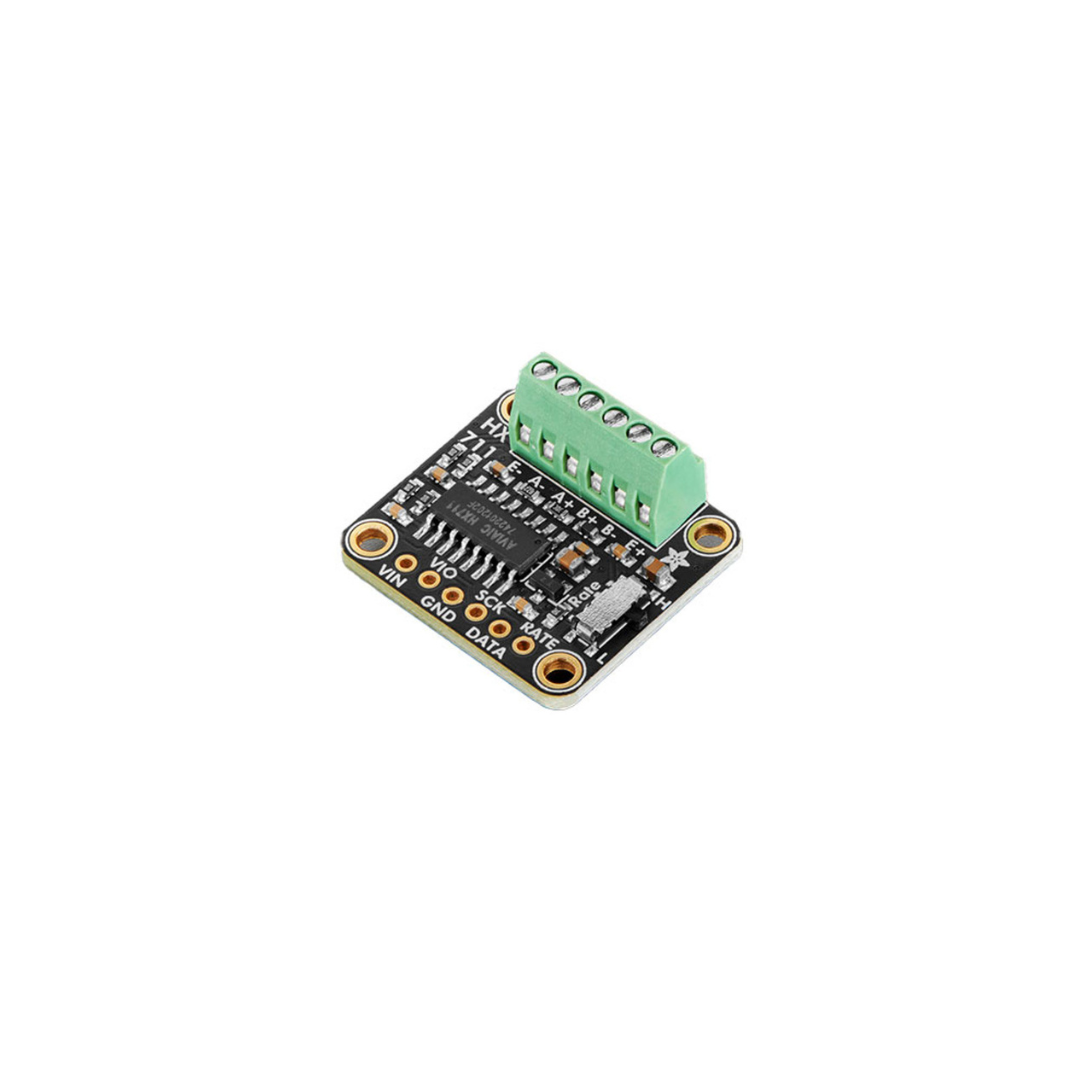

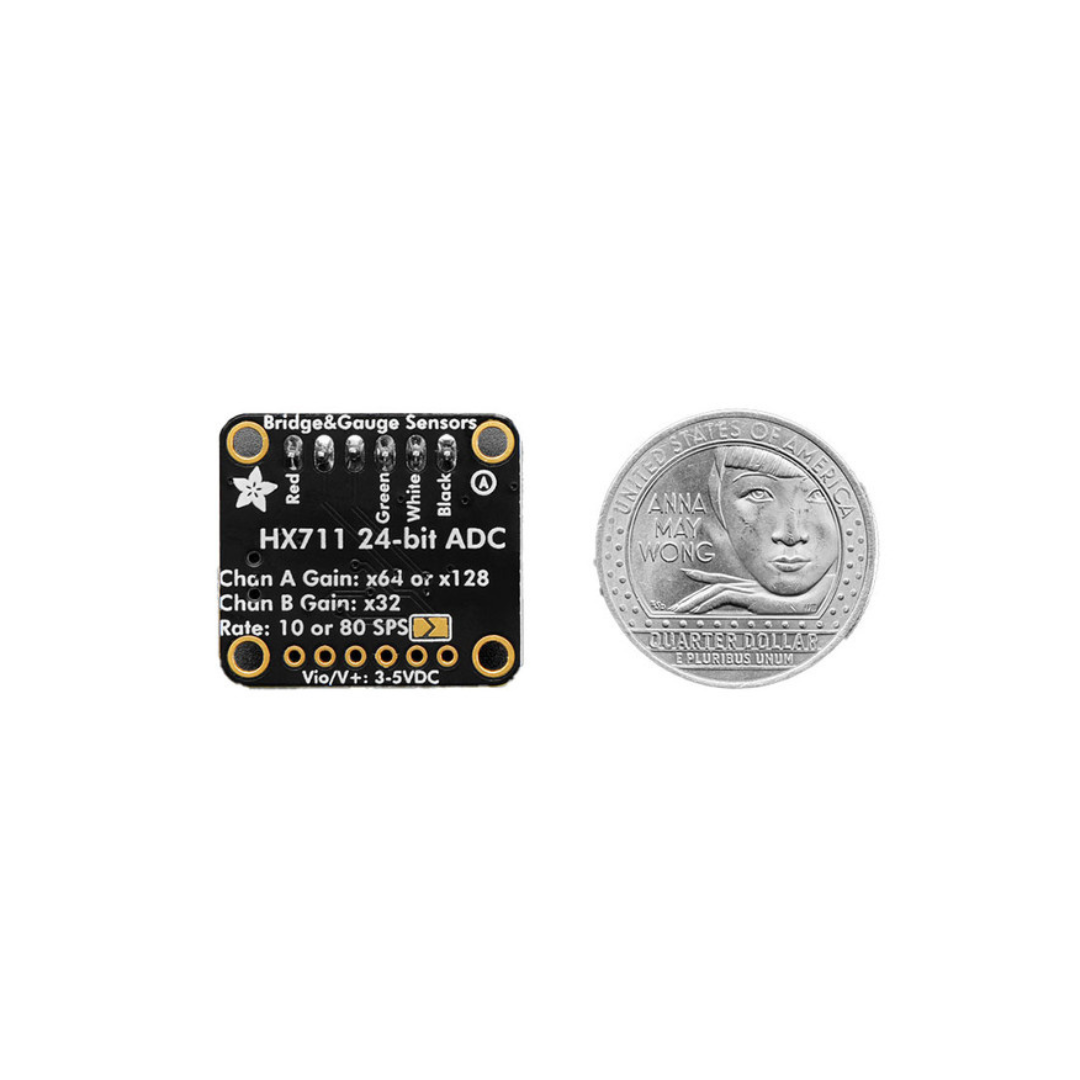

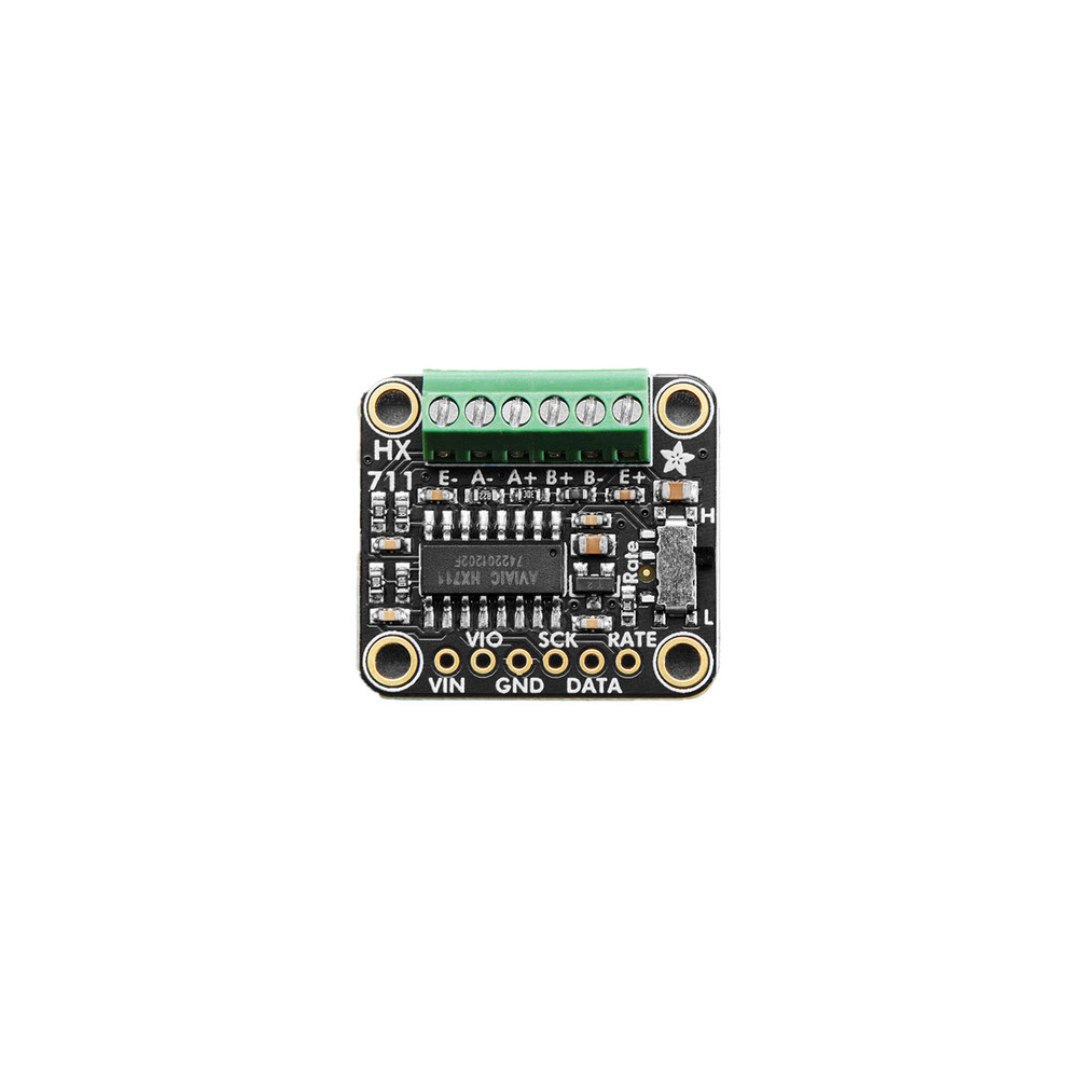

The Adafruit HX711 24-bit ADC for Load Cells / Strain Gauges is a high-resolution analog-to-digital converter designed for precise measurement of strain gauges and load cells. Featuring a 24-bit differential ADC with selectable gains of 32 (B channel) and 64 or 128 (A channel), it ensures accurate data acquisition. The board includes a 6-pin terminal block for easy connection to 4-wire Wheatstone bridge sensors, supporting both A and B channels. With selectable output data rates of 10SPS or 80SPS, it offers flexibility for various applications. Operating at a supply voltage range of 2.6V to 5.5V, it consumes less than 1.5mA during normal operation and less than 1µA in power-down mode, making it suitable for low-power projects. The breakout board is compatible with microcontrollers like Arduino and Raspberry Pi, facilitating seamless integration into your projects. Its compact dimensions of 25.5mm x 23.0mm x 12.1mm and lightweight design (3.9g) make it ideal for space-constrained applications
