7Semi BNO085 9-DOF Orientation IMU Fusion Nano Breakout
Brand: 7semi
Features
₹3,104.5
+ ₹3,104.5 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

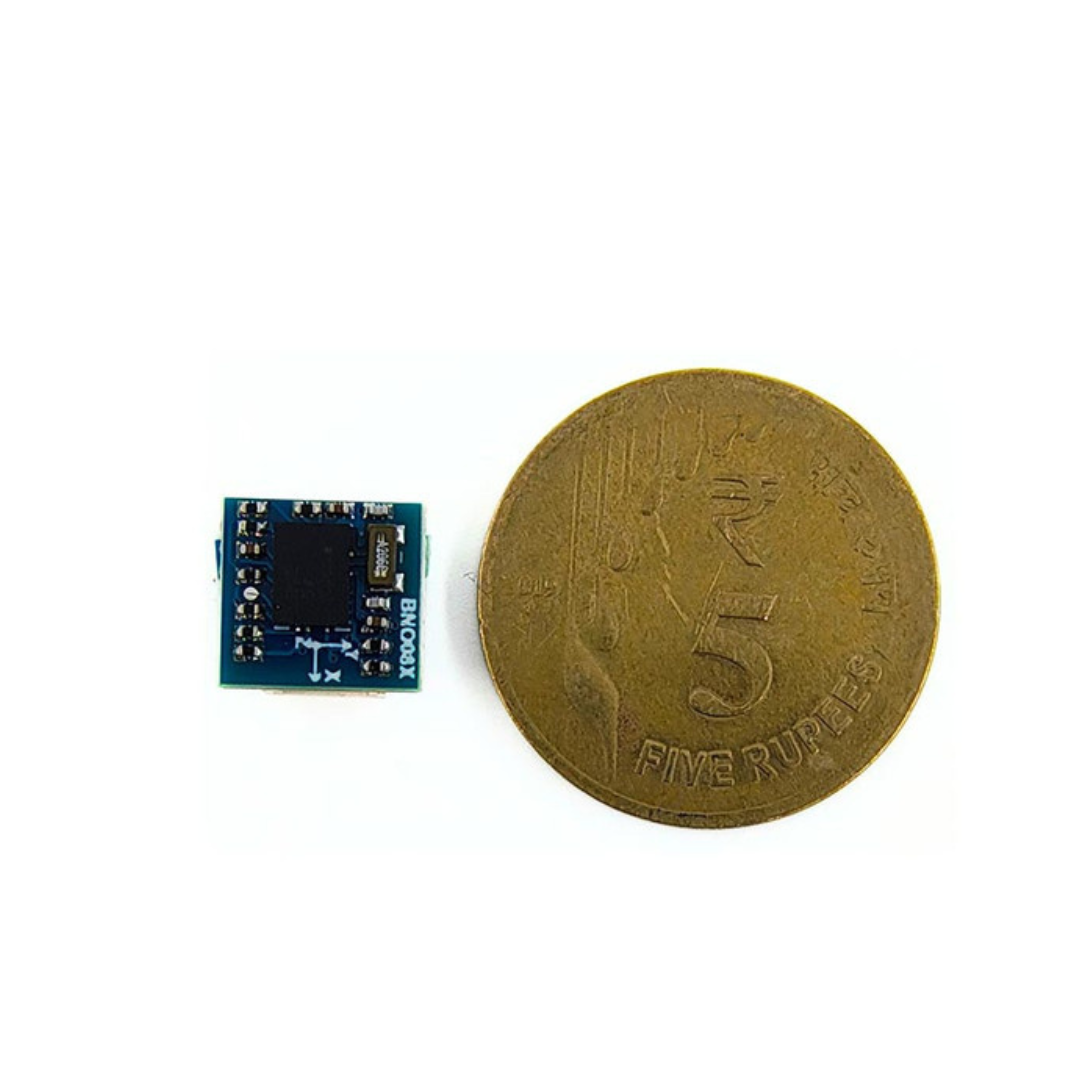

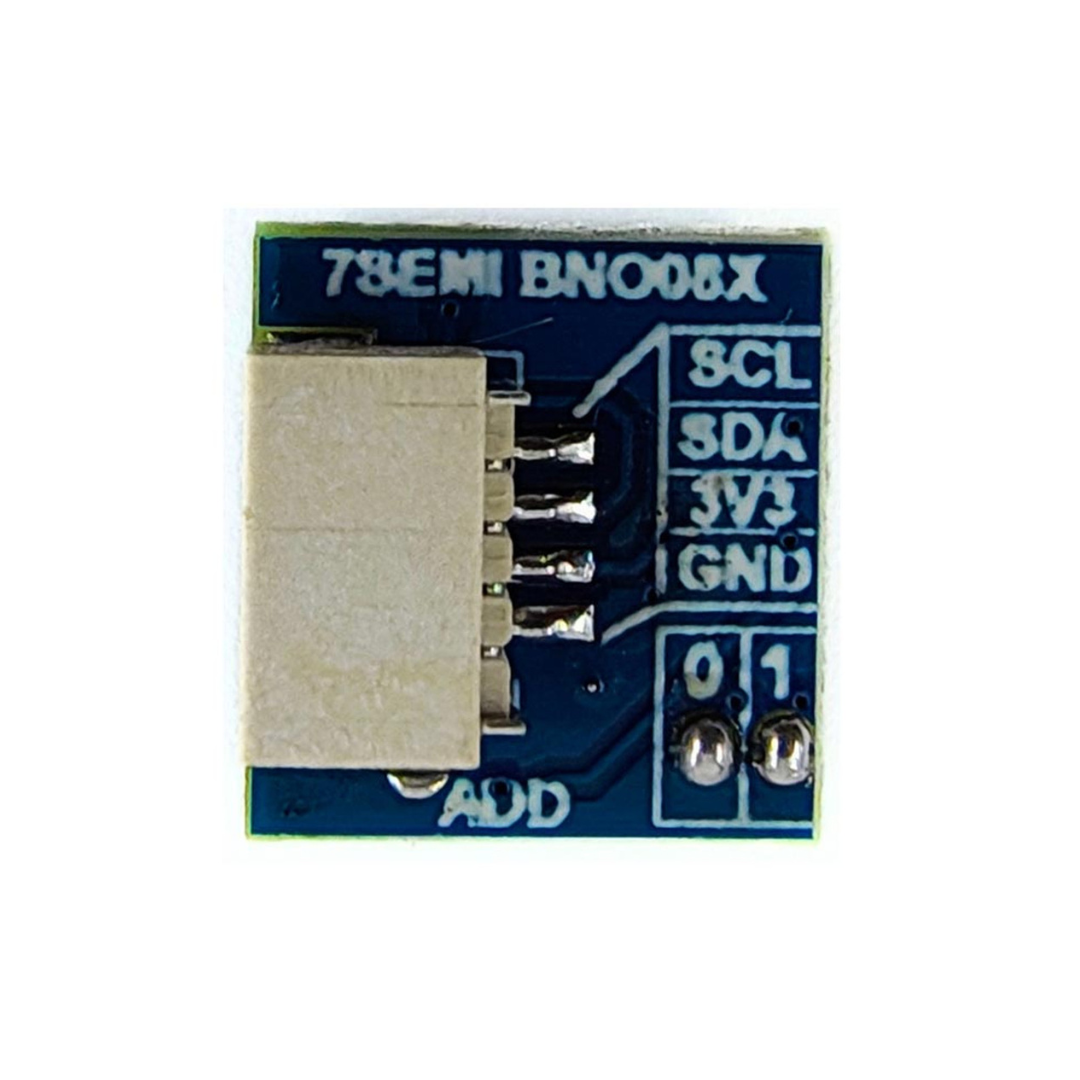

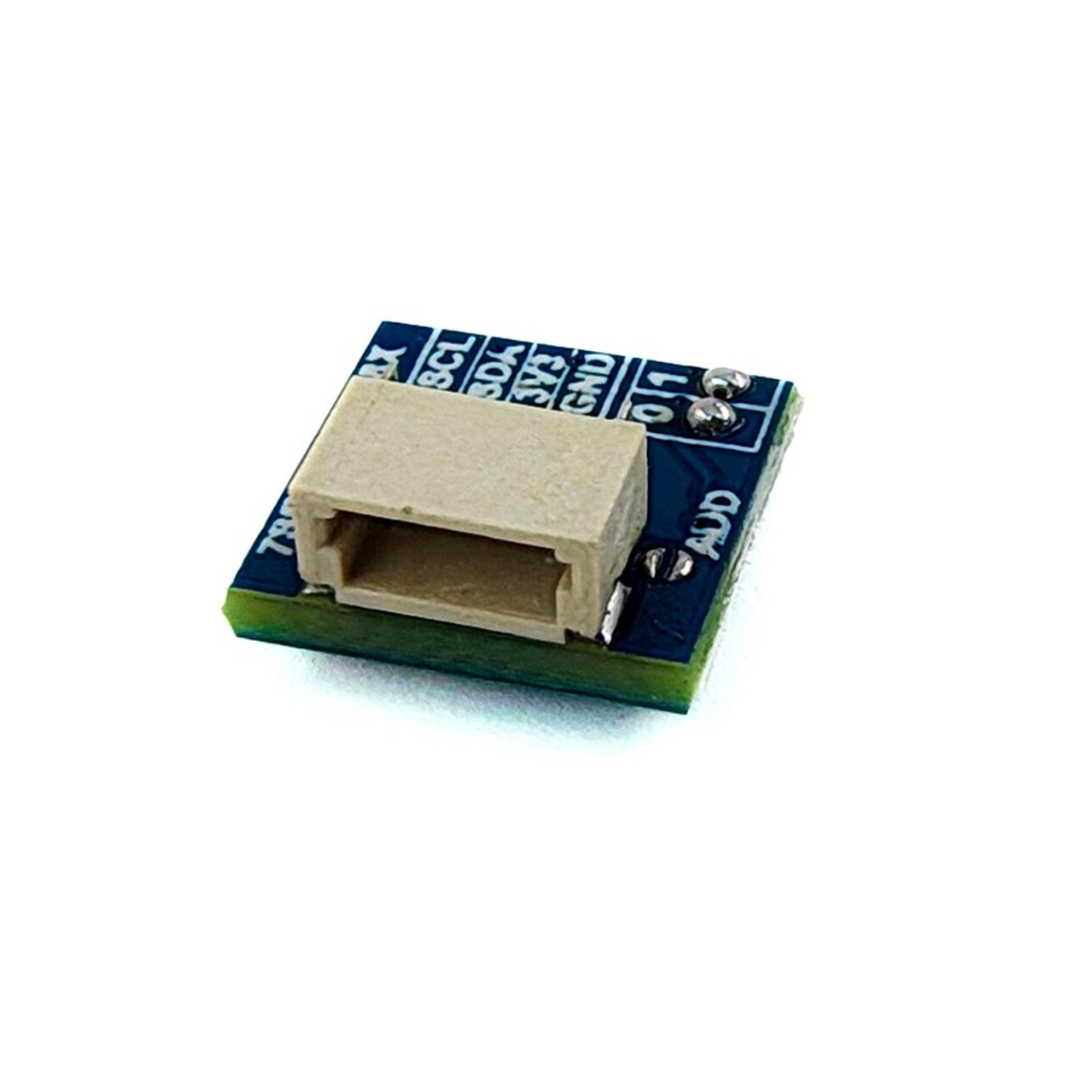

The 7Semi BNO085 9‑DOF Orientation IMU Fusion Nano Breakout is a compact, high-performance sensor module ideal for robotics, AR/VR, and IoT projects. Powered by Bosch–Ceva technology featuring a 3-axis accelerometer, gyroscope, and magnetometer within a 32‑bit ARM Cortex‑M0+, it delivers advanced sensor fusion via preloaded SH‑2 firmware. It offers accurate outputs including acceleration vectors, angular velocity, magnetic field strength, rotation quaternions, plus activity detection (e.g., taps, steps, shakes) and stability classification. Compact and integration-friendly, it supports I²C, SPI, and UART, includes a 3.3 V regulator, dual Qwiic/Stemma QT connectors, and is backward-compatible with BNO080 software.
Specifications
| Supply Voltage: | 3.3 V |
|---|---|
| Interface: | I²C |
| Processor: | ARM Cortex‑M0+ |
| Sensor Fusion: | CEVA SH-2 firmware for 9-axis fusion |
| Motion Detection: | Tap, step, shake, stability & activity support |
