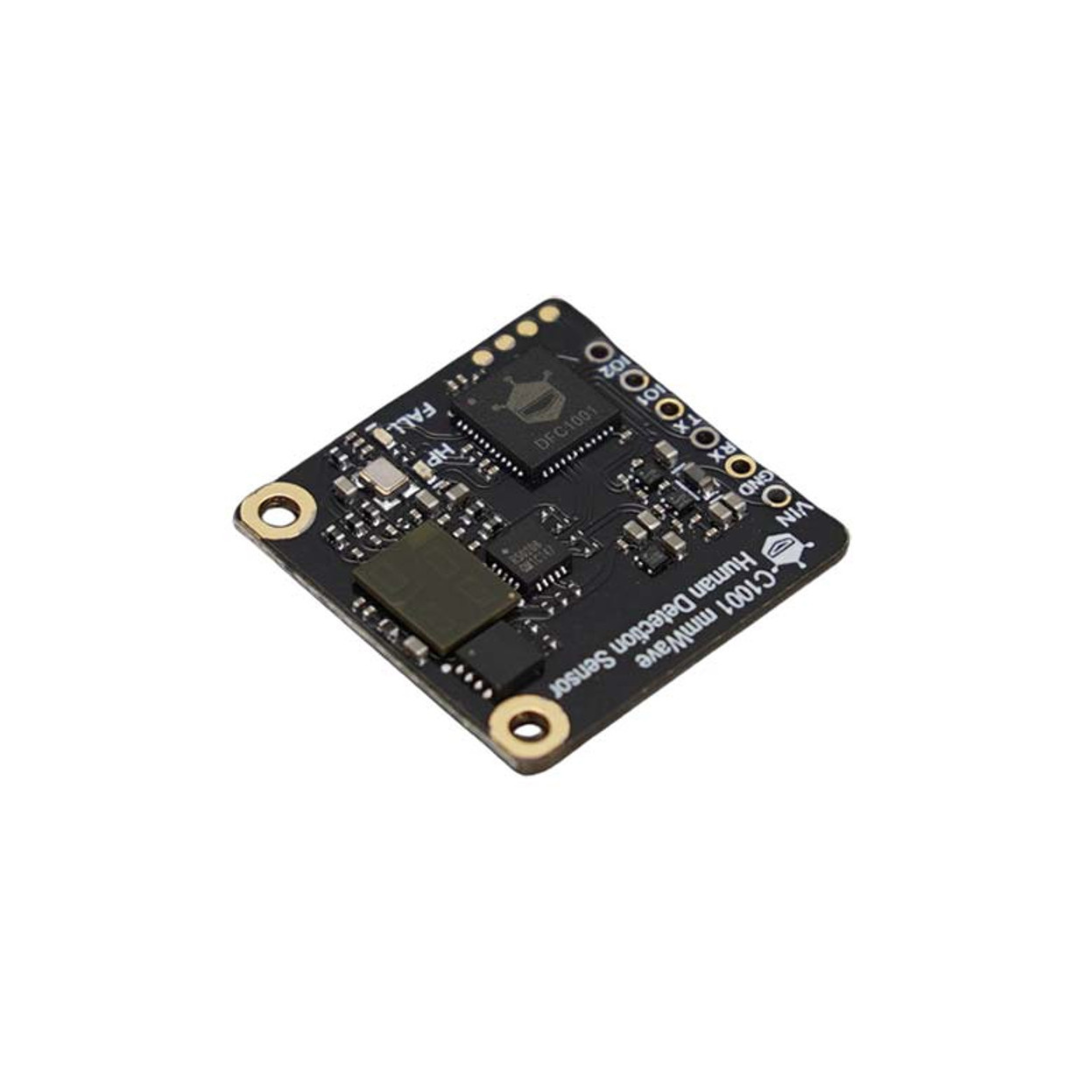

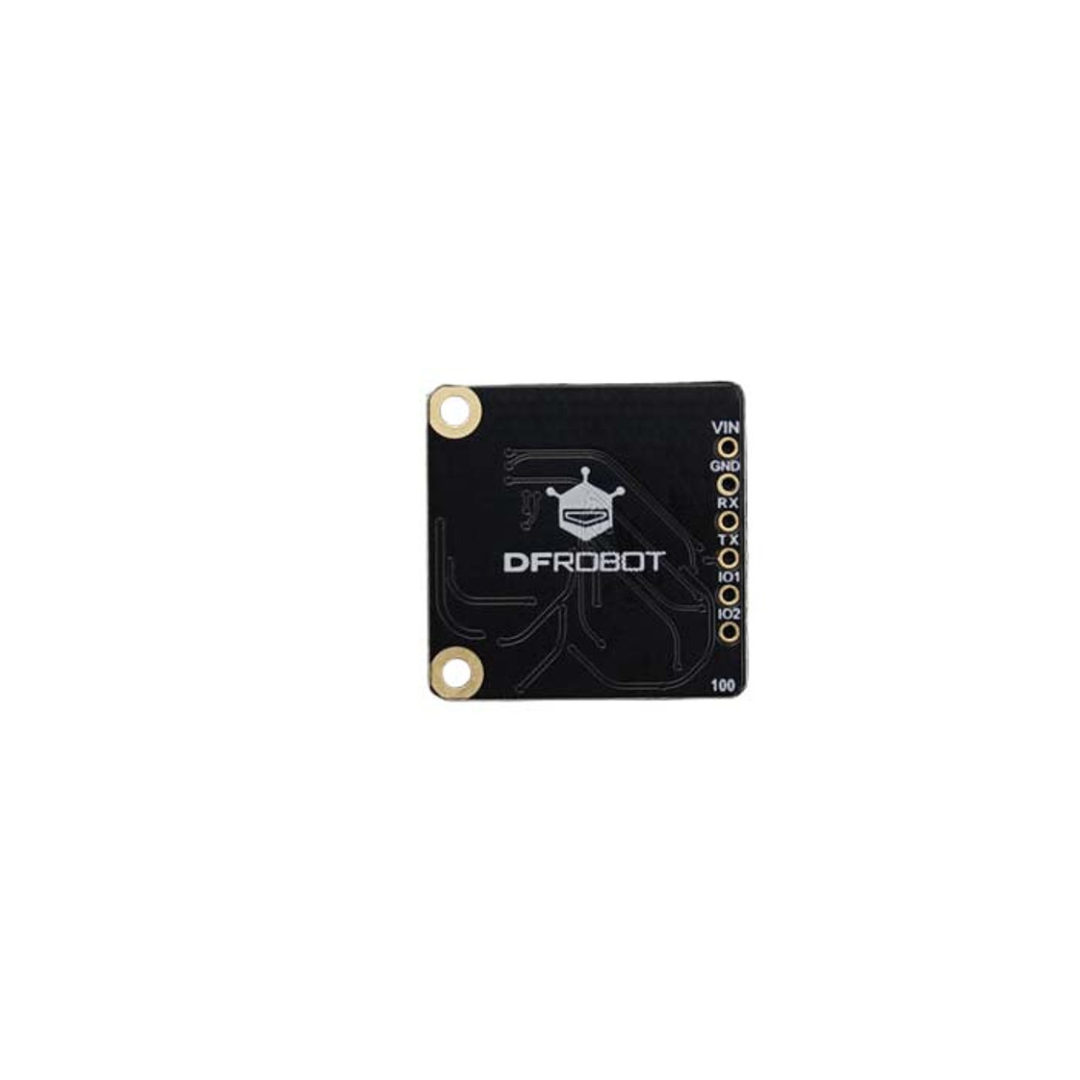

The C1001 60GHz mmWave Indoor Fall Detection Sensor is an advanced radar module designed for precise human detection and monitoring. Operating at a frequency of 61–61.5 GHz, it offers a wide detection range of up to 11 meters with a 100° × 100° field of view. Compatible with platforms like Arduino, ESP32, and micro:bit, it supports integration via the Arduino IDE. The sensor utilizes a point cloud imaging algorithm to accurately detect human postures, including falls and immobility. Additionally, it monitors sleep patterns by tracking body movement, breathing, and heart rate within a range of 0.4 to 2.5 meters. With an operating voltage of 5V and current consumption under 100mA, it functions efficiently across a temperature range of -20°C to 60°C.
