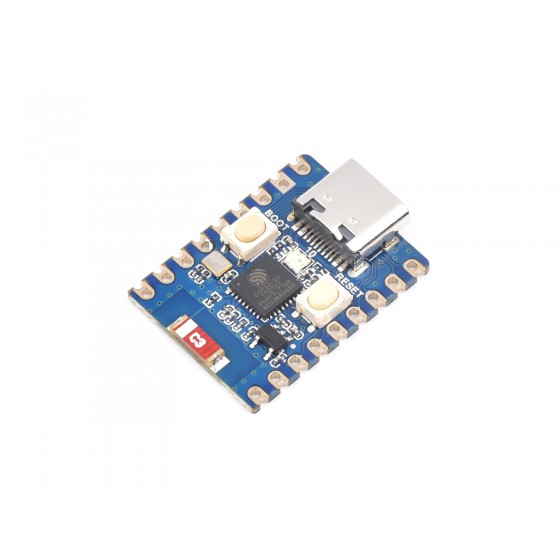

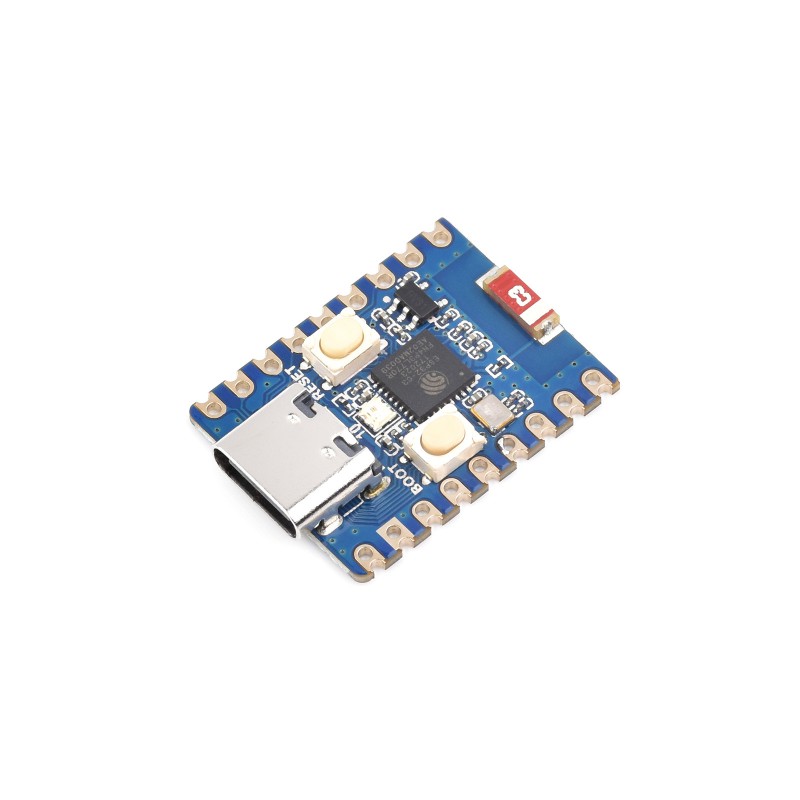

ESP32-C3-Zero Mini Development Board
Brand: Waveshare
Features
- ESP32-C3FH4 RISC-V 32-bit Single-Core Processor
- Operating frequency up to 160MHz
- Built-in 2.4GHz Wi-Fi (802.11 b/g/n)
- Bluetooth 5 Low Energy (BLE 5.0) support
- 4MB onboard Flash memory
- 400KB SRAM and 384KB ROM
- Compact castellated module design for SMT integration
- USB Type-C interface for programming and power
- Integrated ceramic antenna
- 15 multifunction GPIO pins
- Onboard WS2812 RGB programmable LED
- Supports SPI, I2C, UART, I2S, PWM, and ADC
- Hardware encryption accelerator and security features
- Low-power operation for battery-powered devices
- Compatible with Arduino IDE, ESP-IDF, MicroPython, and CircuitPython
- Suitable for IoT, smart home, industrial monitoring, and wearable applications
₹449 (Incl. of all taxes)
₹368.18
+ ₹80.82 GSTStock: Available
Quantity based pricing table
| Select | Min Qty | Max Qty | Unit Price |
|---|---|---|---|
| 1 | 10 | ₹449 | |
| 11 | 30 | ₹429 | |
| 31 | 50 | ₹409 |
About this item
The ESP32-C3-Zero is a compact, low-power Wi-Fi and Bluetooth development board designed for IoT, smart home, wearable, and embedded applications. Powered by the ESP32-C3FH4 SoC from Espressif, the board features a 32-bit RISC-V processor running at up to 160MHz, integrated 2.4GHz Wi-Fi, Bluetooth 5 (BLE), and 4MB onboard Flash memory. Its ultra-compact form factor with castellated edges makes it ideal for direct integration into custom PCBs and space-constrained projects.
The board includes a USB Type-C interface for programming and power, onboard ceramic antenna, programmable RGB LED, and multiple GPIO pins supporting SPI, I2C, UART, I2S, PWM, and ADC functions. Compatible with Arduino IDE, ESP-IDF, MicroPython, and CircuitPython, the ESP32-C3-Zero provides a flexible and powerful platform for wireless embedded development
Specifications
| Product Name | ESP32-C3-Zero |
|---|---|
| Brand | Waveshare |
| Main Chip | ESP32-C3FH4 |
| Wi-Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Mounting Style | Castellated Edge Module / Embedded Integration |
| Operating Voltage | 3.3V Logic |
