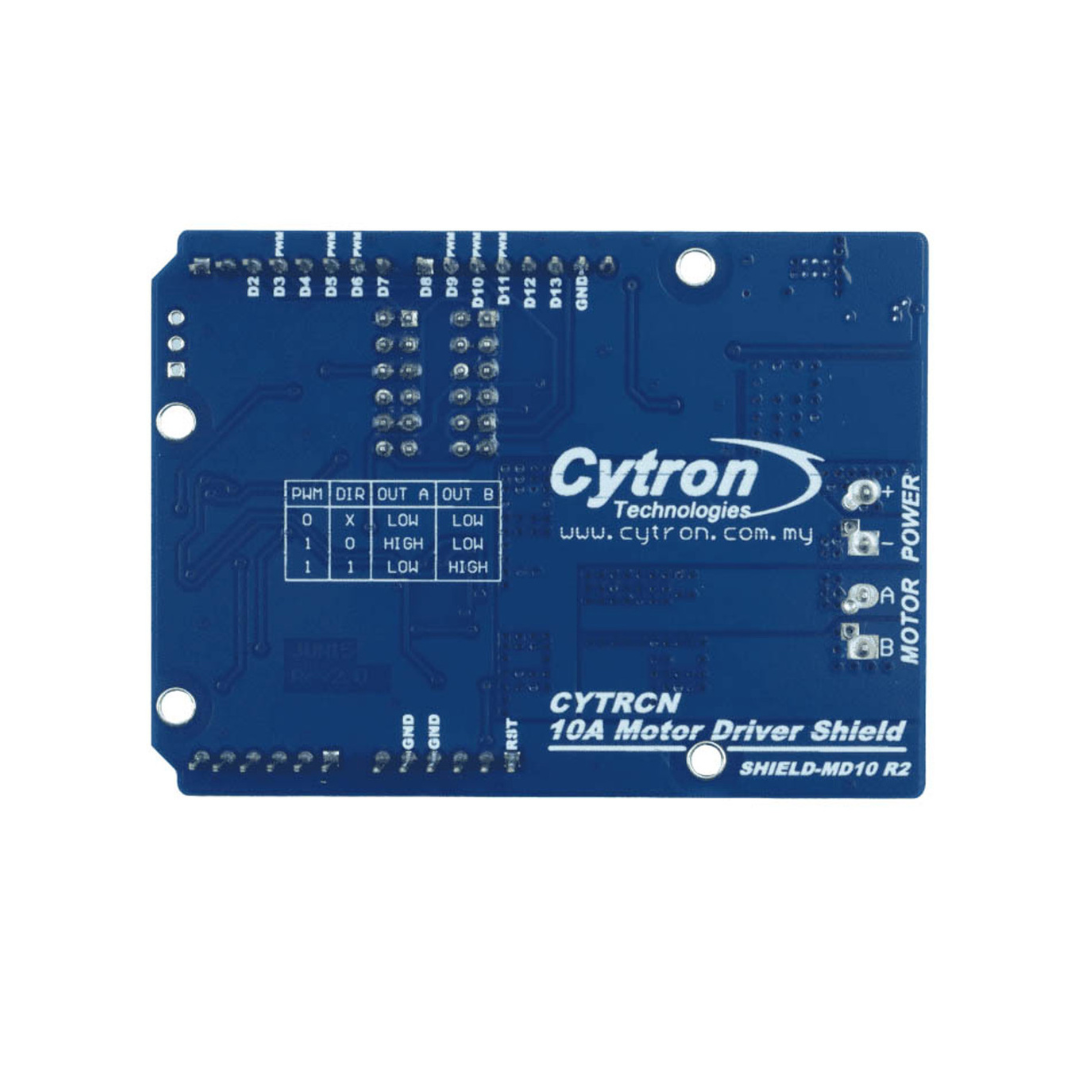

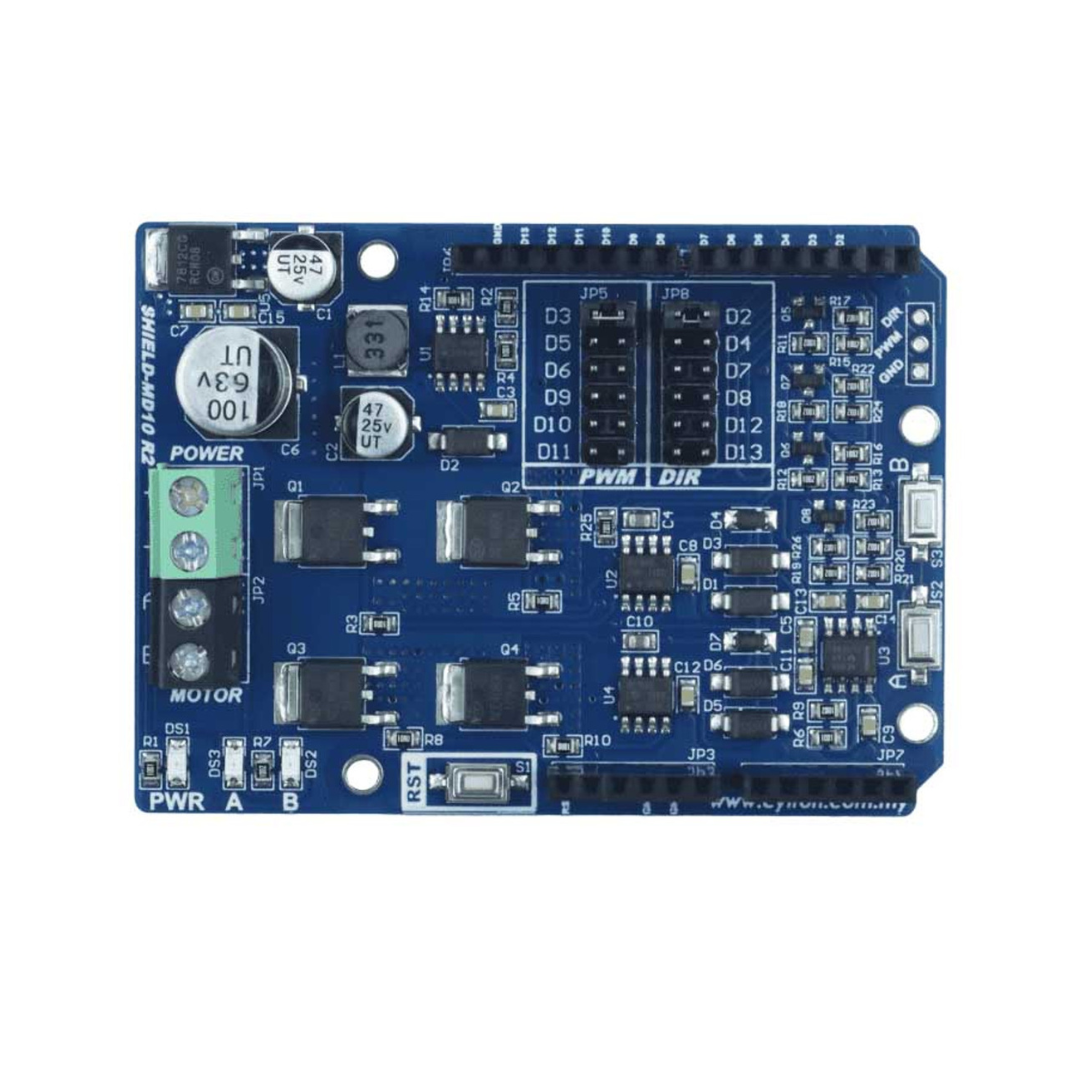

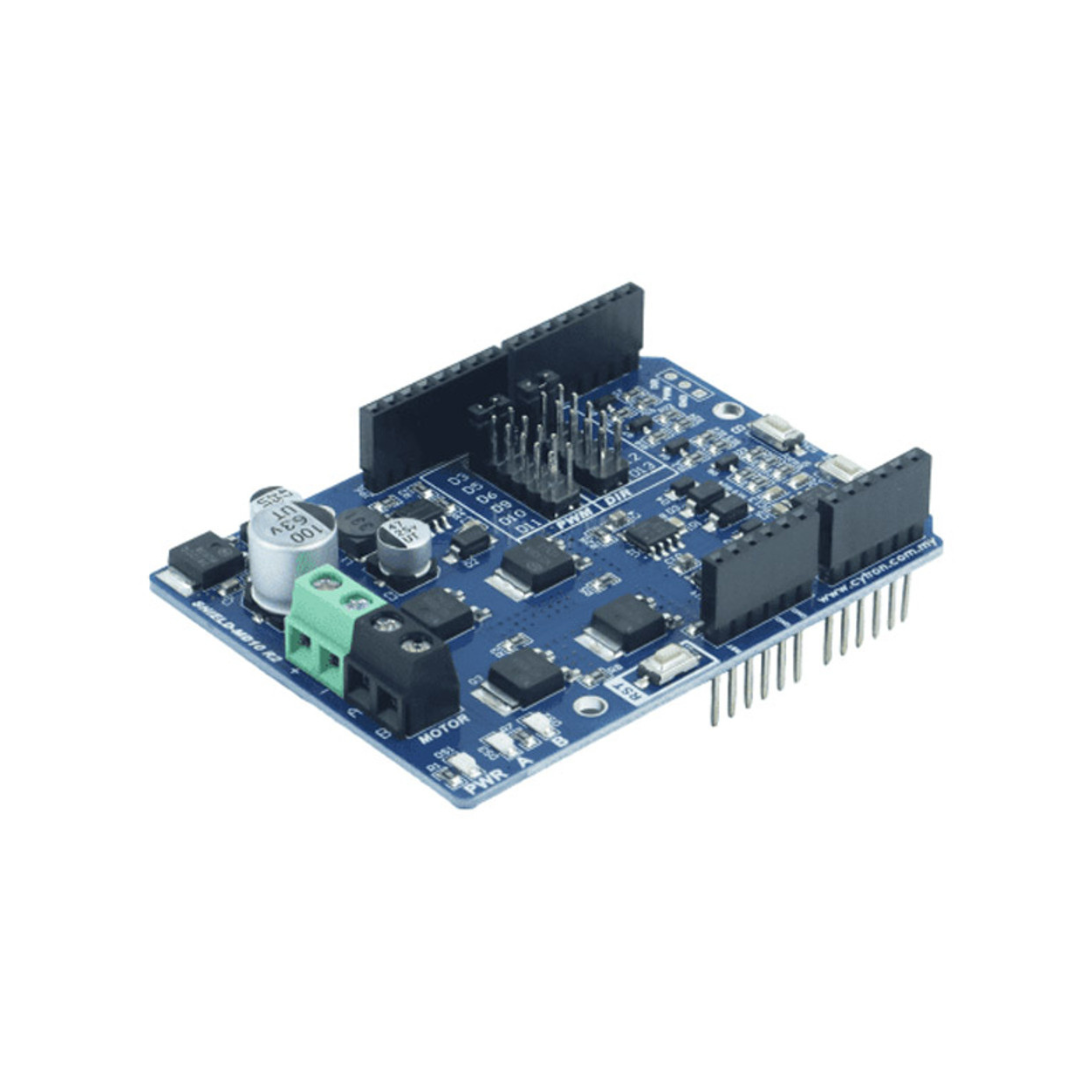

The SHIELD-MD10 Dual H-Bridge DC Motor Driver Module offers bi-directional control for a single brushed DC motor, supporting motor voltage ranges from 7V to 25V (Rev1.0) or 7V to 30V (Rev2.0). It can handle up to 10A of continuous current and peak currents of 15A for up to 10 seconds. Compatible with both 3.3V and 5V logic inputs, this module ensures faster response times with solid-state components, eliminating the wear of mechanical relays. Its fully NMOS H-Bridge design enhances efficiency and removes the need for a heat sink. The module also supports regenerative braking and PWM-controlled speed adjustments up to 10kHz for precise motor control. With a stackable I/O header pin and selectable digital pins for PWM and DIR control, it is a versatile choice for various projects.
