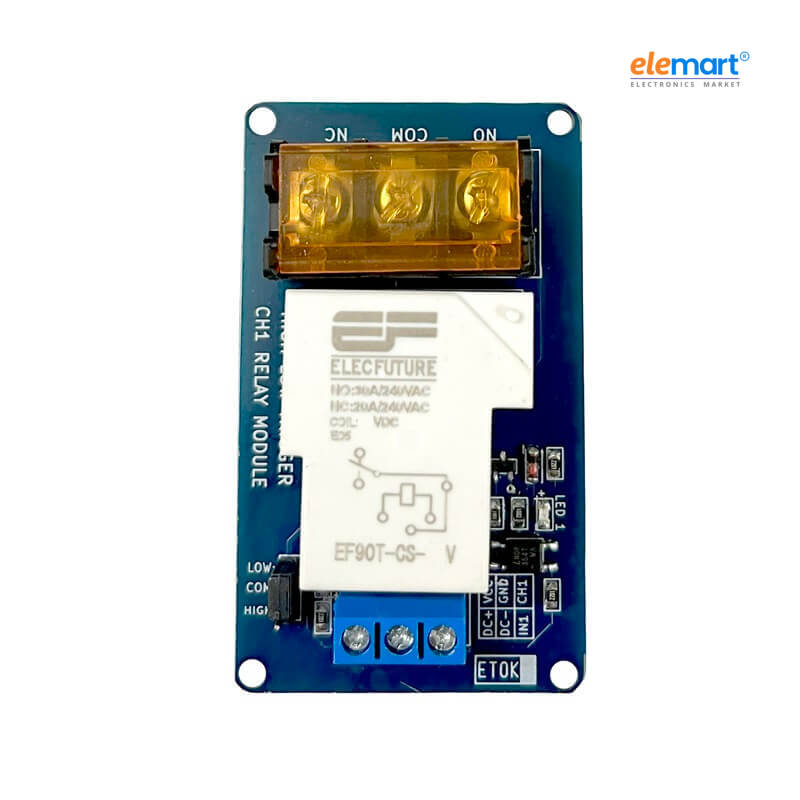

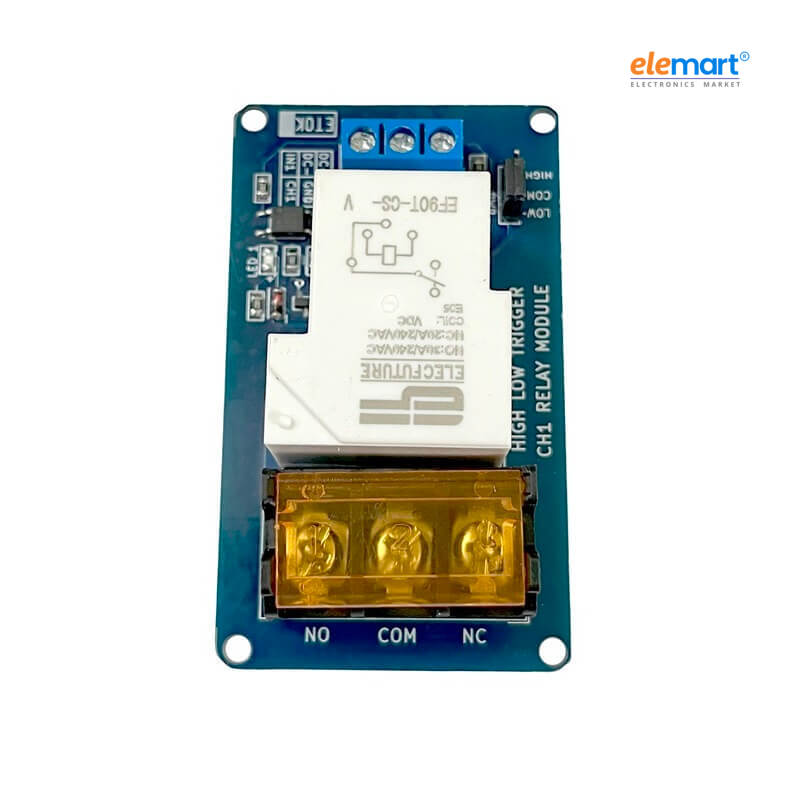

ST30-12-1CH-B 1 Channel 12V 30A Relay Module with Optocoupler Isolation

In Stock
₹299.00 (Incl. of all taxes)
₹245.18
+ ₹53.82 GST
Quantity:
Estimated Delivery
Delivery by Wed, 25 Nov
3 Days
Quantity based pricing table
Select Min Qty Max Qty Unit Price
1 10 ₹299
11 30 ₹279
31 50 ₹259
For B2B orders, contact us on

The ST30-12-1CH-B is an industrial-grade 1-channel relay module designed for reliable switching of high-current AC and DC loads. Equipped with optocoupler isolation, the module provides electrical separation between the control circuit and load circuit, protecting sensitive microcontrollers, PLCs, and embedded systems from voltage spikes and electrical noise.

Supporting both high-level and low-level trigger modes, this relay module offers flexible integration with Arduino, ESP32, Raspberry Pi, PLC controllers, industrial automation equipment, and custom control systems. The onboard high-quality 30A relay allows safe control of heavy electrical loads such as motors, pumps, lighting systems, heaters, and industrial machinery. 43 × 25 mm || Weight | Approx. 30 g | Systems , and high-current load handling are essential.

Condition Brand New
Category 30A Relay Boards
Model Number ST30-12-1CH-B
Relay Channels 1 Channel
Trigger Mode High Level / Low Level Selectable
Relay Contact Type SPDT (NO/NC/COM)
Output Interface NO, NC, COM Screw Terminals
Module Dimensions Approx. 50 × 33 × 24 mm
Application Type Industrial Automation & High-Power Load Control
