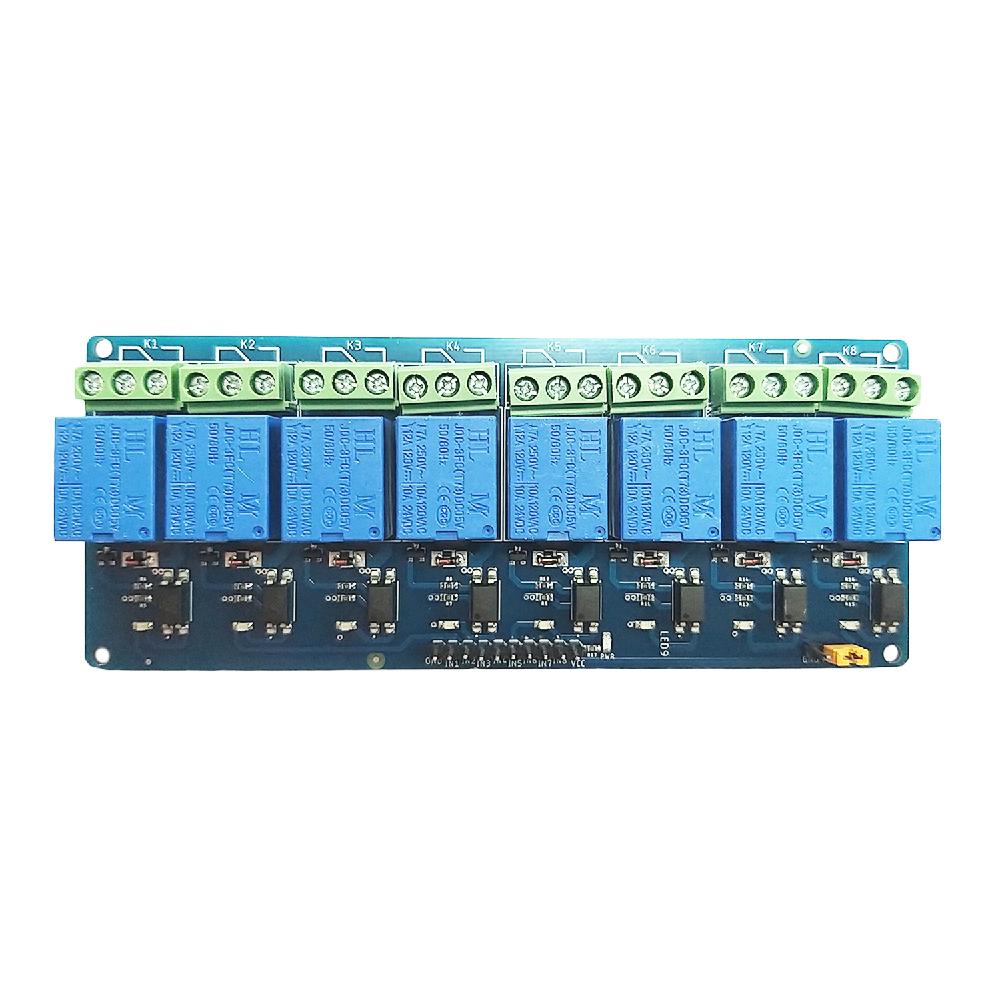

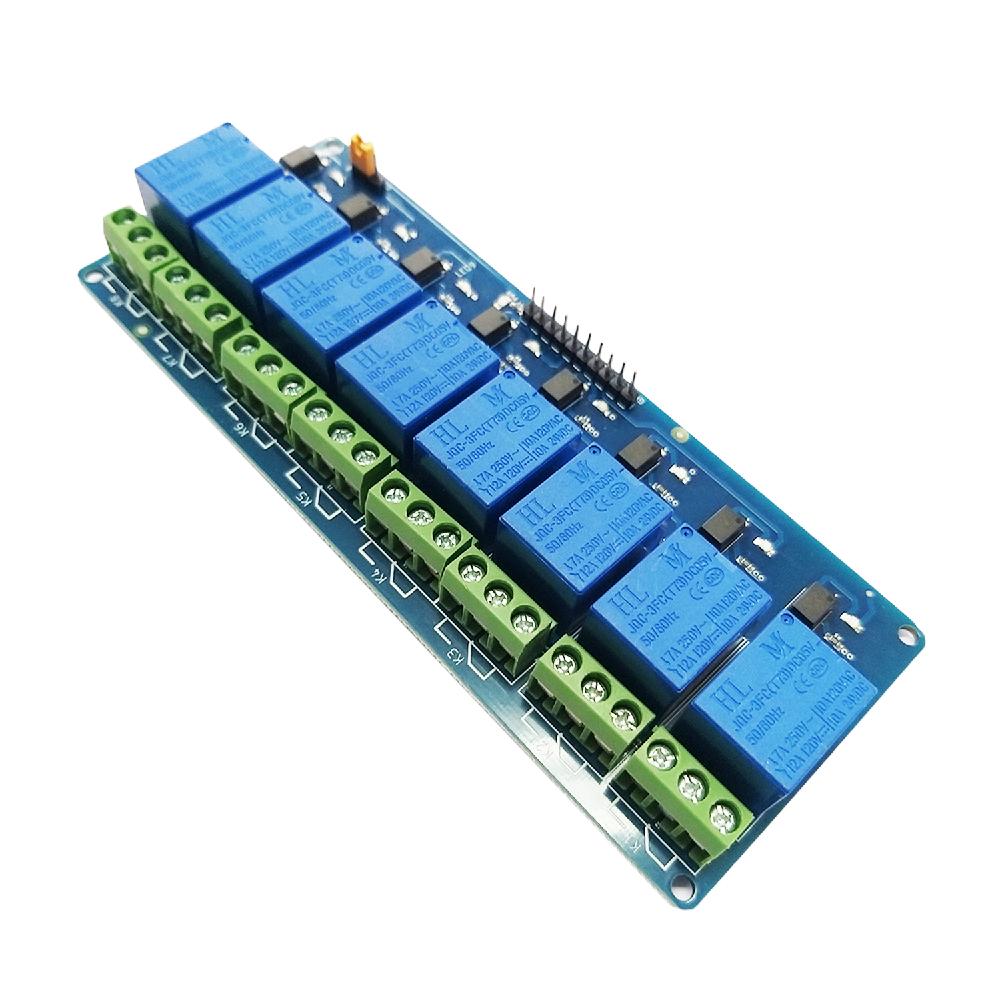

8 CHANNEL 5V RELAY BOARD
Brand: Generic
Features
Power supply and relay instructions, lit, the disconnect is off;
The input signal, signal, common Terminal and start conducting;
Useful for appliance control;
DC or AC signal, control, you can control the 220V AC load.
One normally closed contact and one normally open contact
Triode drive, increasing relay coil
High impedance controller pin
Pull-down circuit for the avoidance of malfunction
Quantity based pricing table
| Min Qty | Max Qty | Unit Price |
|---|---|---|
| 1 | 10 | ₹349 |
| 11 | 20 | ₹339 |
| 21 | 30 | ₹329 |
| 31 | 50 | ₹309 |
About this item
8 Channel Relay Board 5V - This is an 8 channel relay board that operates on 5V. They can be used directly to control 240V power appliance from most of the microcontrollers and other control system circuits. Perfect for switching 240V appliances like lights, fans, etc.
The board has a high-quality relay, which can handle a maximum of 10A @ 250V or 15A @ 125V AC. Each Relay has three connections - Common - C, Normally Open-NO, Normally Closed-NC brought out to 3 pin screw terminals which makes it easy to make and remove connections.
Specifications
| Brand | Generic |
|---|---|
| Product Type | Relay Module Board |
| Channels | 8 |
| Operating Voltage | 5V DC |
| Trigger Voltage | 3.3V to 5V logic compatible |
| Relay Type | Electromechanical (SPDT) |
