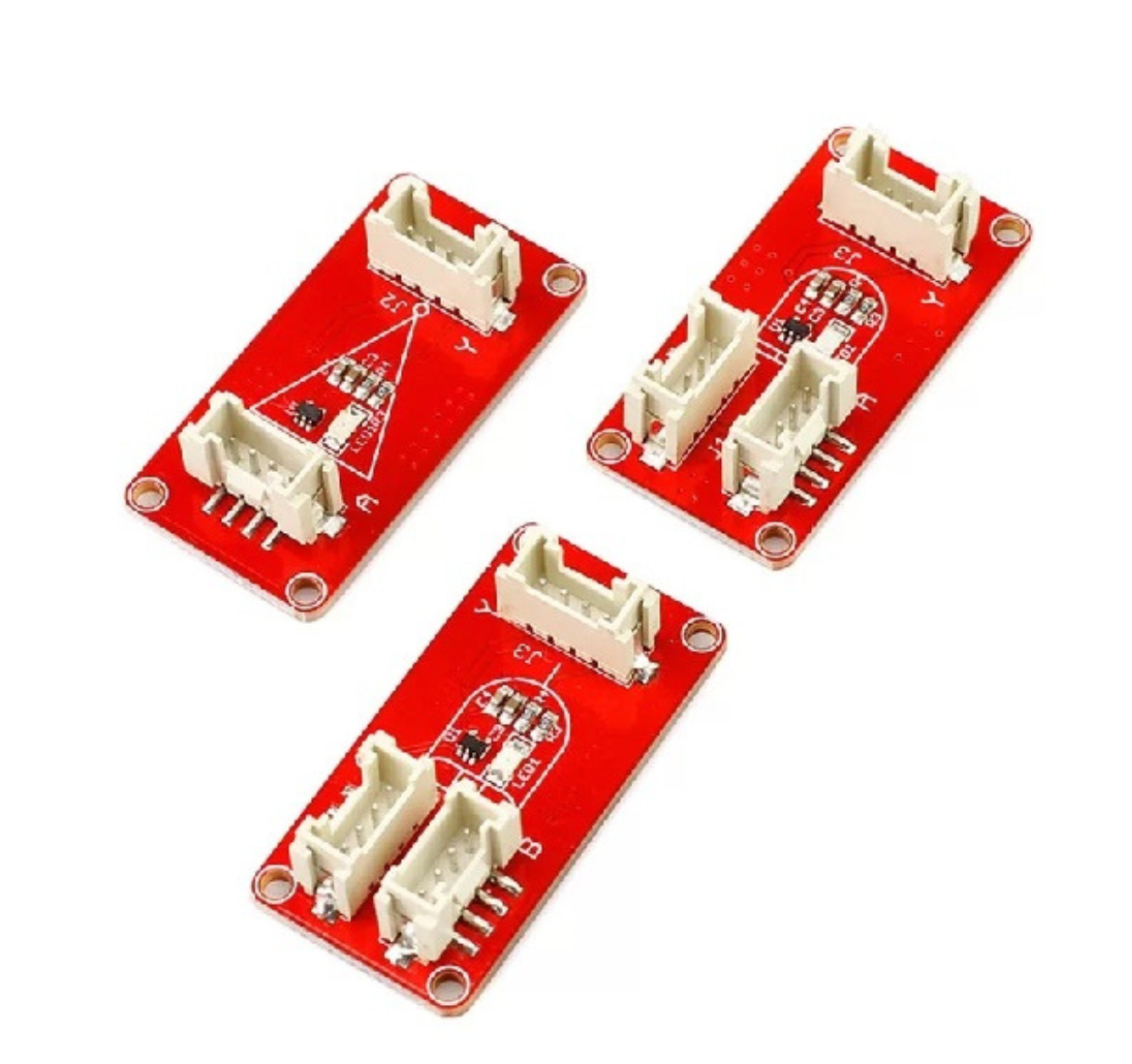

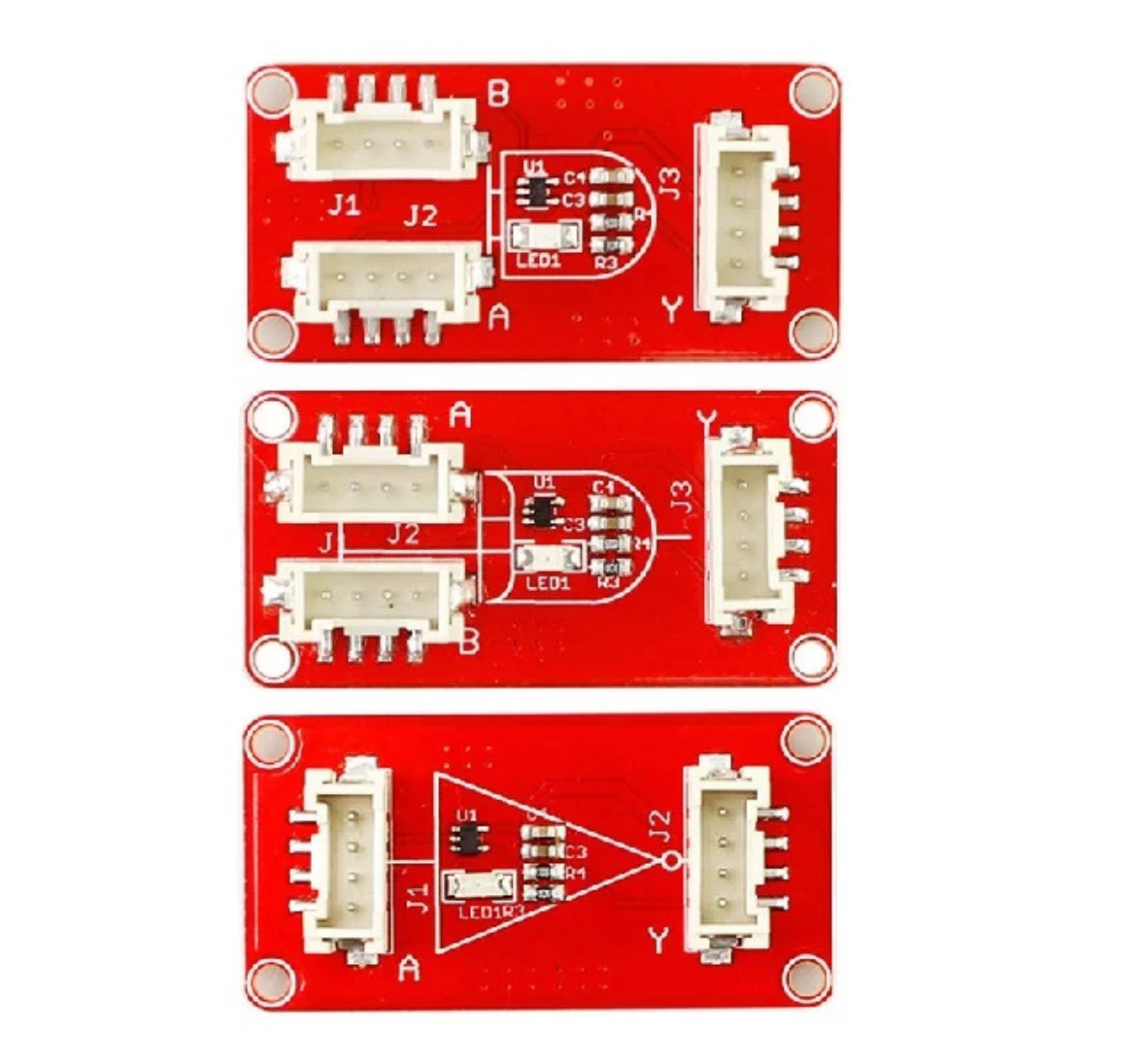

ELECROW Crowtail- Logic Block OR Type
Brand: Elecrow
Features
OR Logic Function
Outputs HIGH (1) if any one or both inputs are HIGH.
Outputs LOW (0) only when both inputs are LOW.
Two Digital Inputs
Accepts two signal inputs (A and B).
Single Digital Output
Provides the result of the OR operation.
Quantity based pricing table
| Min Qty | Max Qty | Unit Price |
|---|---|---|
| 1 | 5 | ₹546 |
| 11 | 20 | ₹515 |
| 21 | 50 | ₹499 |
About this item
The ELECROW Crowtail-Logic Block OR Type is a digital logic module designed for educational and prototyping purposes. It functions as a basic OR gate, outputting a high signal when any of its inputs are high. Built on the Crowtail platform, it offers a plug-and-play interface compatible with Crowtail base boards and microcontrollers like Arduino. Ideal for beginners and electronics enthusiasts, this module helps users learn fundamental logic gate operations through hands-on experimentation. Its compact form and easy connectivity make it perfect for STEM education, DIY electronics, and rapid prototyping.
Specifications
| Logic Gate Type | OR gate |
|---|---|
| Input Pins | 2 |
| Output Pins | 2 |
| Indicator | Output indicator LED |
| Interface | Crowtail 4-pin connector |
| Voltage Compatibility | 3.3V to 5V |
| Dimensions | 40.0mm (L) x 20.0mm (W) x 9.8mm (H) |
| Warranty | 6 months (against manufacturing defects) |
