About this item

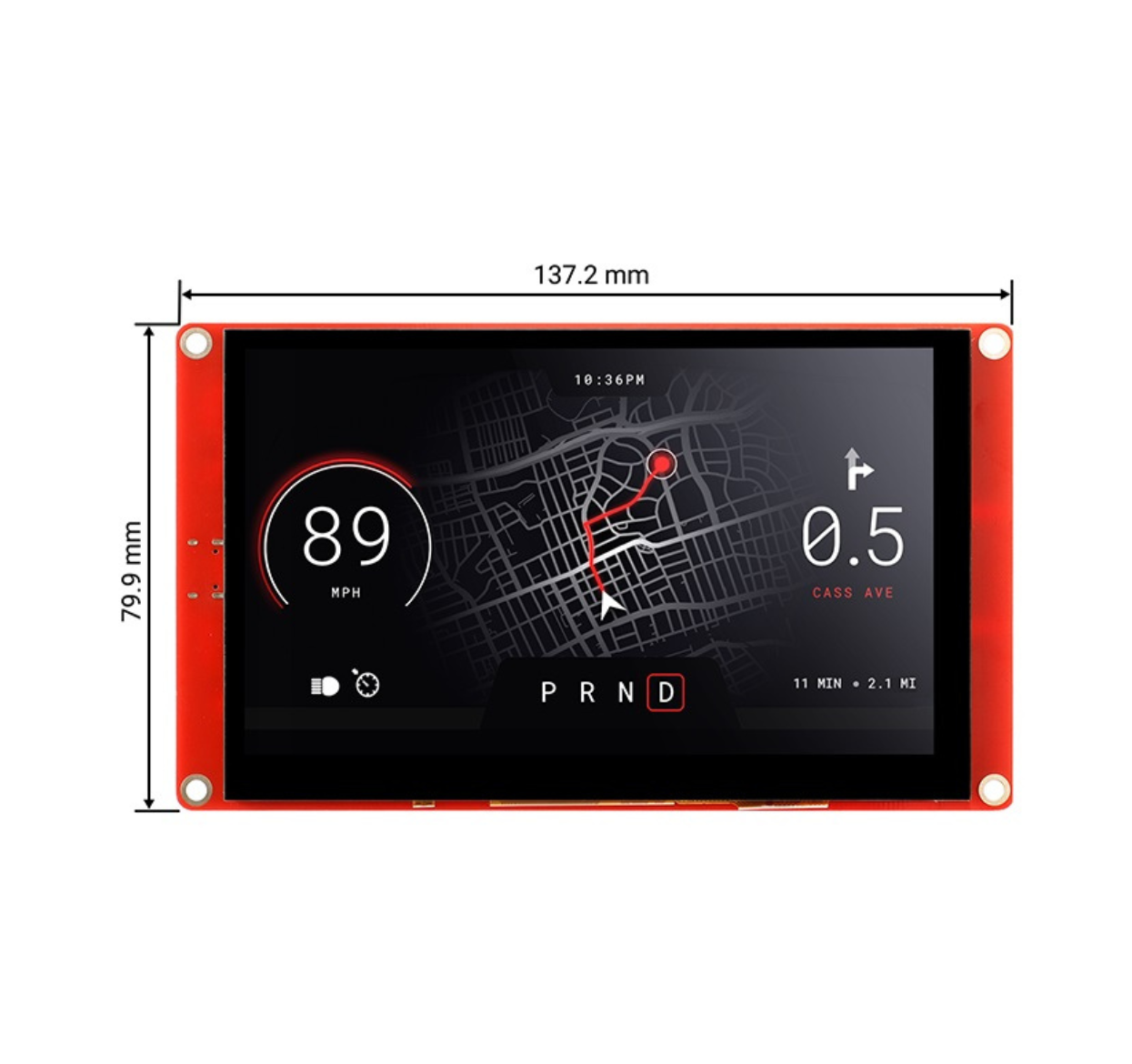

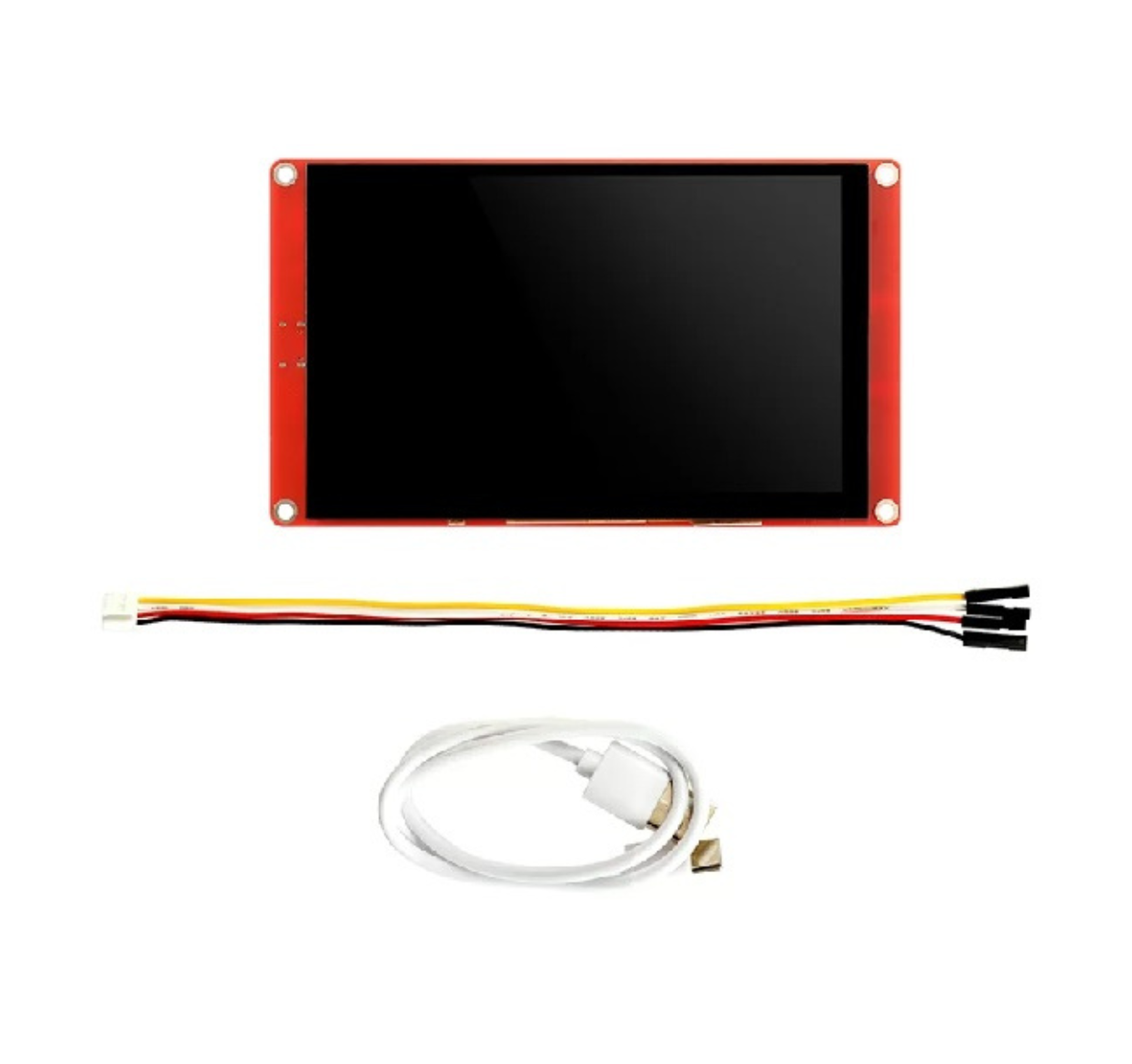

The ELECROW 5.0‑inch ESP32 HMI Display (without acrylic case) is a compact but powerful human‑machine interface (HMI) module built around the ESP32‑S3‑WROOM‑1‑N4R8 microcontroller. With a vibrant 800×480 RGB TFT LCD and a capacitive touch panel, it offers touch functionality for interactive control in IoT, smart home, industrial, or portable display applications. Because it lacks an acrylic enclosure, the module is slimmer and more flexible for embedding into custom housings or devices. Developers can leverage the integrated WiFi (2.4 GHz) and Bluetooth 5.0 capabilities for wireless communication, while the dual‑core LX6 processor running up to 240 MHz provides enough performance for fluid graphics, UI interactions, and moderate computation. Peripherals are rich: there are UART ports, GPIO lines, battery interface, USB Type‑C for power/data, speaker output, and a TF (microSD) card slot for external storage/logging. It supports popular development environments like Arduino IDE, Espressif IDF, PlatformIO, and MicroPython, and is fully compatible with LVGL (Light and Versatile Graphics Library), simplifying GUI design and deployment. The device works with a 5V DC power supply (2 A recommended) and is designed to operate over a usable ambient temperature‑range. Overall, this display module is excellent for prototyping, embedded UIs, control panels, handheld devices, or any scenario needing a mid‑size touch display with wireless and processing capabilities.
