About this item

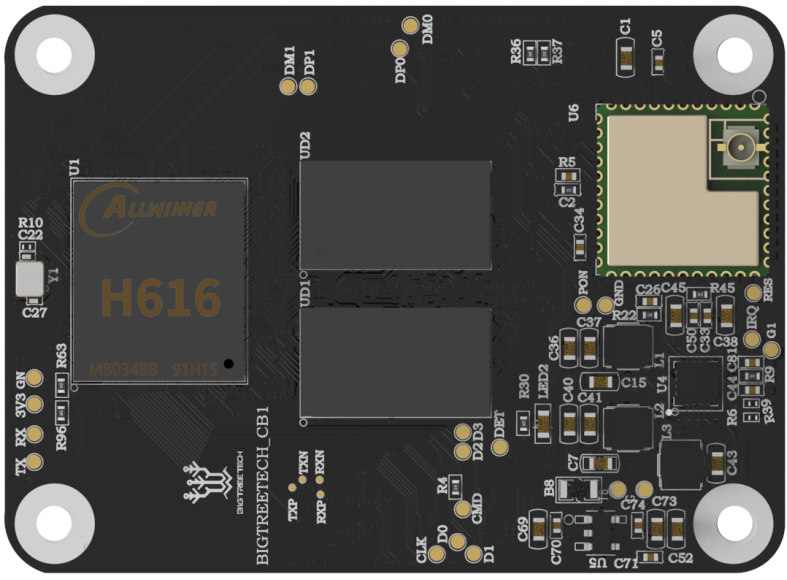

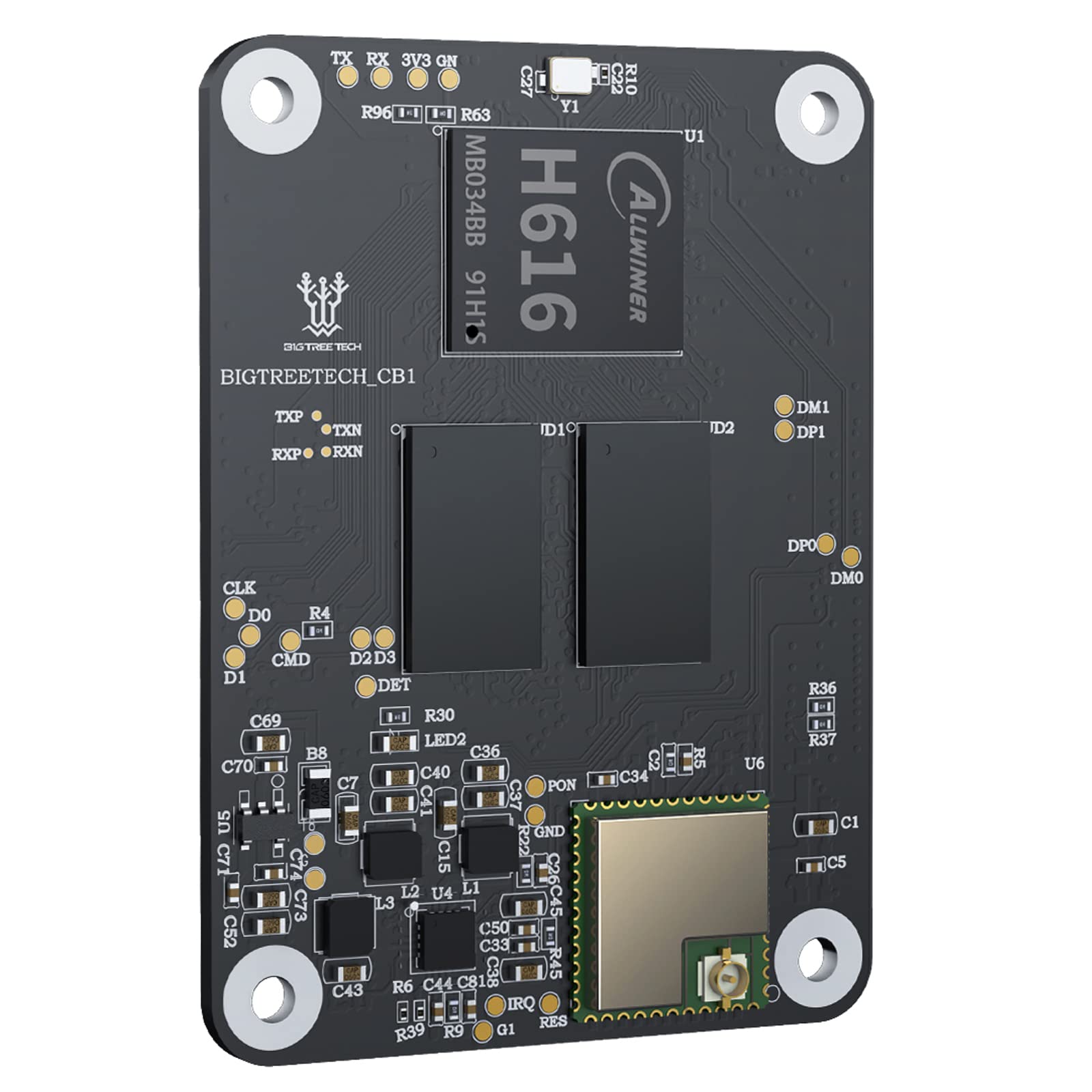

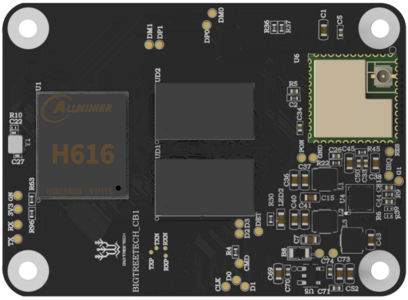

The BIGTREETECH CB1 is a compact and powerful Linux-based core board developed by BIQU/BIGTREETECH to serve as an alternative to the Raspberry Pi in 3D printer control systems. Designed specifically for seamless integration with BTT Manta series mainboards (such as Manta M5P and M8P), the CB1 provides a lightweight and cost-effective solution for running Klipper firmware, eliminating the need for a separate Raspberry Pi. Powered by the Allwinner H616 quad-core Cortex-A53 processor, the CB1 runs at up to 1.5 GHz and includes 512MB DDR3 RAM, offering stable performance for most 3D printing tasks. It supports Linux distributions tailored for Klipper, including BTT Pi and Debian-based images, and offers multiple connectivity options such as USB, HDMI, Wi-Fi (via module), and TF card booting. The CB1 plugs directly into the Manta mainboards via a dedicated header, creating a compact, all-in-one control system. Its low power consumption and open-source ecosystem make it ideal not only for 3D printing, but also for education, DIY electronics, and small Linux-based projects.
