About this item

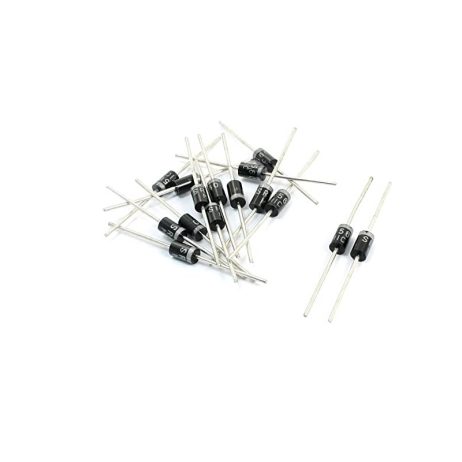

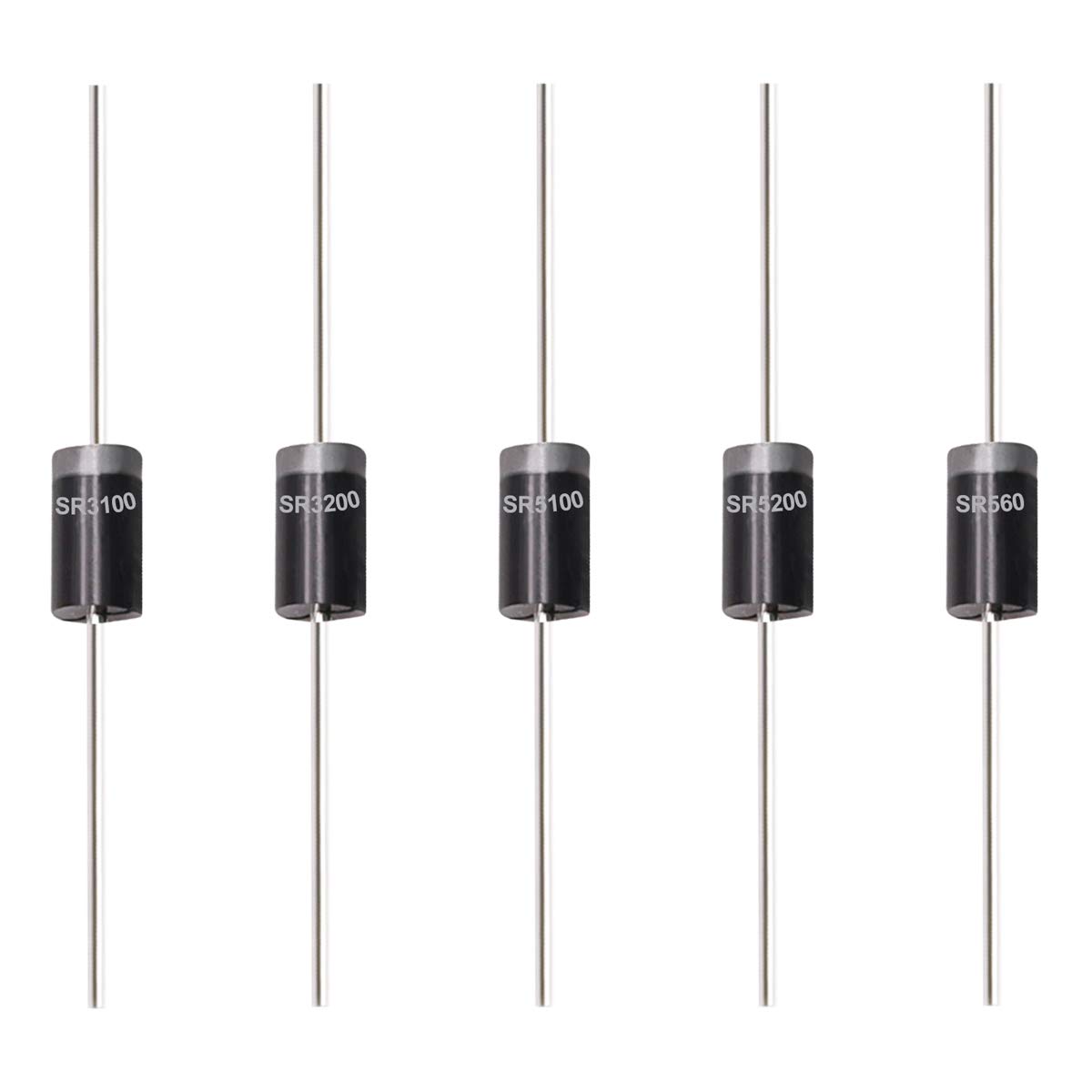

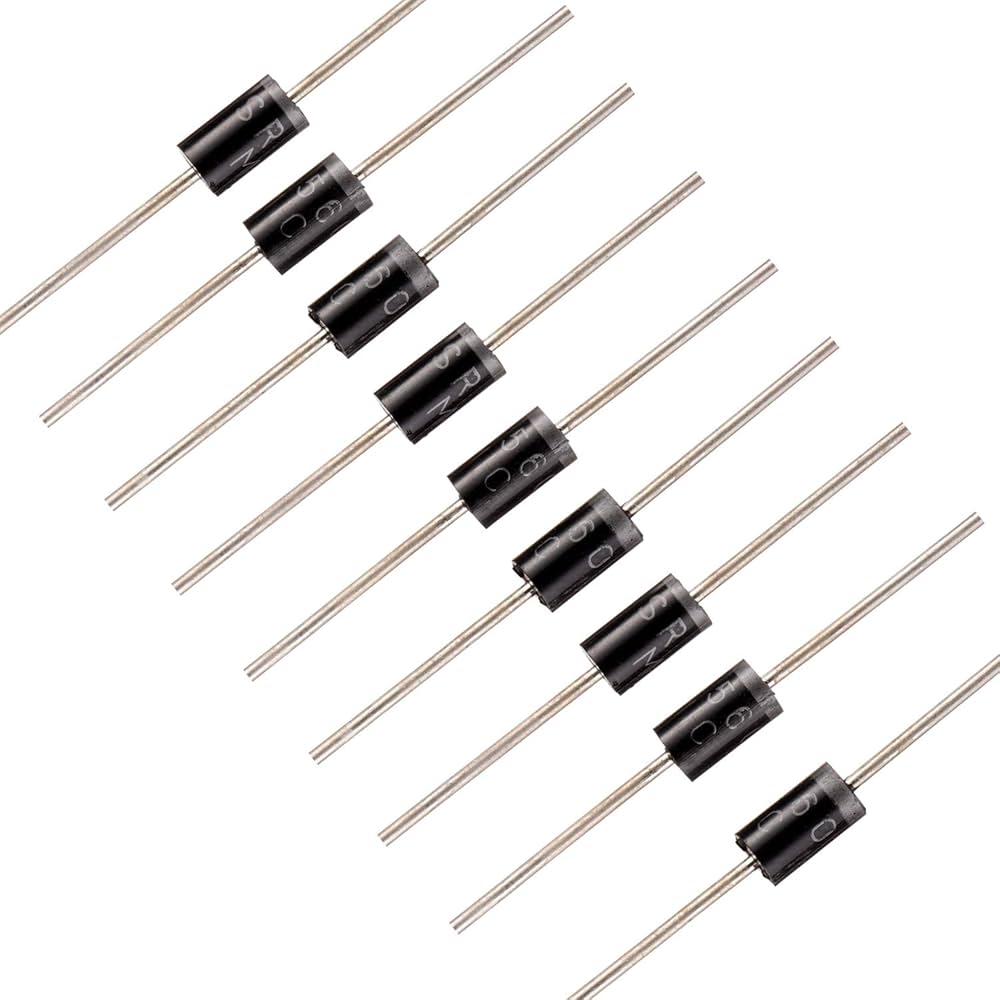

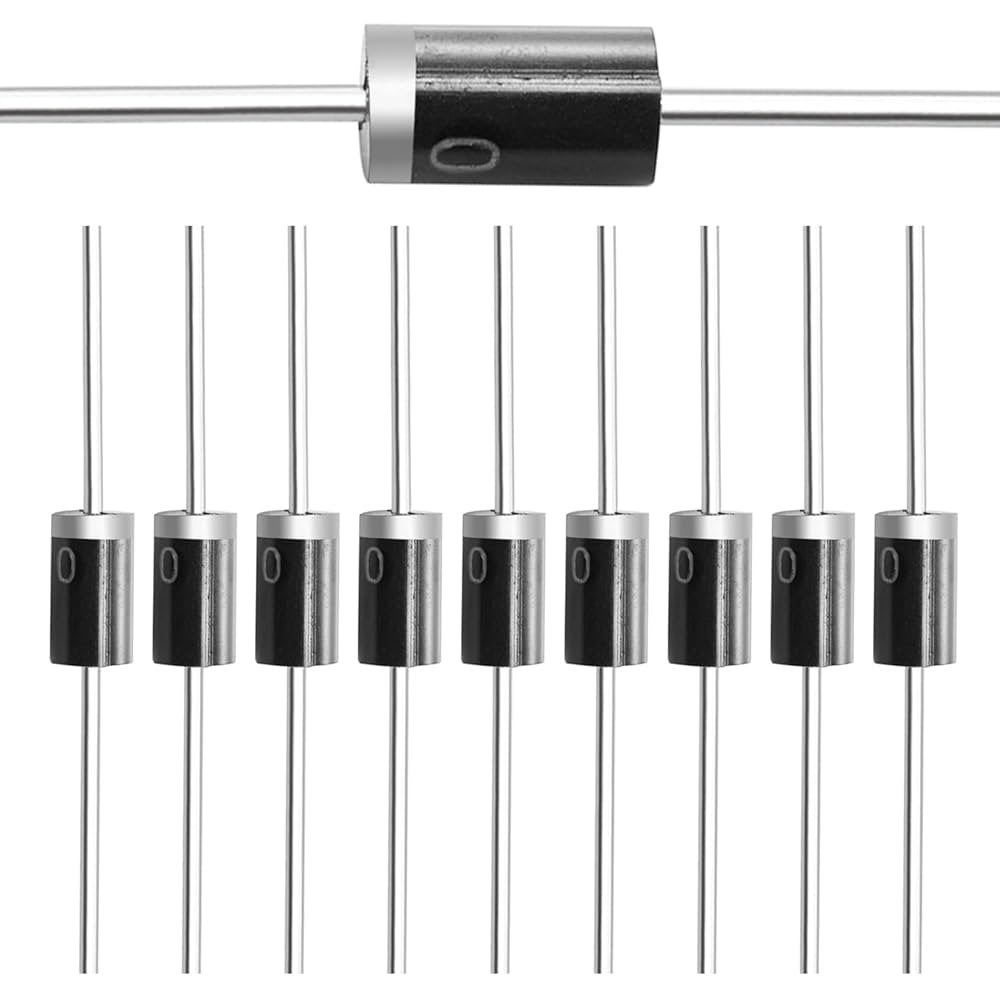

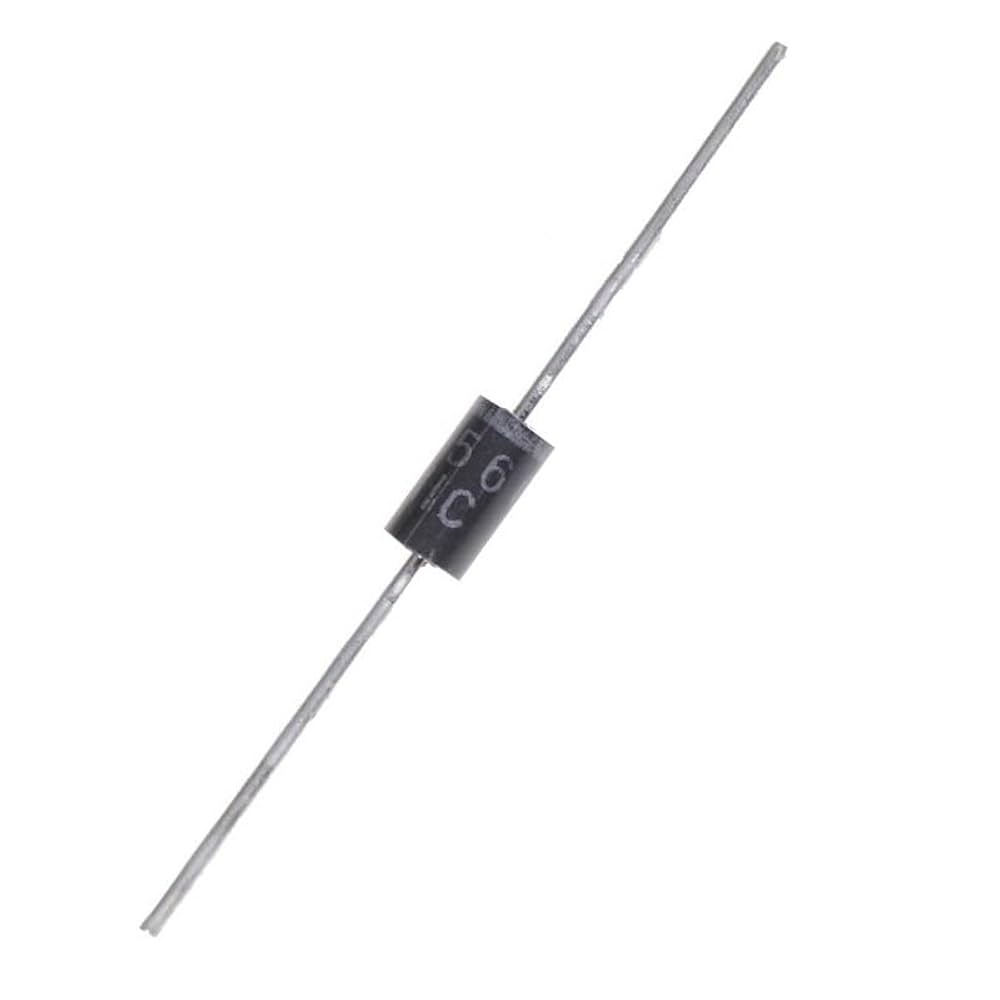

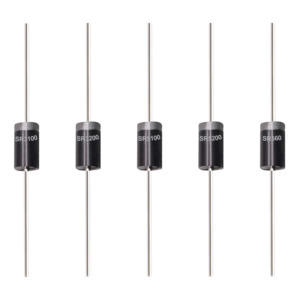

he SR560 is a high-performance Schottky rectifier diode designed for efficient low-voltage, high-speed switching applications. With a maximum repetitive peak reverse voltage of 60V and a forward current rating of 5A, this diode is ideal for use in power supplies, voltage clamping, and freewheeling diode circuits where fast recovery and low forward voltage drop are critical. The SR560’s low forward voltage drop of approximately 700mV helps minimize power loss and improve overall circuit efficiency, making it suitable for energy-conscious designs.Packaged in the compact DO-201AA casing, the SR560 offers robust thermal and mechanical stability, ensuring reliable operation in demanding environments. The two-pin design simplifies PCB layout and allows for easy integration into a wide variety of electronic circuits. Thanks to its Schottky barrier technology, this diode features extremely fast switching times and low junction capacitance, which reduces switching losses and electromagnetic interference (EMI).The SR560 Schottky rectifier is widely used in applications such as DC-DC converters, battery charging circuits, solar power systems, and automotive electronics. Its reliable performance and compact footprint make it a popular choice for engineers seeking efficient and durable diode solutions.
