About this item

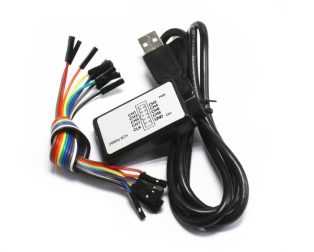

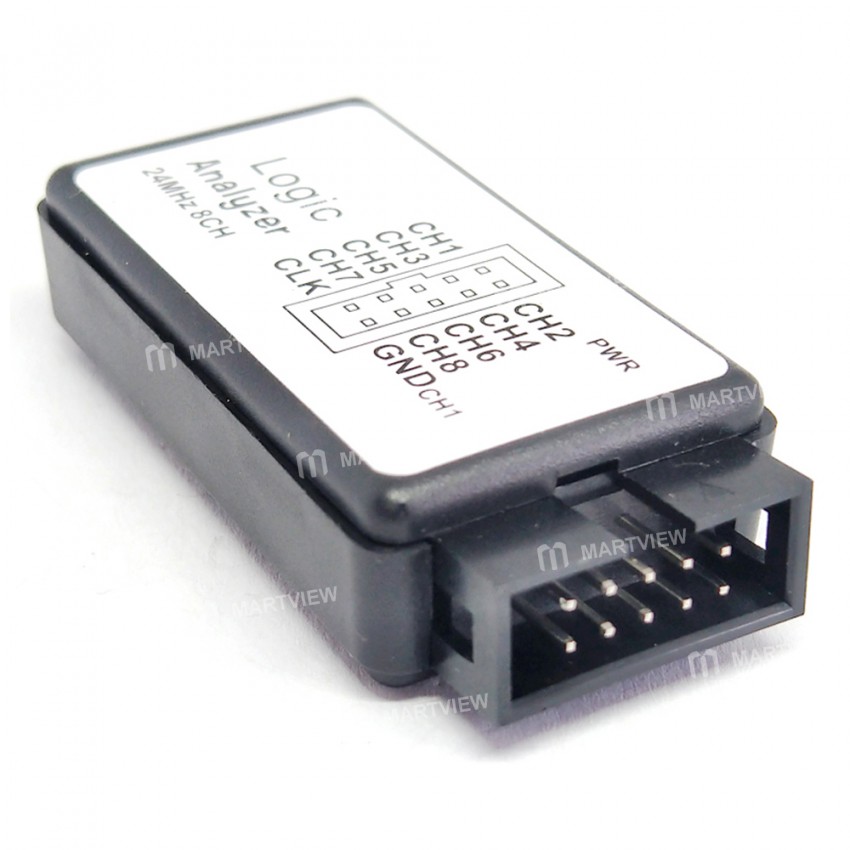

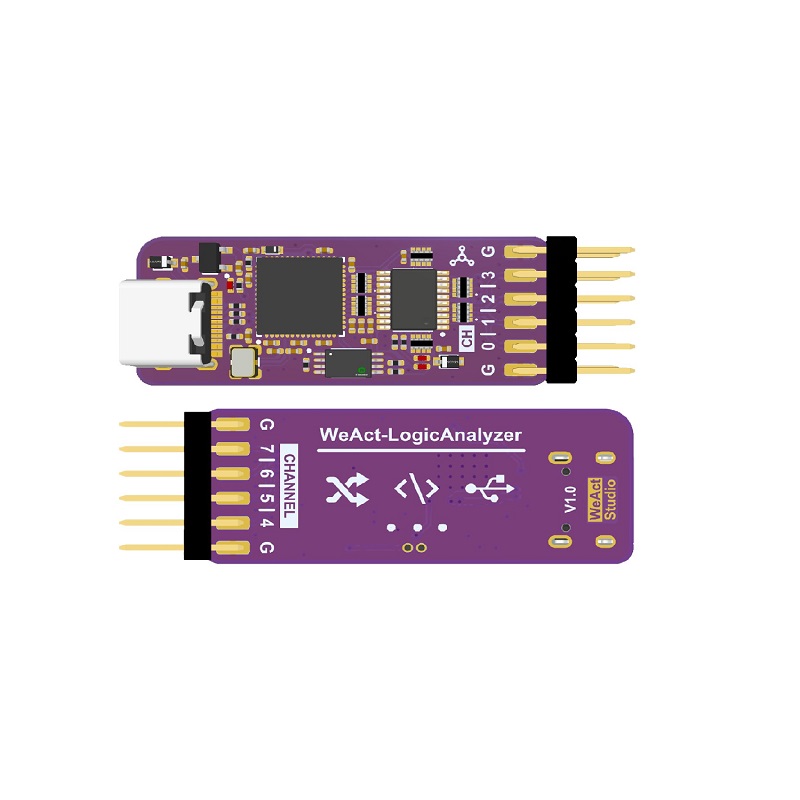

The WeAct Studio USB Logic Analyzer DLA Mini is a compact and powerful hardware debugging tool designed for capturing and analyzing digital signals in embedded systems, microcontrollers, ARM processors, and FPGA designs. With a maximum sampling rate of 24 MHz and 8 input channels, this logic analyzer provides detailed insight into timing, protocol behavior, and signal integrity during development and troubleshooting. Its USB interface allows easy connection to PCs or laptops, where dedicated software displays real-time waveforms, protocol decoding, and event triggering. This analyzer supports a variety of protocols including SPI, I2C, UART, CAN, and more, making it a versatile tool for embedded engineers and hobbyists. The DLA Mini is compatible with 5V and 3.3V systems, making it suitable for interfacing with a wide range of devices. Its compact, portable design makes it ideal for field debugging and development bench setups alike. Supporting Windows, Linux, and macOS, the WeAct Studio DLA Mini enables users to identify timing issues, communication errors, and protocol faults quickly, streamlining development cycles and improving product reliability.
