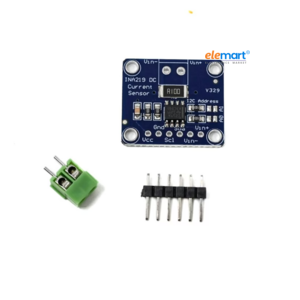

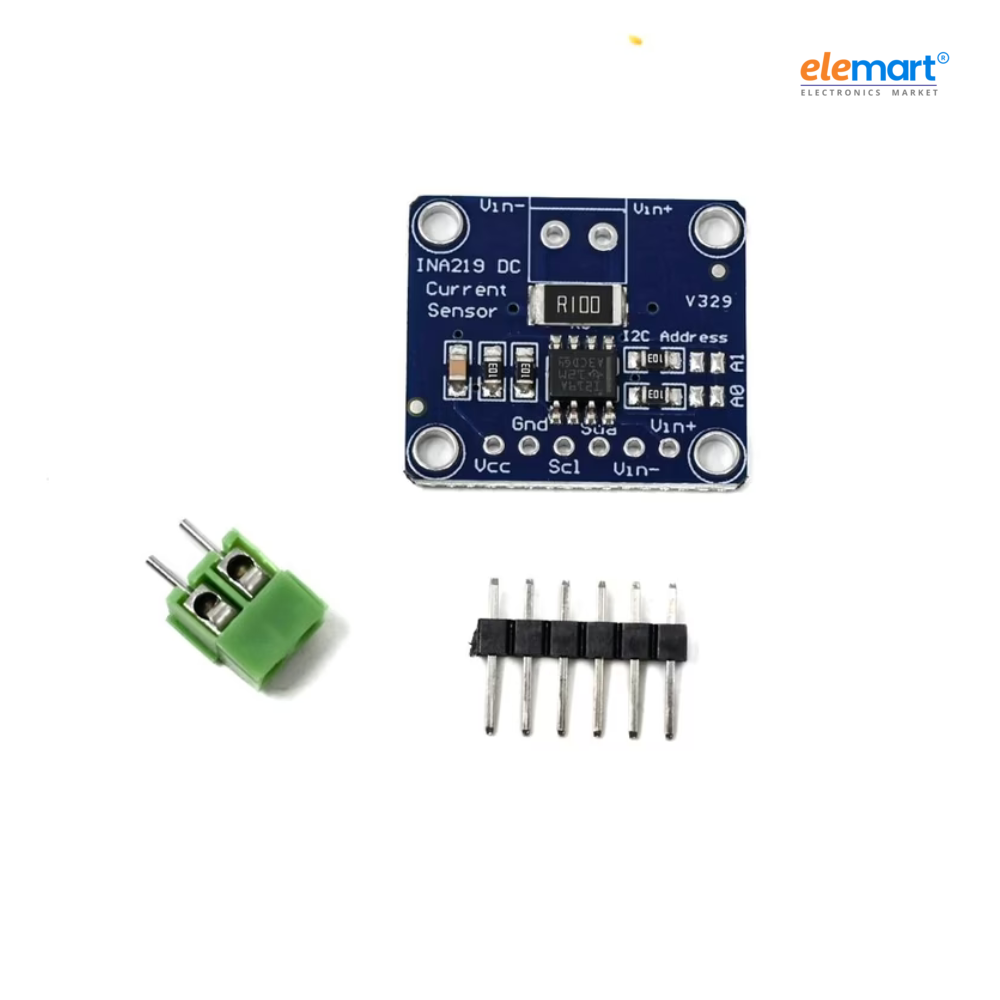

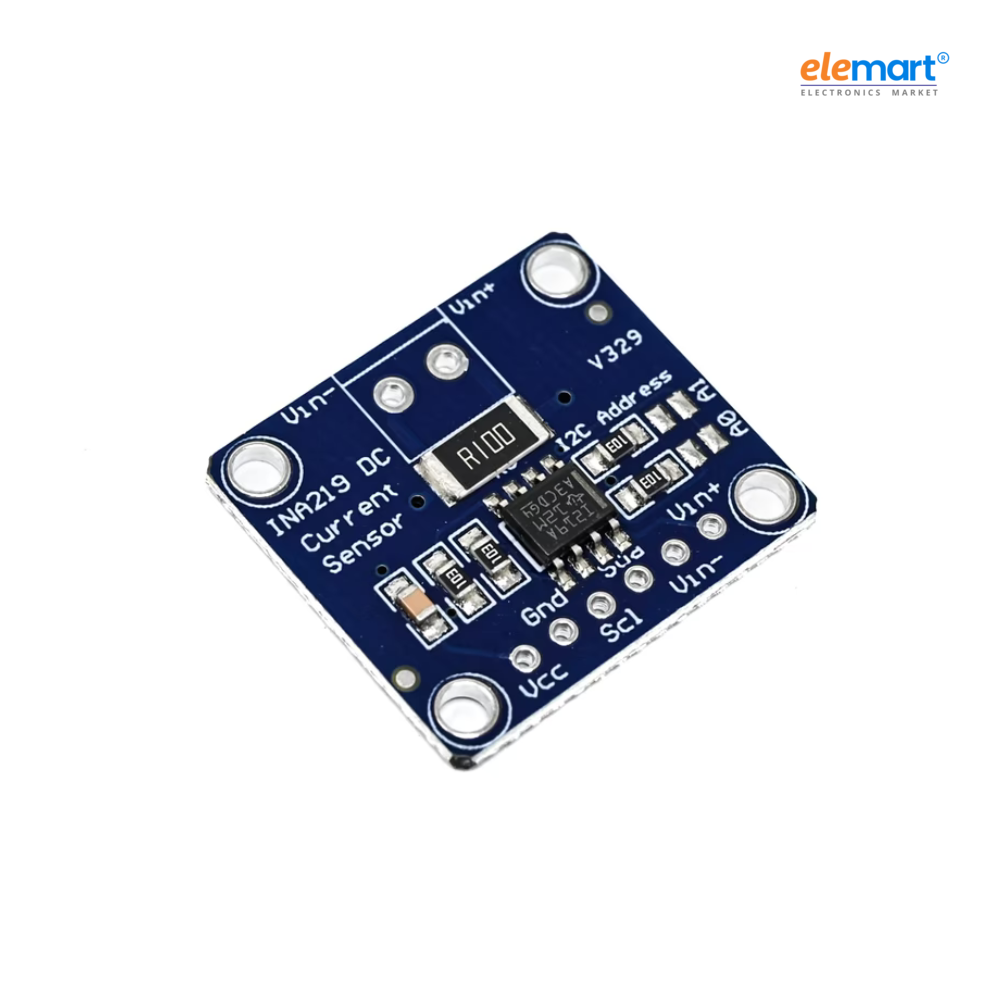

CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current / Power Supply Monitoring Module

Sold Out
₹115.00 ₹199.00 42% Off (Incl. of all taxes)
₹94.30
+ ₹20.70 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on
The CJMCU-219 is a compact and precise power monitoring module based on TI’s INA219 chip, designed for bi-directional measurement of current and voltage over I²C with minimal drift. Featuring a 0.1 Ω, 1% tolerance, 2 W shunt resistor and a precision amplifier capable of detecting up to ±320 mV, it measures currents up to ±3.2 A with a fine 0.8 mA resolution, while enabling lower-current measurements (±400 mA) at 0.1 mA resolution using gain adjustment. Packing a 12-bit ADC and programmable calibration registers, the module delivers stable, accurate readings—including calculated power values—without needing dual instruments. Its I²C interface supports SMBus and fast mode (up to 3.4 MHz) and includes timeout and averaging filters to improve resilience in noisy environments. The board operates from a single 3.0–5.5 V supply, senses bus voltages up to 26 V, and maintains ±1% accuracy within –40 °C to +85 °C. With its small PCB footprint (~0.9" × 0.8"), lightweight design (~1.9 g), and optional 16 I²C address selections, the CJMCU-219 is an ideal, compact solution for power monitoring in embedded systems, battery management, IoT devices, and beyond.
Condition Brand New
Category Current And Voltage Sensor
Power Supply: 3.0–5.5V DC
Voltage Range: Up to 26V
Current Range: ±3.2A max
Shunt Resistor: 0.1Ω, 2W
ADC Resolution: 12-bit
Accuracy: ±1% typical
Interface: I2C up to 3.4 MHz
Operating Temp: –40°C to 85°C
