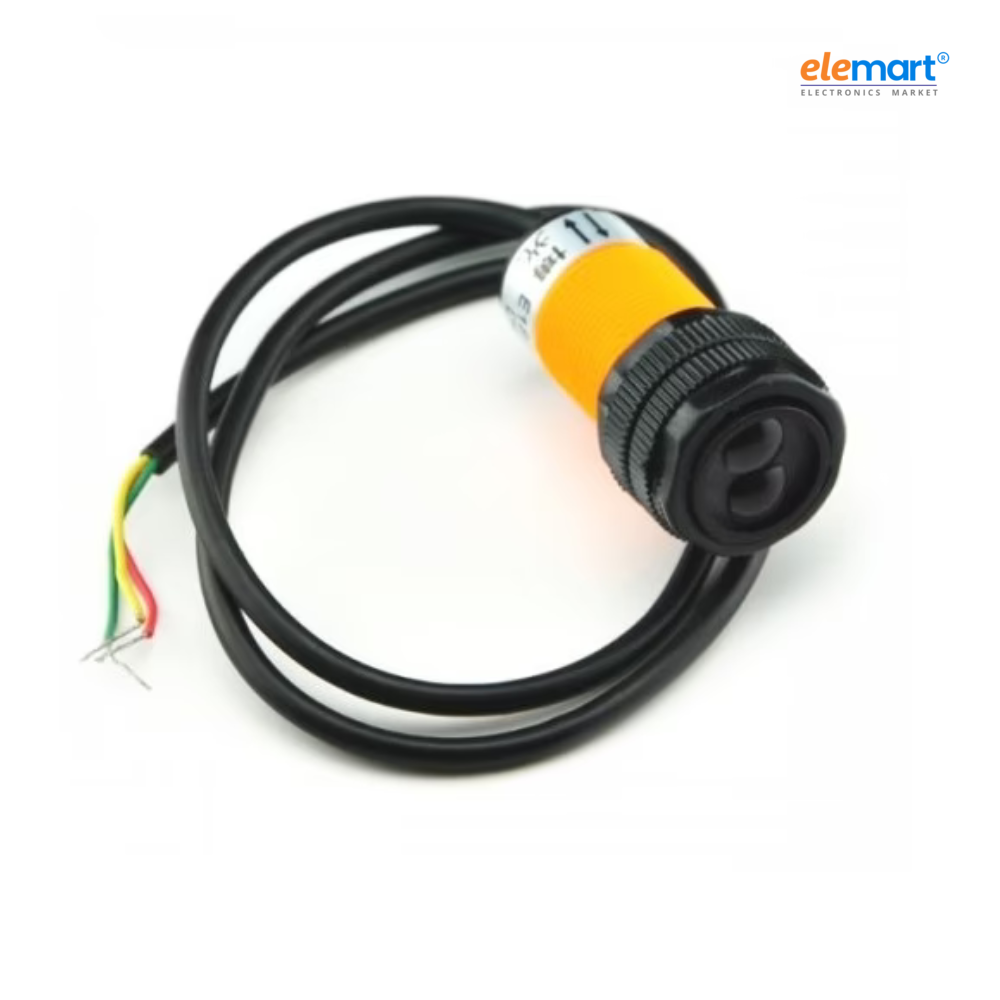

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm

Sold Out
₹158.00 ₹200.00 21% Off (Incl. of all taxes)
₹129.56
+ ₹28.44 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on
The E18‑D80NK Adjustable Infrared Proximity Sensor is a compact, diffuse‑reflective photoelectric switch combining an infrared emitter and receiver in a single housing. It provides an easily adjustable detection range from 3 cm to 80 cm, fine‑tuned using the rear-mounted potentiometer. Operating on a 5 VDC supply, it draws roughly 100–300 mA (depending on source), and outputs a digital signal via an open‑collector NPN output (active LOW when an object is detected), ideal for microcontroller interfacing. A visible indicator LED mimics the output state for quick diagnostics. The sensor includes an approximately 1 meter cable and a compact plastic probe with a narrow beam angle (~≤15°). It tolerates ambient temperatures from around –25 °C to +70 °C, and features reverse‑polarity protection. Lightweight and affordable, it’s excellent for applications like obstacle avoidance in robotics, object detection on conveyor systems, interactive installations, and automated counters. Its ease-of-use, reliability, and adjustability make the E18‑D80NK an ideal choice for prototyping and embedded projects that require precise, configurable proximity detection.
Condition Brand New
Category Pir / Ir And Optical Sensor
Power: 5V DC
Current: ~25mA
Range: 3–80 cm adjustable
Output: NPN open-collector
Load: Max 100mA sink
Response Time: <2 ms
Beam Angle: ~15°
Temp Range: –25°C to +55°C
