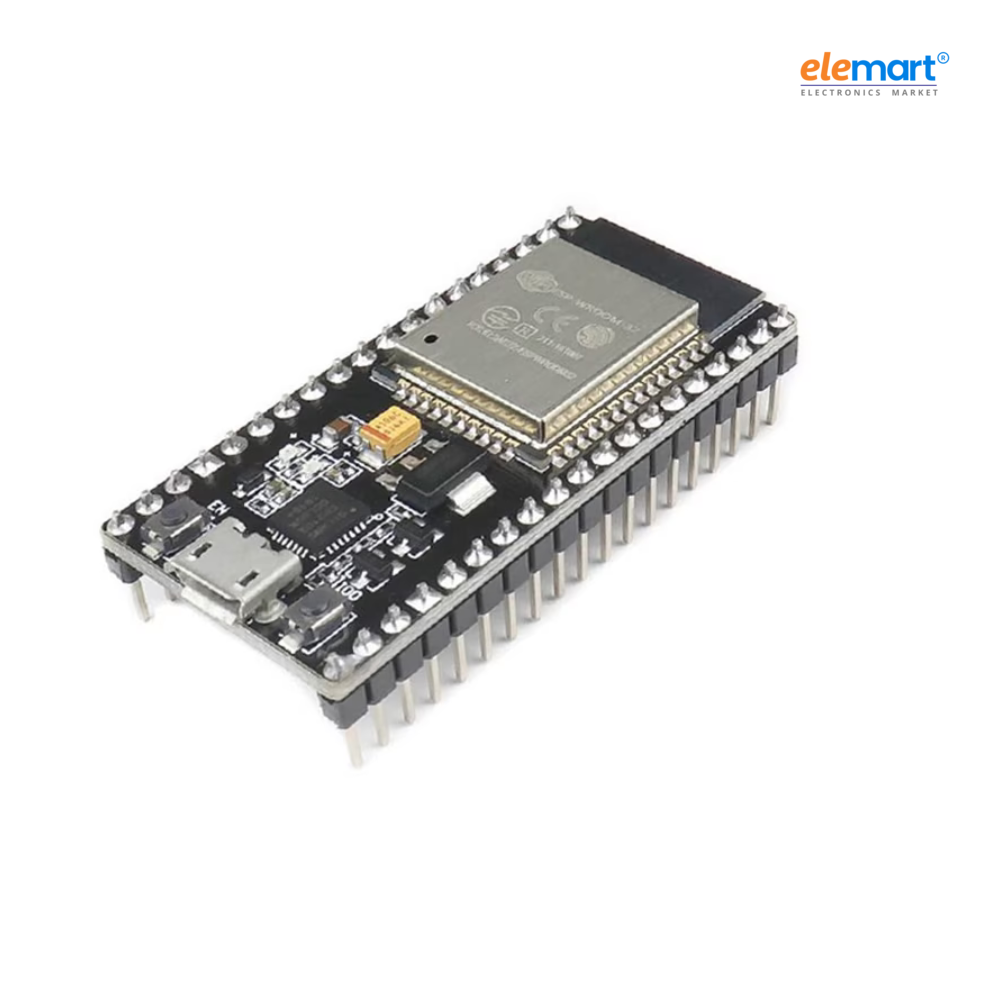

ESP WROOM 32 MCU Module Version: 1.1

₹550.00 (Incl. of all taxes)
₹451.00
+ ₹99.00 GST
Stock: Available
Quantity:
For B2B orders, contact us on

This listing is for the bare ESP-WROOM-32 module, not a development board — and that distinction matters enough to put upfront on the product page, since the two look similar in search results but serve completely different buyers.

A development board wraps this exact module with a USB-to-serial chip, a voltage regulator, and breakout headers, so it works the moment it's plugged into a computer — ideal for prototyping and learning. This module skips all of that. It's the component itself, meant to be soldered directly onto a custom-designed PCB where the USB circuitry, power regulation, and pin breakout are already part of that design. That's exactly why it exists as a separate SKU: buying a full dev board for every unit in a 500-piece production run means paying for a USB chip and regulator that never get used, since the final product has its own.

The chip underneath is identical to the dev board version — the same dual-core processor, the same integrated Wi-Fi and Bluetooth, the same GPIO count — so there's no performance trade-off, only an assembly one. The trade-off is entirely about who's doing the integration work: a dev board hands it to the buyer finished, while this module hands it to whoever is designing the final product's circuit board.

The honest recommendation: anyone prototyping, learning, or building a one-off project should buy the dev board instead — flashing this module requires a separate USB-to-serial programmer and a bit more circuit design knowledge to power it correctly. This bare module earns its place specifically for engineers and small manufacturers moving from prototype to production, where the dev board's extra components would just add unnecessary cost per unit.

Category Other Esp Wifi Modules
Processor: Dual-core 32-bit Xtensa LX6 microprocessor
Clock Speed: Up to 240 MHz
Flash Memory: 4 MB (typically)
Operating Voltage: 2.2V to 3.6V
Typical Operating Current: 80 mA
Operating Temperature Range: -40°C to +85°C
Dimensions: 18 mm (L) x 25.5 mm (W) x 2.8 mm (H)
Network Protocols: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
