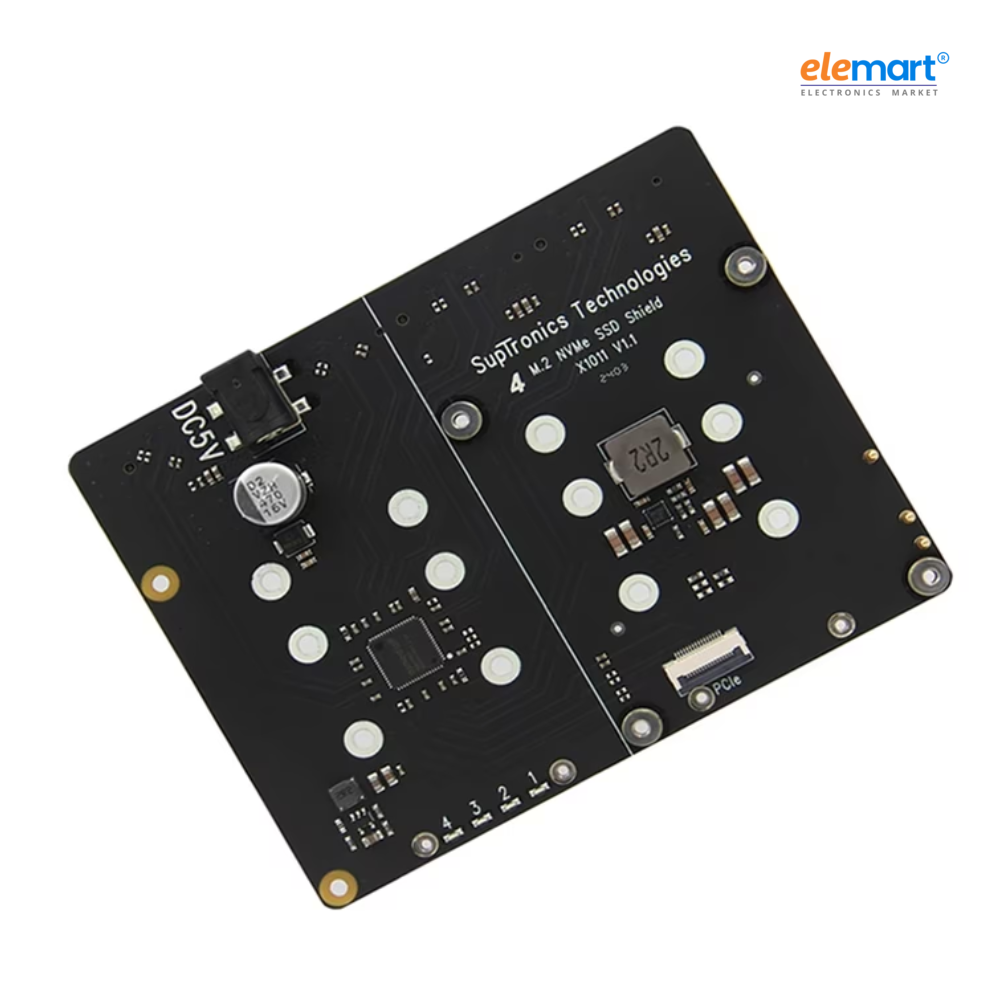

Geekworm X1011 PCIe to Four M.2 NVMe SSD Board for Raspberry Pi 5
Brand: Geekworm
₹8,999.00 (Incl. of all taxes)
₹7,379.18
+ ₹1,619.82 GSTStock: Available
Quantity:
- Four Drives, One Board: Connects up to four M.2 NVMe SSDs to a single Raspberry Pi 5, turning it into a genuine multi-drive storage hub.
- Flexible SSD Sizing: Supports 2230, 2242, 2260, and 2280 length NVMe drives, so you're not locked into one specific SSD form factor.
- PCIe Gen2 Performance: Runs over a PCIe Gen2 x1 interface per drive, delivering up to 5Gbps of transfer speed per SSD.
- Built on a Real PCIe Switch: Uses an ASMedia ASM1184e packet switch to split one upstream PCIe lane into four independent downstream connections.
- Two Ways to Power It: Draws power via pogo pins and FFC from the Pi, or can instead power the Pi itself through its onboard DC jack — never both at once.
- Boots Straight from NVMe: Supports direct NVMe boot on Raspberry Pi bootloader version 2024-05-17 or later, skipping the SD card entirely.
- Status at a Glance: Blue LED indicators show power and per-drive activity, so you can tell what's running without extra tools.
- Mounts Underneath, Stays Out of the Way: Sits on the underside of the Pi 5, leaving the GPIO header free for other HATs to stack on top.
- Cooler-Friendly Fit: Works alongside the official Raspberry Pi 5 active cooler without interference
| Category | Multi-brand Raspberry Pi Add On Boards (hats) |
|---|---|
| Item Type: | Peripherel Board, SSD |
| Model No. / Name: | NVMe |
| PCB Size ( L x W ) mm | 109mm x 87.2mm |
| Connector Type: | M.2 KEY-M 67P x4 |
| Shipping Weight | 0.095 kg |
| LED Indicator | Blue LEDs for power |
