About this item

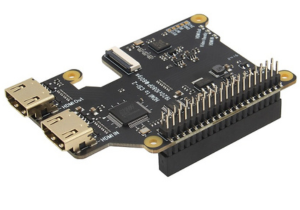

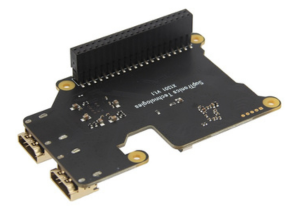

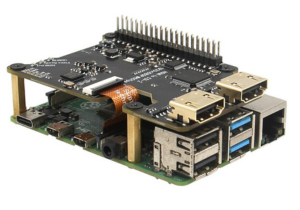

The Geekworm X1301 HDMI to CSI-2 Shield is a versatile expansion board designed for the Raspberry Pi 5, enabling the capture of HDMI input signals and their conversion to the Camera Serial Interface (CSI-2) for processing. This shield is ideal for applications such as digital media adapters, smart monitors, set-top boxes, smart TVs, entertainment screens, and KVM over IP solutions. It supports video formats up to 2K Full HD (1920×1080) at 60 frames per second, ensuring high-quality video capture. The shield is equipped with the Toshiba TC358743XBG HDMI to CSI-2 bridge chip and features a 22-pin FPC connector with a 0.5mm pitch for the CSI-2 interface. Additionally, it supports HDMI audio input and transmission over I²S, allowing for synchronized audio and video capture. The design includes a one-to-two active HDMI splitter chip, enabling HDMI pass-through functionality. This feature allows users to output the HDMI signal to a local display, such as a TV or projector, even when the Raspberry Pi is in standby mode. The shield is stackable, allowing for easy integration with other HATs, and is compatible with the HAT+ STANDBY power state, automatically turning off when the Raspberry Pi shuts down. Its compact design and straightforward mounting options make it a practical choice for various multimedia projects.
