About this item

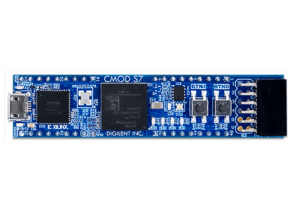

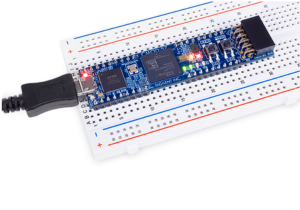

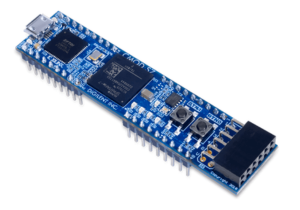

The Digilent Cmod S7: Breadboardable Spartan-7 FPGA Module is a compact and versatile development board designed for seamless integration into FPGA-based projects. Built around the Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C), it offers 3,650 logic slices, 1,620 Kbits of fast block RAM, and 80 DSP slices, delivering robust performance for a wide range of applications. The module features a 4MB Quad-SPI Flash memory for programming, along with a USB-JTAG interface and a USB-UART bridge for easy communication and debugging. It is powered via USB or an external 5V supply connected to a DIP pin, providing flexibility in power options. For user interaction, the Cmod S7 includes 2 push-buttons, 4 standard LEDs, and 1 RGB LED, facilitating status indication and control. The board is equipped with a single 12-pin Pmod connector, offering 8 FPGA I/O pins for peripheral expansion. Its 48-pin DIP form factor, with 36 populated pins, ensures compatibility with solderless breadboards, making it an excellent choice for prototyping and educational purposes. Additionally, the Cmod S7 supports the MicroBlaze soft processor core, enabling the development of embedded applications with various peripherals and interfaces. This module is ideal for those seeking a cost-effective and efficient solution for FPGA development and experimentation.
