CORAL G650-03324-01 Development Board Mini, MT8167s, SoC, MCU, ARM Cortex-A35 MCU

₹17,545.00 (Incl. of all taxes)
₹14,386.90
+ ₹3,158.10 GST
Stock: Available
Quantity:
For B2B orders, contact us on

About this item

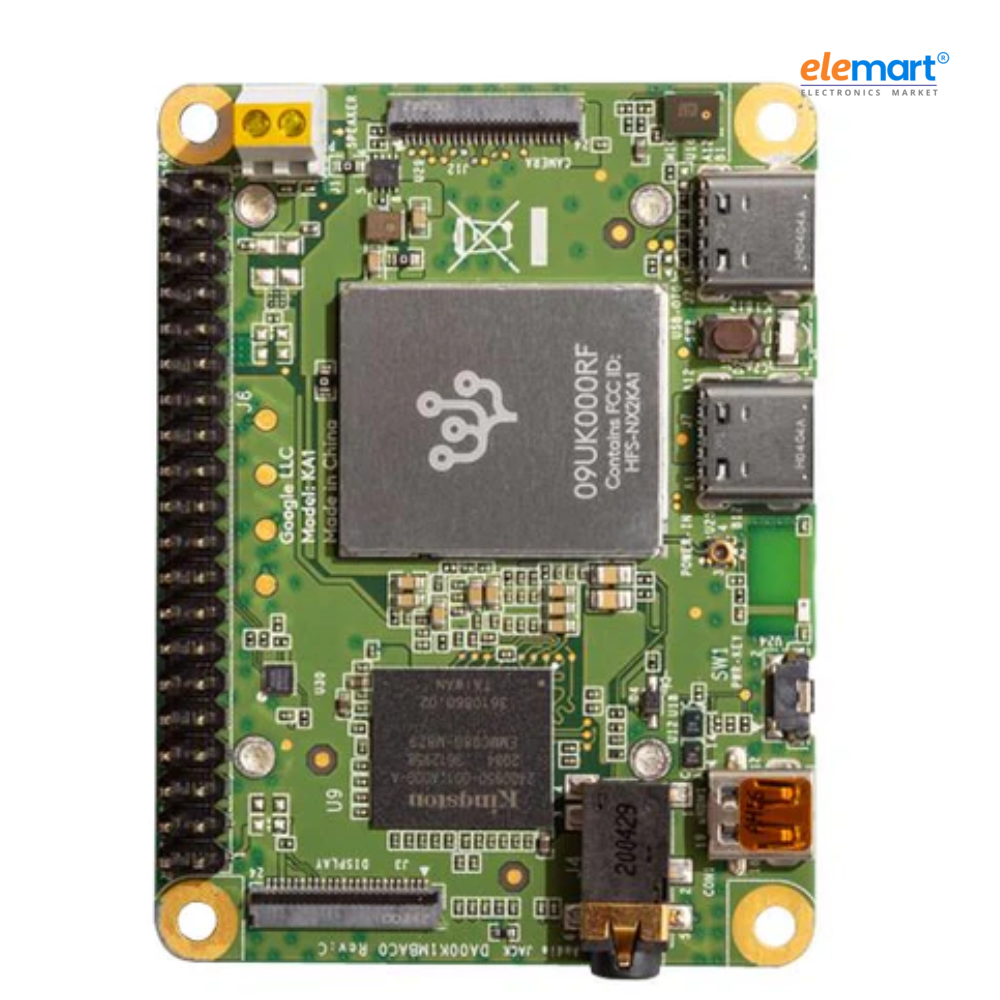

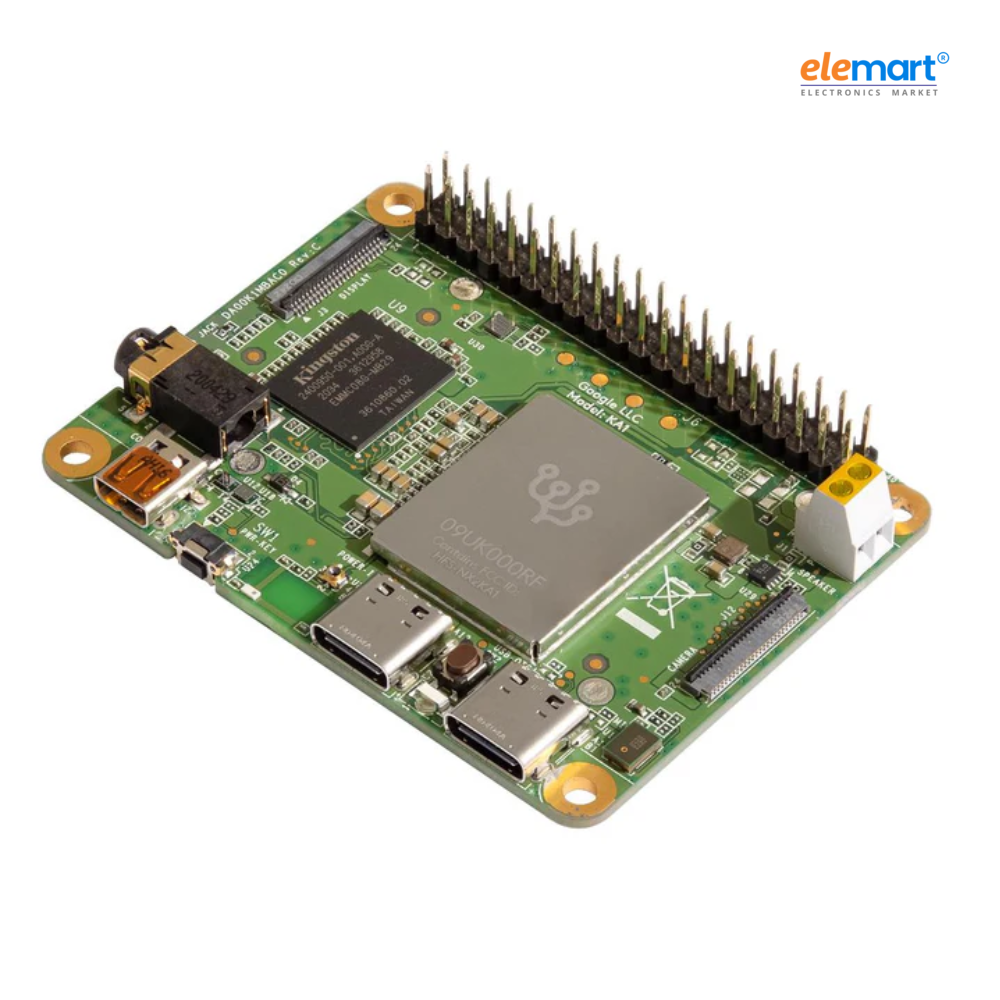

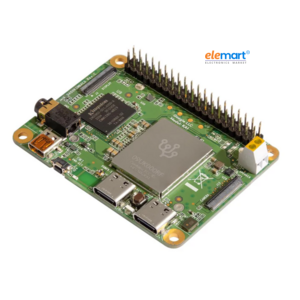

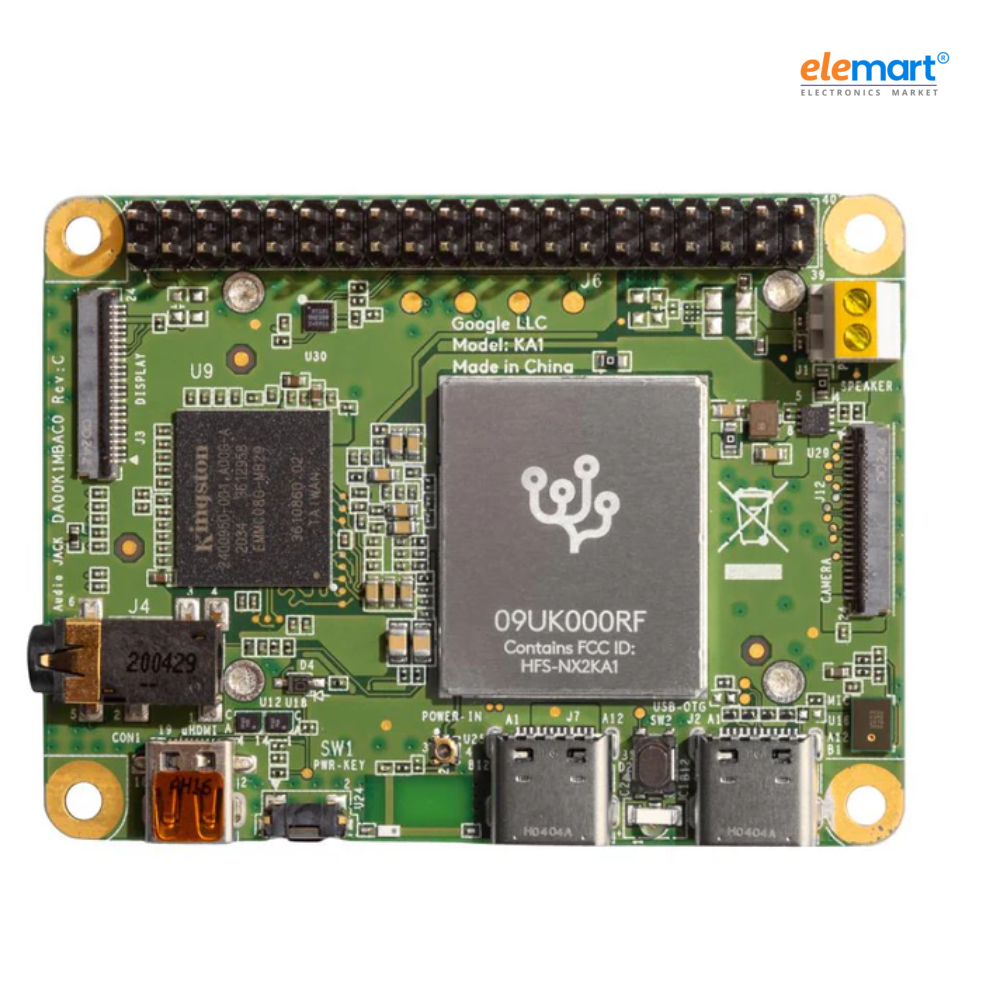

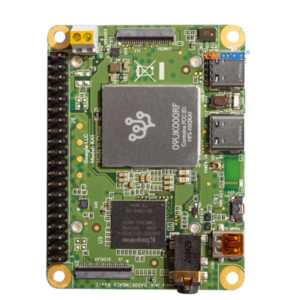

The Coral G650-03324-01 Development Board Mini is a compact single-board computer designed for efficient on-device machine learning (ML) inferencing. Powered by the MediaTek MT8167s System-on-Chip (SoC), it features a quad-core ARM Cortex-A35 processor and an Imagination PowerVR GE8300 GPU, delivering robust performance for embedded applications. Integrated with Google's Edge TPU ML accelerator, the board offers up to 4 TOPS (trillion operations per second) peak performance, enabling rapid execution of TensorFlow Lite models with low power consumption. Equipped with 8 GB eMMC storage and 2 GB LPDDR3 RAM, it provides ample memory for various tasks. Connectivity options include Wi-Fi 5, Bluetooth 5.0, USB 2.0 Type-C OTG, and HDMI 1.4a (micro), facilitating versatile interfacing capabilities. The board also supports MIPI DSI display and MIPI CSI camera interfaces, along with audio input/output through a 3.5 mm headphone jack and digital PDM microphone. For expansion, it offers a 40-pin GPIO header. Pre-installed with Mendel Linux, a Debian-based operating system, the Coral Dev Board Mini is ideal for developers looking to prototype and deploy embedded systems with integrated ML capabilities

Specifications

Category Arm Microcontroller Boards
Processor MediaTek MT8167s Quad Cortex-A35, 1.5 GHz
GPU PowerVR GE8300
ML Accelerator Google Edge TPU, 4 TOPS
RAM 2 GB LPDDR3
Storage 8 GB eMMC + MicroSD Slot
Wireless Wi-Fi 5 (802.11ac), Bluetooth 5.0
Power Supply 5V via USB Type-C
Dimensions 88 mm x 60 mm x 24 mm
