Arduino Proto Shield Rev3 (Uno Size)
Special Price
₹1,849
(Incl. of GST 18%)
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item

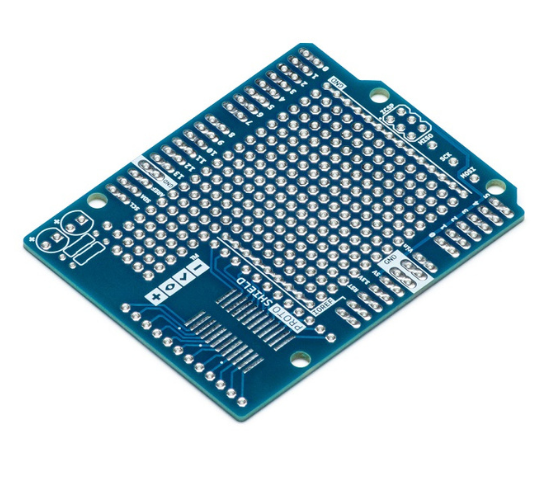

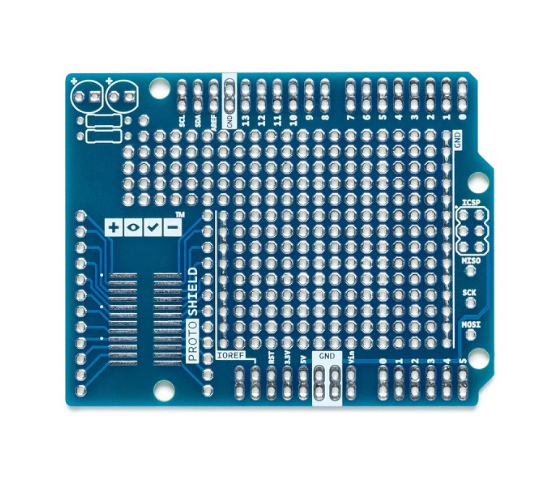

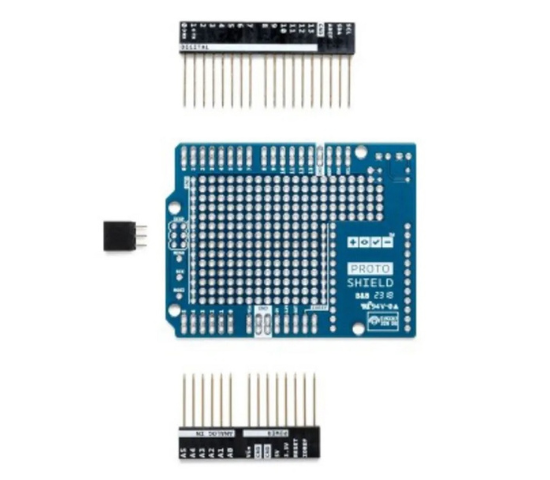

The Arduino Proto Shield Rev3 (Uno Size) is a prototyping board that allows you to easily design and test custom circuits with your Arduino Uno. It features a large 0.1-inch pitch prototyping area for through-hole and SMD components, a 24-pin SOIC SMD footprint (50 mils pitch), and 32 double-row through-hole pads in the standard Arduino layout. The shield brings 5V and GND power rails to bus rows, includes a reset button, ICSP header, and pads for two LEDs with resistors. It’s convenient for both soldered and breadboard-based circuit development, enabling easy expansion and project integration.
Specifications
| SMD footprint | 14-pin SMD footprint with 50 mils pitch |
|---|---|
| Breakout Paids | 32 double-row through-hole pads in standard Arduino layout |
| Prototyping area | Large 0.1-inch (100 mils) pitch prototyping area for THT components |
| Aditional footprint | Includes 20-pin through-hole footprint (100 mils pitch) |
| Power Rails | Easy-to-solder, extended ground and 5V rails for efficient power distribution |
