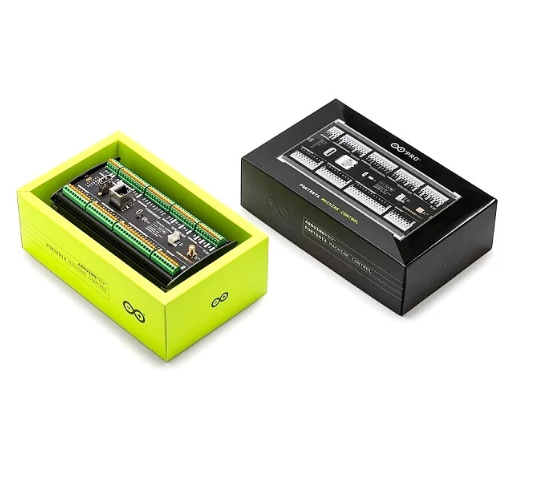

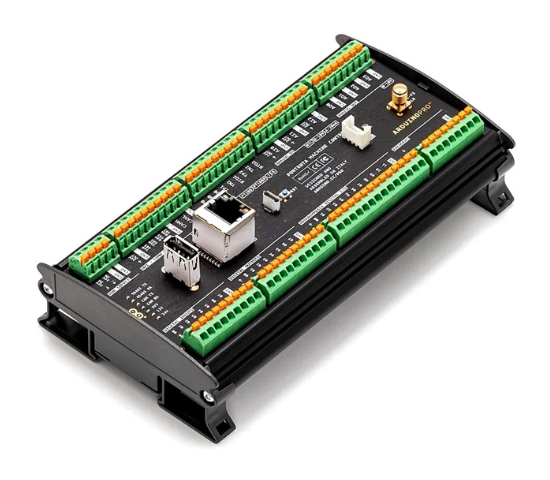

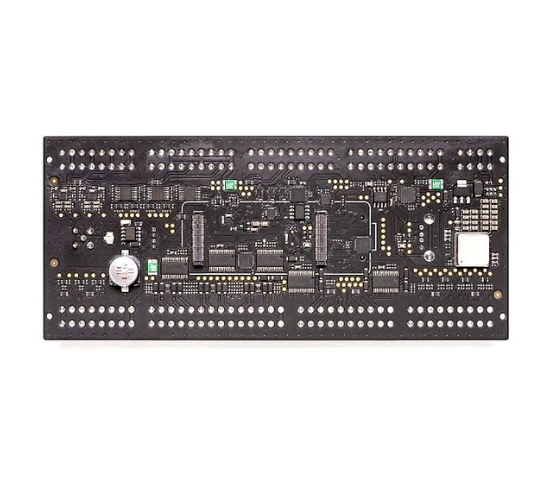

Arduino Portenta Machine Control Unit
Brand: Arduino
Features
₹41,099
+ ₹41,099 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The Arduino Portenta Machine Control is an industrial automation controller designed for advanced machine and factory management. Built around a dual-core STM32H747XI (Cortex-M7 at 480 MHz and Cortex-M4 at 240 MHz), it delivers high real-time performance ideal for predictive maintenance, AI at the edge, and industry-standard soft-PLC control. The unit supports 8 digital inputs and outputs (24VDC), 4 analog outputs (0-10V), 3 analog inputs (configurable to 0-10V, 4-20mA, or NTC), encoder inputs, and 12 programmable 24V I/O. Connectivity includes Ethernet, Wi-Fi, Bluetooth Low Energy, CAN-BUS, and serial (RS232/422/485). It offers robust protection, operates from -40°C to +85°C, and supports easy integration with sensors, actuators, and cloud-based systems for remote monitoring and contro
Specifications
| Time Efficiency | Shorter time-to-market with rapid prototyping and deployment |
|---|---|
| Product Upgrade | Revitalize existing equipment with modern capabilities |
| Connectivity | Easily add monitoring and control through multiple communication options |
| Customizable I/O | Each I/O pin is fully configurable to match application needs |
| AI-Ready | Empower machines with intelligence for the AI-driven future |
