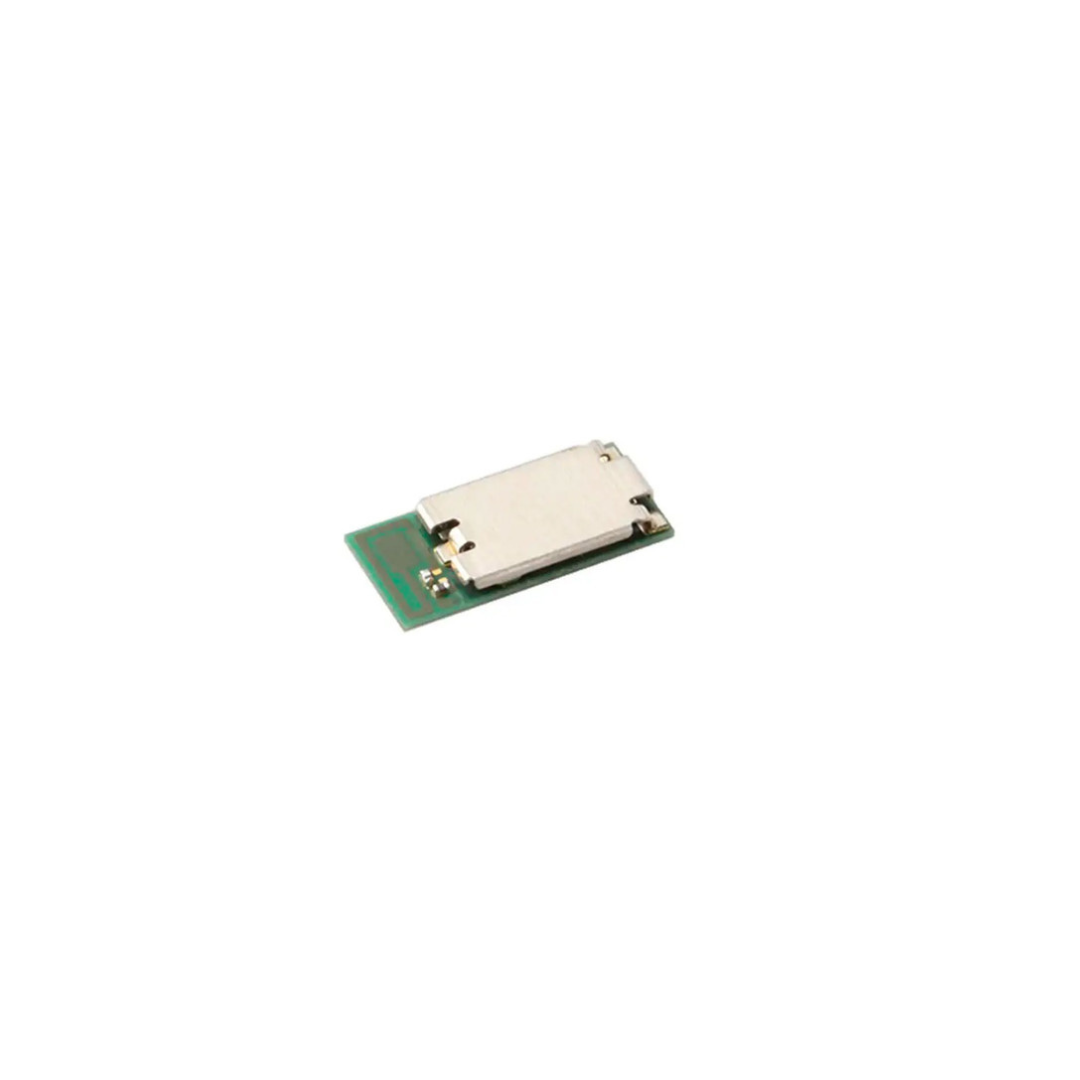

Taiyo Yuden EYSGJNAWY-WX Bluetooth Low Energy (BLE) Module
Brand: TAIYO YUDEN
Features
₹640.04 (Incl. of all taxes)
₹640.04
+ ₹640.04 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
This Bluetooth 4.2 Low Energy module by Taiyo Yuden is ideal for modern industrial applications requiring low power consumption and high scalability. It features a powerful 32-bit ARM Cortex M0 processor with 256 KB flash memory and 32 KB RAM. Operating between 2402 and 2480 MHz, it supports both slave and master single-mode Bluetooth with a high-performance ceramic antenna. The module runs on a 1.8 to 3.6V power supply and supports communication interfaces like SPI, UART, I2C, and an 8/9/10-bit ADC, enabling seamless device-to-device and device-to-PC connections.
Specifications
| Frequency Range | 2402–2480 MHz |
|---|---|
| Output Power: | +4 dBm (typical) |
| Power Supply | 1.8 – 3.6 V |
| Processor | ARM Cortex M0, 32-bit with 256 KB flash and 32 KB RAM |
| Interfaces | SPI, UART, I2C, 8/9/10-bit ADC |
