Name: DA14531 SmartBond Tiny Module Bluetooth 5.1 Cortex-M0+ 48kB RAM 1Mb Flash
Brand: DA14531 SmartBond Tiny Module Bluetooth 5.1 Cortex-M0+ 48kB RAM 1Mb Flash
Rating: 5 (1 reviews)

DA14531 SmartBond Tiny Module Bluetooth 5.1 Cortex-M0+ 48kB RAM 1Mb Flash

Brand: Dialog Semiconductor

Features

7 days service Replacement

1 Year Warranty

Pay on Delivery

Secure Transactions

₹560.5 (Incl. of all taxes)

₹459.61

+ ₹100.89 GST

Stock: Outofstock

This product is currently out of stock.

For B2B orders, contact us on

sales@elemart.com

+919569227788

About this item

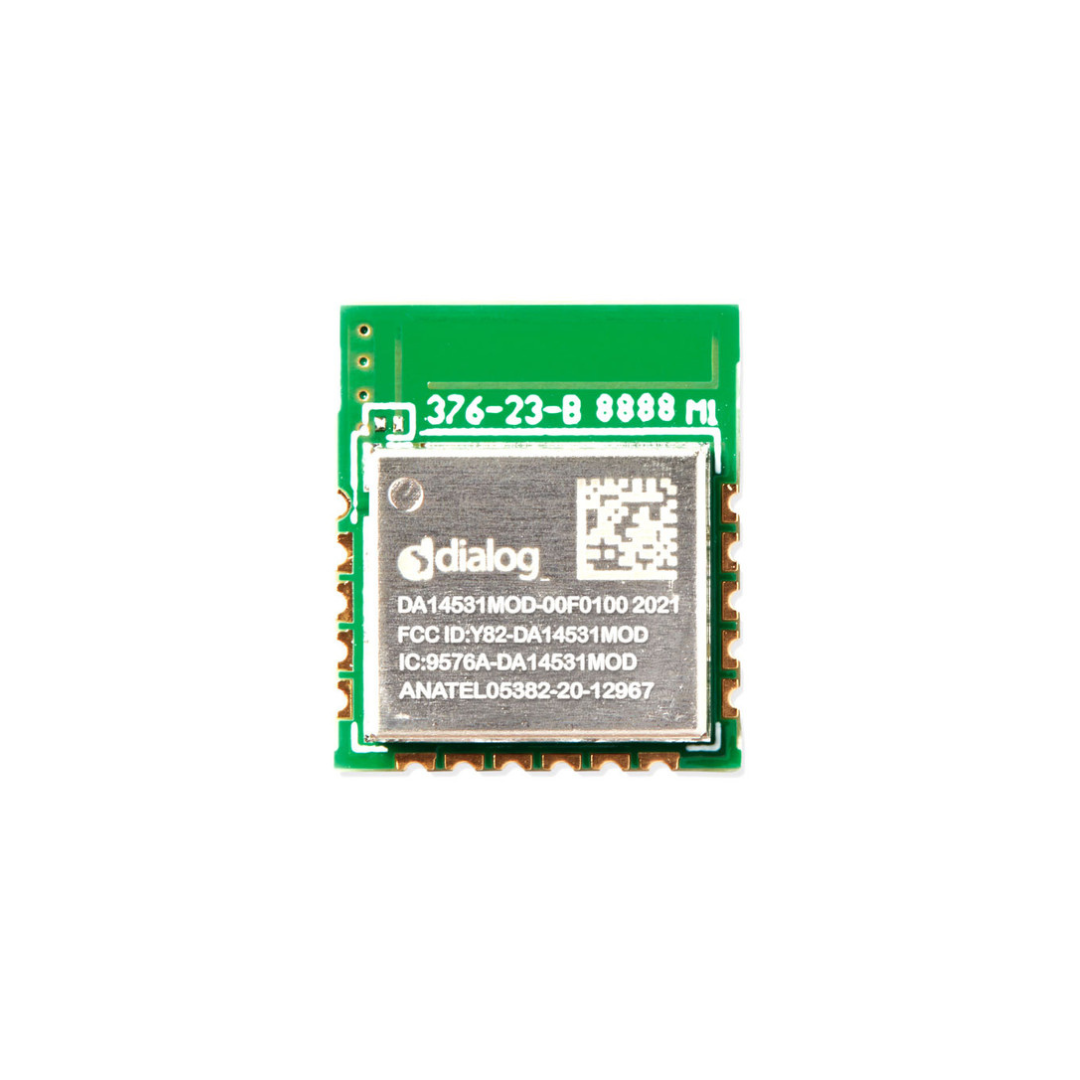

The DA14531 SmartBond TINY™ Module by Dialog Semiconductor is a compact, cost-effective Bluetooth Low Energy (BLE) solution designed to enable BLE connectivity in applications previously limited by complexity or price. Powered by a 16 MHz ARM Cortex M0+ processor, it supports Bluetooth 5.1 and up to three simultaneous connections. The module features low power consumption, robust radio performance, and an easy-to-use software stack, including configurable serial port services and codeless app design. Its small size and flexible interfaces make it ideal for expanding IoT connectivity across diverse products, accelerating development while lowering entry barriers.

Specifications

Processor	16 MHz ARM Cortex M0+
Memory	128 KB Flash, 48 KB RAM, 144 KB ROM
Bluetooth	Bluetooth 5.1, supports up to 3 connections
Power Consumption	2 mA RX, 4 mA TX (0 dBm), 1.8 µA sleep
Dimensions	12.5 mm × 14.5 mm × 2.8 mm
