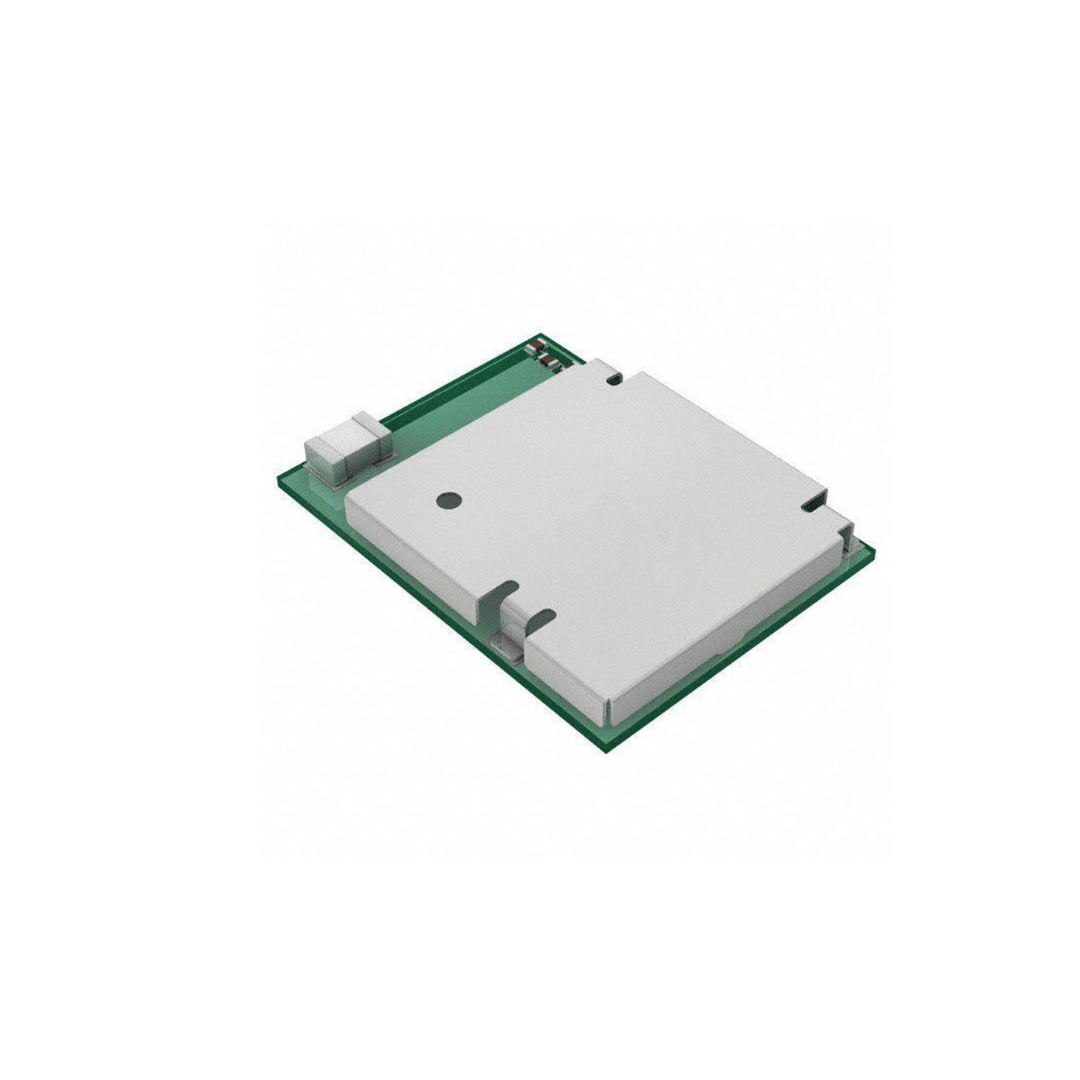

Taiyo Yuden EYSGCNAWY-1X Bluetooth Low Energy (BLE) Module
Brand: TAIYO YUDEN
Features
₹630.78 (Incl. of all taxes)
₹630.78
+ ₹630.78 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The Taiyo Yuden Bluetooth 4.2 Low Energy module is ideal for modern industrial applications requiring low power and scalability. It features a powerful 32-bit ARM Cortex M0 processor with 256 KB flash and 32 KB RAM. Operating between 2402 to 2480 MHz, it supports both master and slave single-mode options and includes a separate ceramic antenna for enhanced performance. The module operates on a 1.8 to 3.6V power supply and uses a UART interface for communication with devices and PCs. Built-in software utilities enable efficient data transfer and battery management, ensuring smart control and connectivity.
Specifications
| Frequency | 2402 to 2480 MHz |
|---|---|
| Output power | +4dBm typ. |
| Single power supply | 1.8 - 3.6V |
| Interface | UART |
| Outline | 9.6 x 12.9 x 2.0 mm with 1mm pad pitch |
